SuperK CONNECT
SuperK CONNECT
The CONNECT is a single mode fiber coupling device which can terminate to a
collimator or either FC /PC or FC/APC connectors. As a fiber deliver system,
CONNECT can be used with the laser or its accessories. It combines high
coupling efficiency with power handling up to 500 mW over a spectrum from 400
to 2000 nm. It can be disconnected and reconnected to a photonic system
without needing to realign the coupling. The specific CONNECT model used is
dependent on the emission characteristics of the application. Table 24 lists the
models available and their specifications.
A general view of the CONNECT accessory showing the location of the collimator
input is shown in Figure 70.

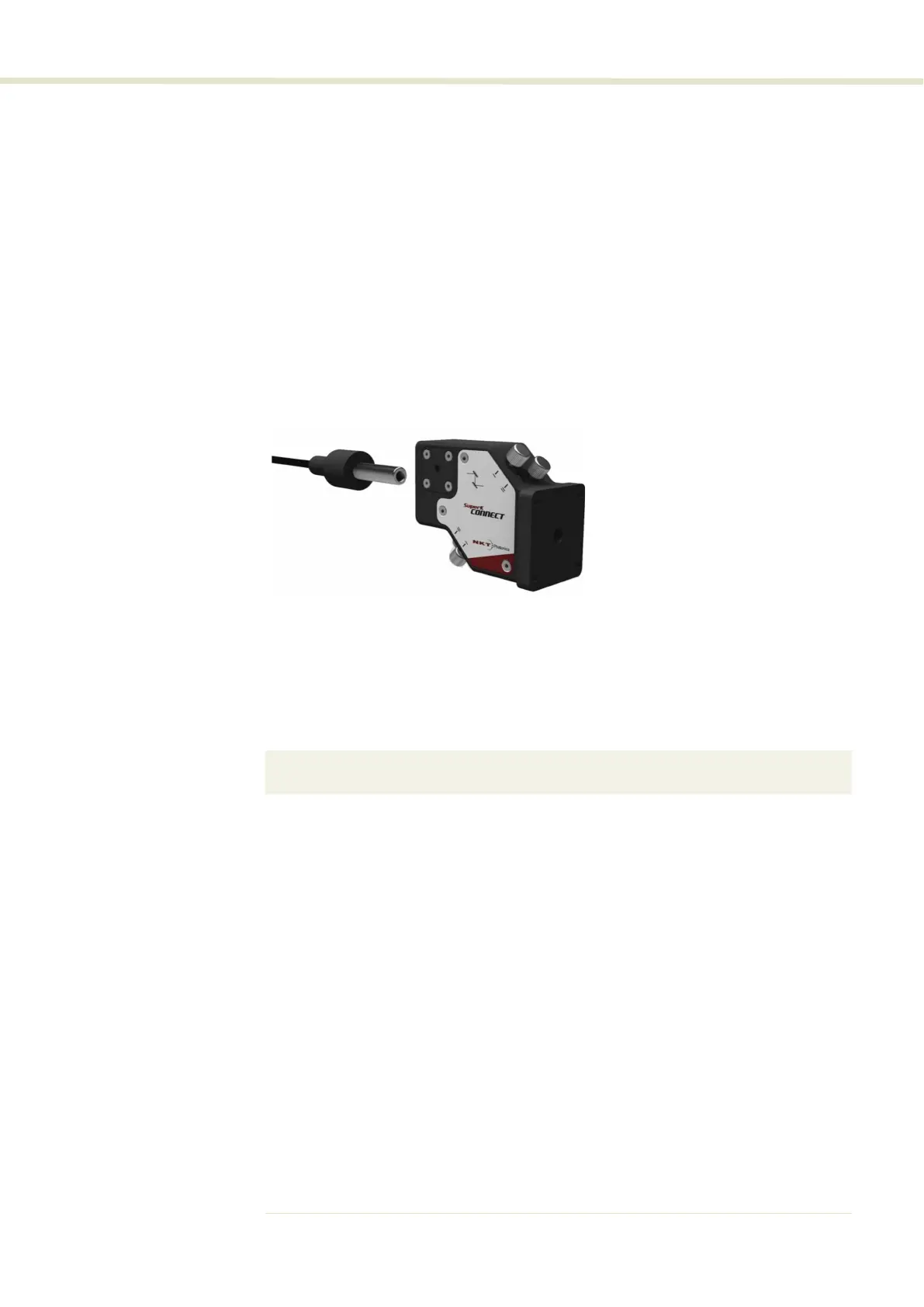

Figure 70 SuperK CONNECT
CONNECT specifications
The bandpass filter specifications of the CONNECT are shown in Table 24.
Table 24 Fiber delivery specifications
Model Single Mode
Cutoff Wavelength
Transmission Typical Peak
Transmission
FD1-PM 425±25 nm >60% (425-775 nm) 75% @ 650 nm
FD2 450±25 nm >60% (450-775 nm) 80% @ 650 nm
FD3 630±20 nm >60% (630-1100 nm) 80% @ 800 nm
FD3-PM 580±40 >65% (580-950 nm) 85% @ 650 nm
FD4 730±30 nm >70% (730-1150 nm) 80% @ 950 nm
FD4-PM 710±60 nm >65% (710-1100 nm) 70% @ 900 nm
FD5 930±40 nm >50% (930-1550 nm) 65% @ 1350 nm
FD5-PM 900±70 nm >50% (900-1500 nm) 60% @ 1200 nm
FD6 1260±40 nm >30% (1260-1900 nm) 40% @ 1650 nm
FD6-PM 1200±70 nm >30% (1200-1900 nm) 35% @ 1700 nm
FD7 400 nm >70% (450-1050 nm) 80% @ 750 nm
FD7-PM 400 nm >70% (450-950 nm) 80% @ 600 nm
FD8 800 nm >40% (800-1700 nm) 55% @ 1300 nm
FD9 500 nm >50% (500-1300 nm) 60% @ 900 nm
FD10 NA >80% (500-1100 nm) 90% @ 750 nm
