Front panel controls
26
Front panel controls
The front panel features are highlighted in Figure 5. The panel includes user
controls and a display to operate the laser.

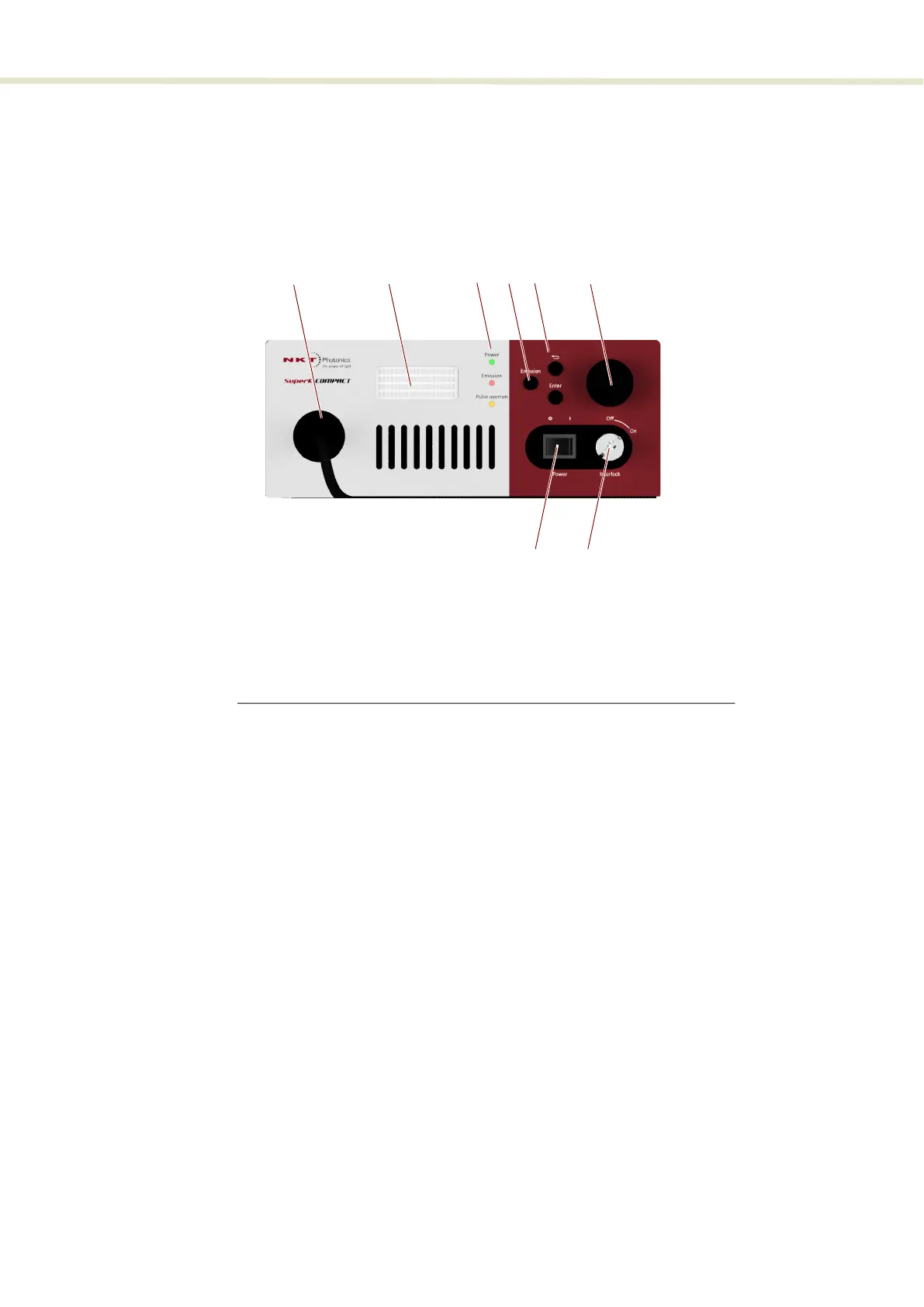

Figure 5 Front panel features
Optical output fiber Laser output – This is a standard (FC connector) or armored fiber cord
(collimator)– see “Optical output” on page 22 for further details.
LCD display menu The LCD display menu provides an interactive menu to operate the laser in
conjunction with the operation dial and return/enter buttons. The menu items
shown on the display included laser status, configuration and operation.
Status LEDs Power LED
Indicates AC mains power is connected and the laser is on when lit ON Green.
Emission LED
Indicates there is laser emission when lit ON Red.
Emission button Button used to enable or disable laser emission.
Navigation buttons Return button
This button confirms and enters settings made with the operation dial.
1 Optical output fiber (laser aperture) 5 Navigation buttons
2 LCD display menu 6 Selection dial
3 Status LEDs 7 ON/OFF switch
4 Emission button 8 Key Switch
1
3
2
4 5
8
6
7
