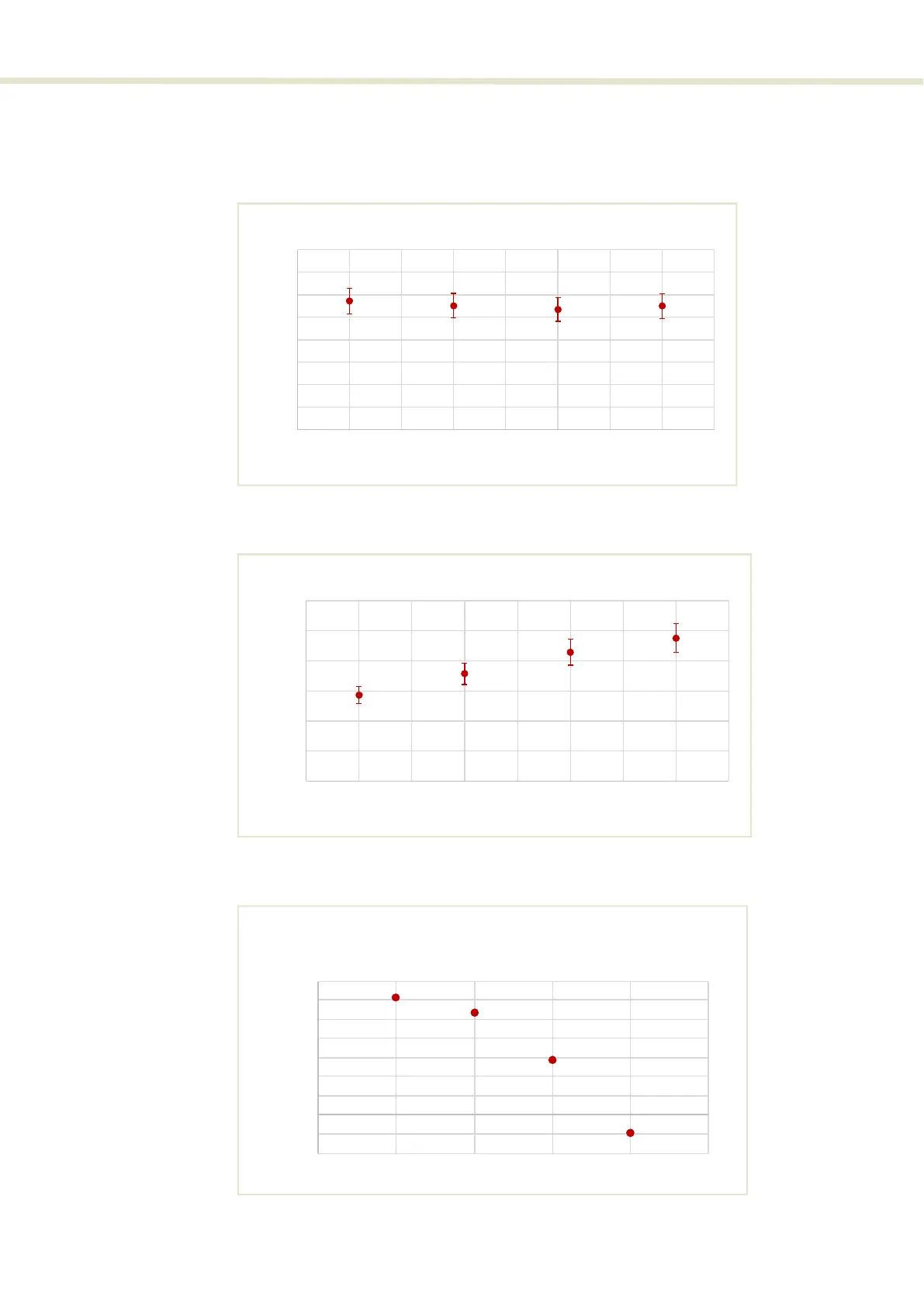

Beam diameters in the visible range
114
Beam diameters in the visible range
Full angle beam
divergence θ
1
Figure 73 Full angle beam divergence θ
1
Beam diameter at
waist location W
01
Figure 74 Beam diameter at waist location W
01
Waist location from
collimator Z
01
Figure 75 Waist location from collimator collar face Z
01
0
0.2
0.4
0.6
0.8
1
1.2
1.4
1.6
450 500 550 600 650 700 750 800 850
FullAngleDivergence[mrad]
Wavelength[nm]
SuperKCompactCollimatorDivergence
0
200
400
600
800
1000
1200
450 500 550 600 650 700 750 800 850
Waistwidth[µm]
Wavelength[nm]
SuperKCompactCollimatorwaistwidth
‐100
‐50
0
50
100
150
200
250
300
350
400 500 600 700 800 900
Waistlocation[mm]
