NKT Photonics SuperK COMPACT User Manual

Menu items
42
3. Press the enter button to enter the Coax trig level setting menu.
4. One position of the trigger detection voltage level digits flashes. This
indicates the selection dial can modify them.
5. Turn the selection dial to set the digit(s).
6. Press enter to select another digit position and repeat step 4 and 5 to modify
any remaining digits of the voltage level.
7. Press the return button twice to return to the top level menu.

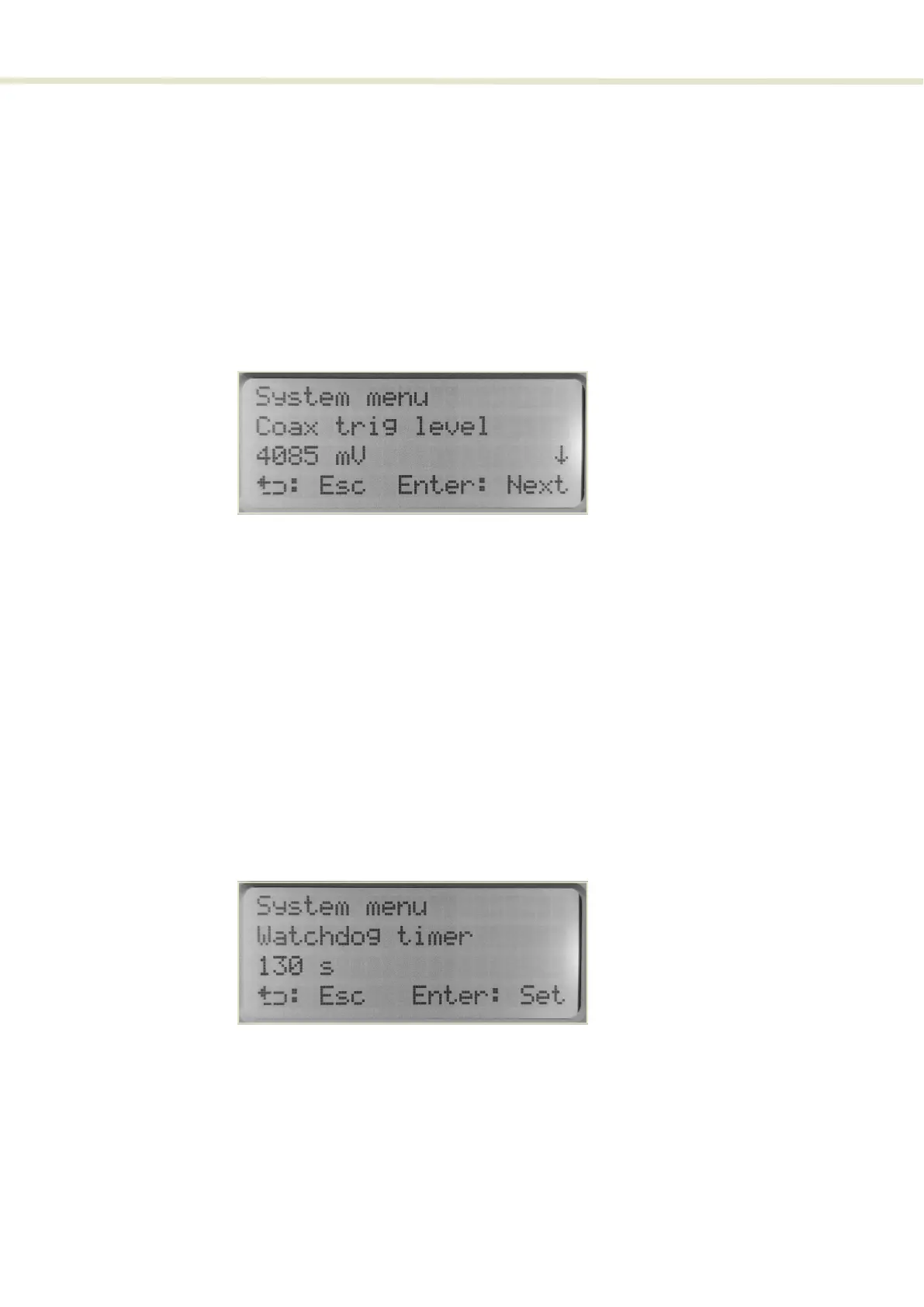

Figure 18 Coax trig level sub-menu
Watchdog timer The watchdog timer disables emission when it expires. The counter starts to
count down when the laser is disconnected from CONTROL. To set the
watchdog timer:
1. Press the enter button to enter the laser’s sub-menus.
2. Turn the selection dial until the menu displays System menu - Watchdog
timer.
3. Press the enter button to enter the Watchdog timer setting menu.
4. Turn the selection dial to set the digits from OFF, 1-255 seconds.
5. Press the return button twice to return to the top level menu.
Figure 19 Watchdog timer sub-menu
