3. Press the enter button to enter the Power % setting menu.
4. Turn the selection dial to set the power level.
5. Press the return button twice to return to the top level menu.
Note: The laser’s frequency is directly proportional to its output power and hence
automatically adjusts as the power level setting is changed.

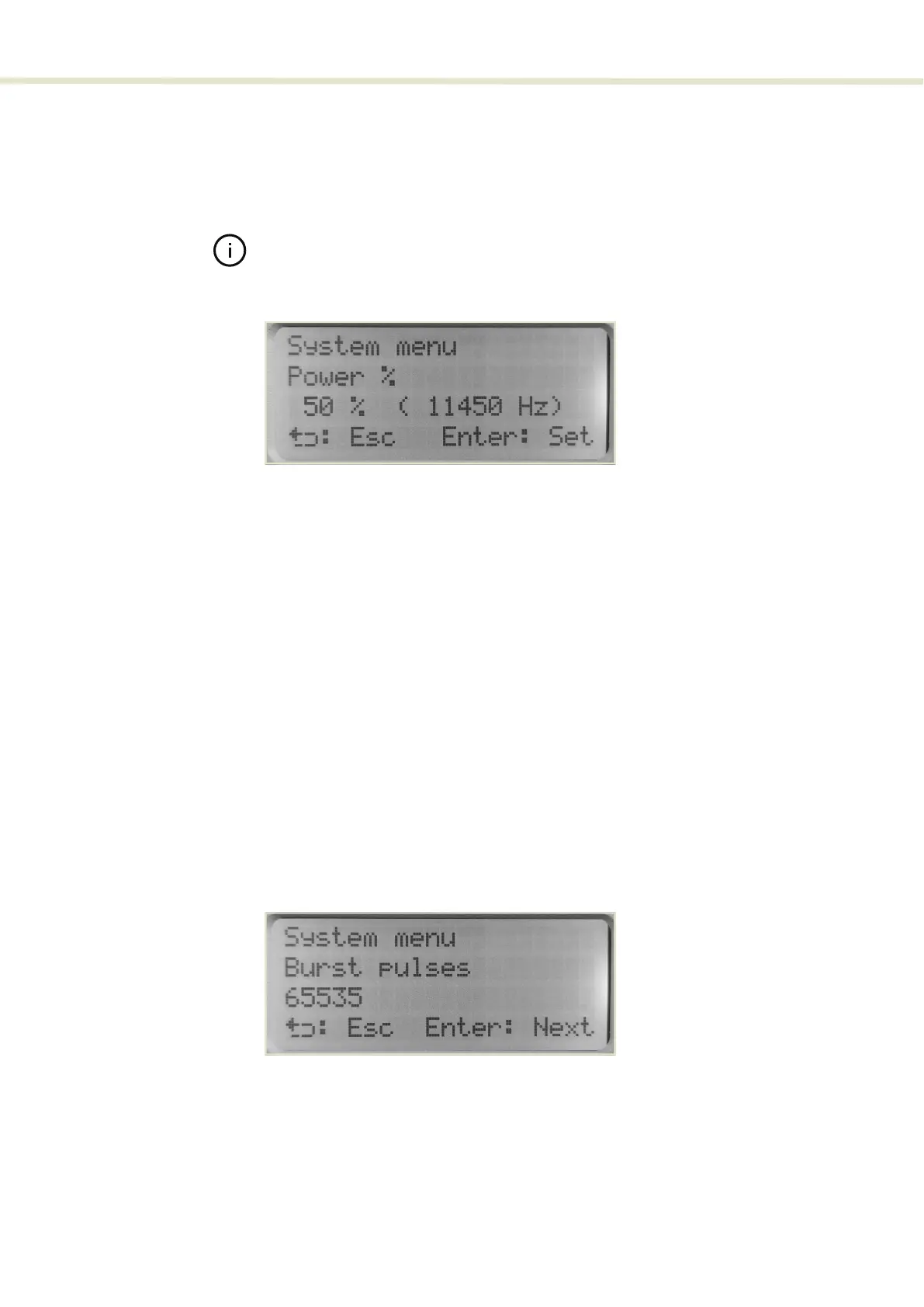

Figure 16 Power sub-menu
Burst pulses To set the number of burst pulses emitted when a trigger signal detects a leading
edge:
1. Press the enter button to enter the laser’s sub-menus.
2. Turn the selection dial until the menu displays System menu - Burst pulses
3. Press the enter button to enter the Burst pulses setting menu.
4. One position of the number of pulses in a burst digits flashes. This indicates
the selection dial can modify them.
5. Turn the selection dial to set the digit(s).
6. Press enter to select another digit position and repeat step 4 and 5 to modify
any remaining digits of the number of pulses in the burst.
7. Press the return button twice to return to the top level menu.
Figure 17 Burst pulses sub-menul
Coax trig level To set the voltage level at the Coax trig input that triggers emission of a pulse or
burst:
1. Press the enter button to enter the laser’s sub-menus.
2. Turn the selection dial until the menu displays System menu - Coax trig level
To Next Page
