8-2. Sensor Cable Connection
The VS-12PB and ABSOCODER sensor connection is described below.
The special NSD sensor cable must be used for this purpose.
The maximum sensor cable length varies according to the ABSOCODER sensor and cable models being used.
(Refer to section 4-2. for details.)

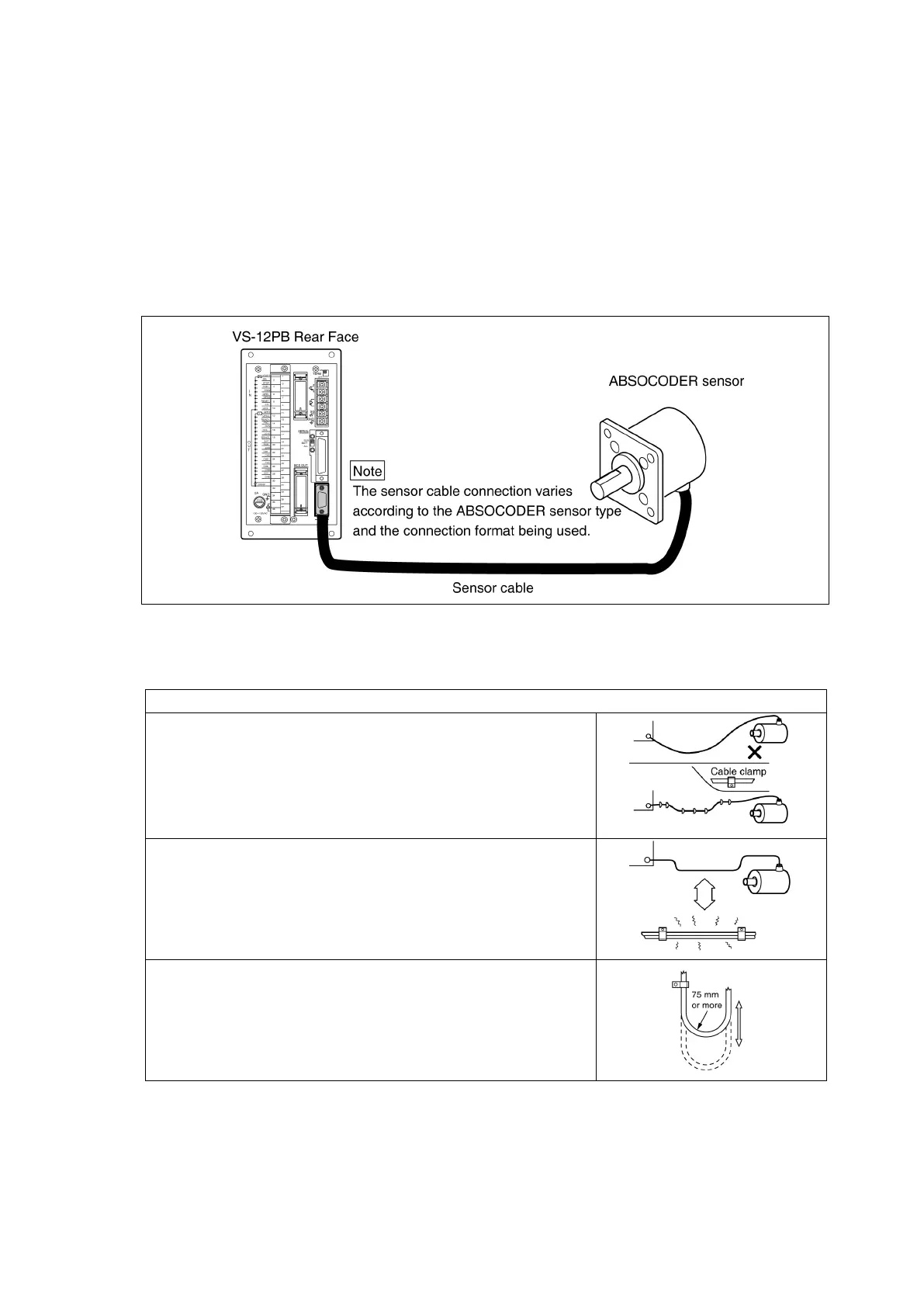

●Sensor Cable Connection Diagram
●Wiring Precautions
The sensor cable should be clamped as shown at right to prevent excessive
tension from being applied to the cable connectors.
The sensor cable should be located as far as possible from power lines and
other lines which generate a high level of electrical noise.
If the cable movement (when used at moving component) is such that it is bent
into a U-shape, a robotic cable should be used.
The bend radius should never be less than 75 mm.
