3-2. Limit Switch Output Function
With this function, the machine’s travel amount is detected by the ABSOCODER sensor, and external ON/OFF
signal outputs are used in place of conventional limit switches.

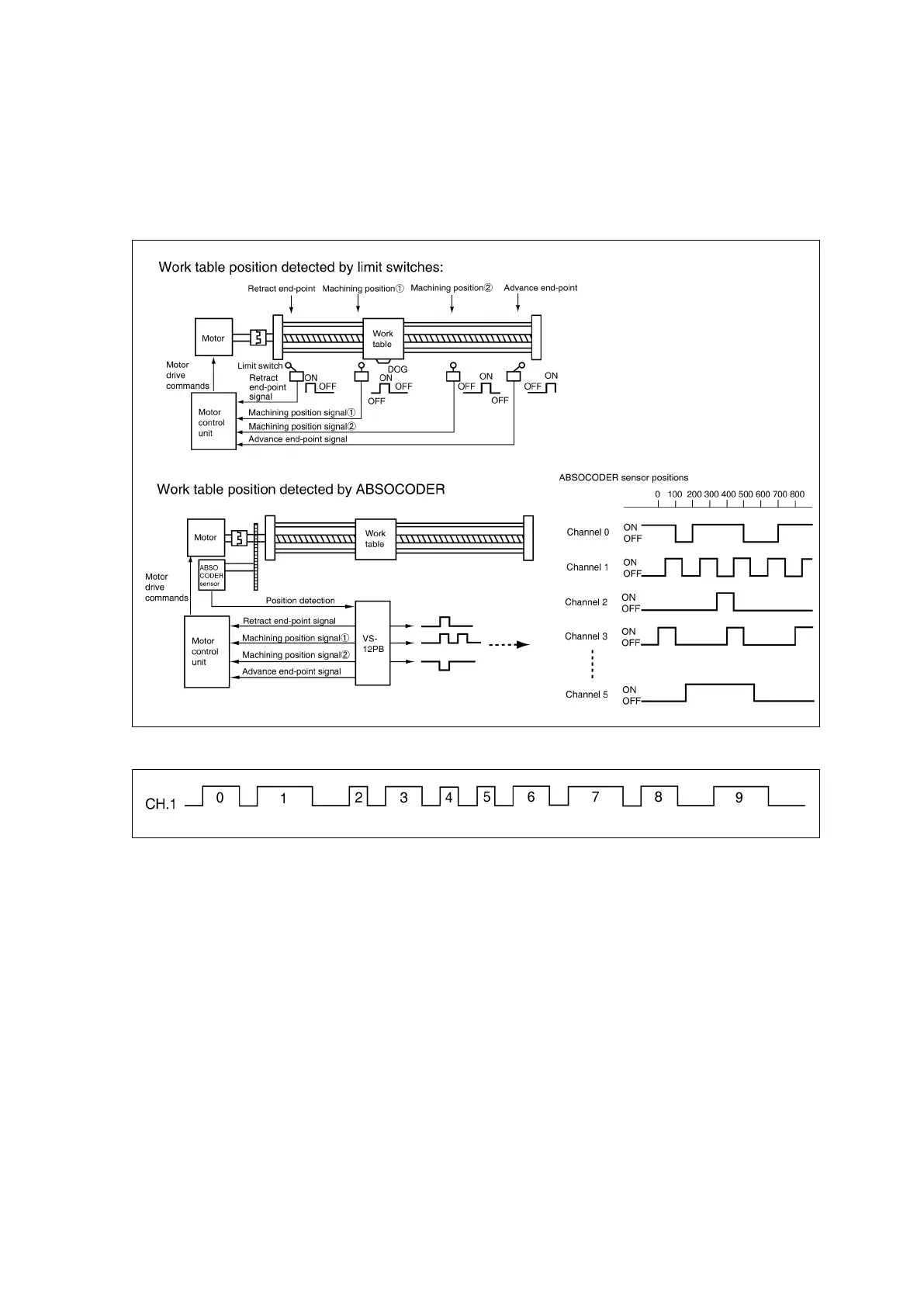

●Limit Switch Output Example
With the VS-12PB, up to 10 ON / OFF outputs per channel are possible.
3-2-1. Protected Switch Function
This function prevents limit switch output ON/OFF settings from being changed by the usual method. The
protected switch settings can be changed in the same manner as regular switches if “0” is specified at the
“number of protected switches” parameter setting item.
