9. Operation
This section described the VS-12PB operation procedures.
9-1. Before Beginning Operation
The control panel nomenclature and the operation sequence are described below.
9-1-1. Control Panel Nomenclature
A description of the VS-12PB control panel is provided below. Be sure to study this information carefully before
attempting operation.

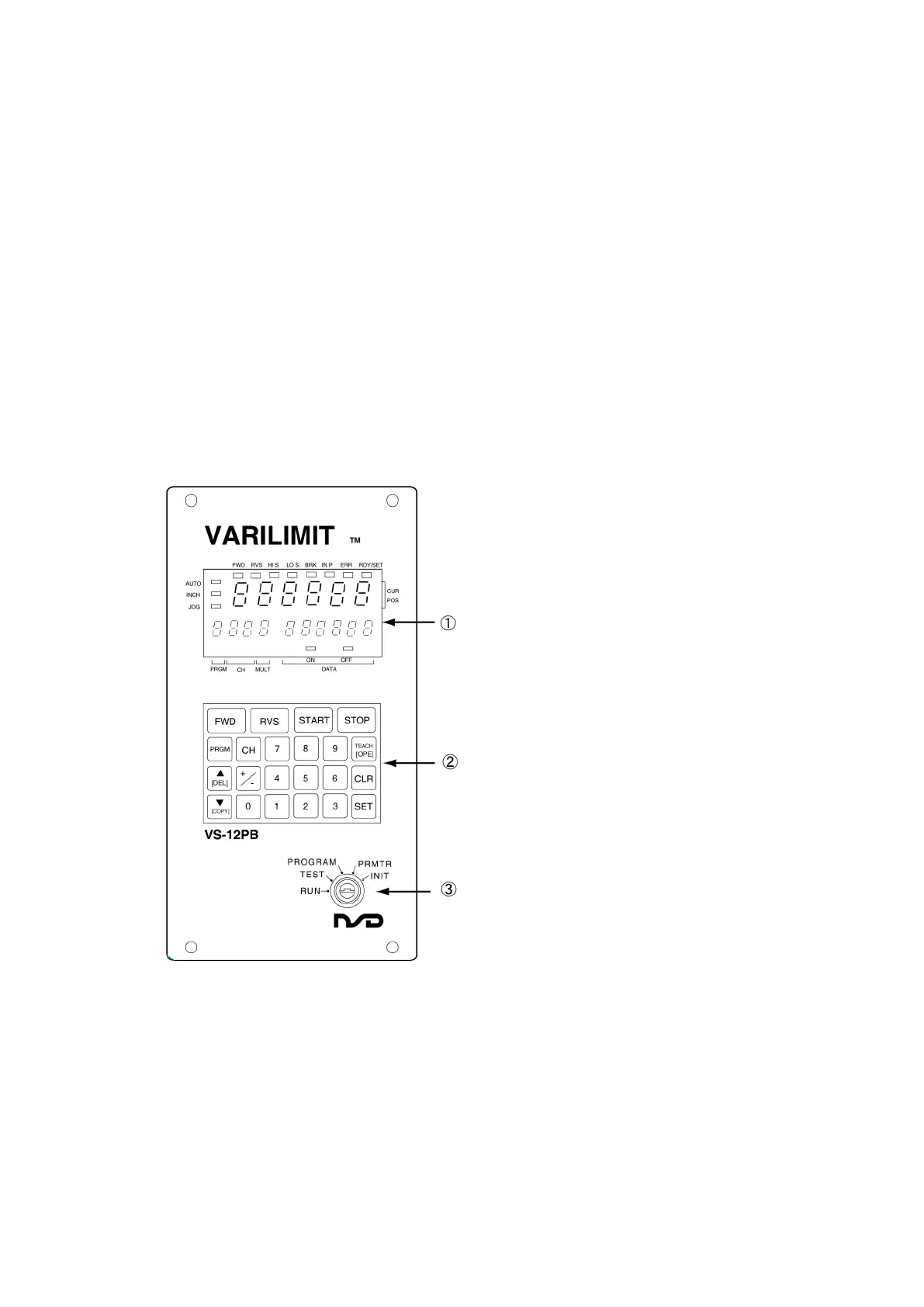

The VS-12PB control panel consists of 3 main areas, as shown below.
① Display Area
: The setting values, current position, and operation
status is displayed here.
② Control keys
: These keys are used to designate settings, and to
execute manual operation.
③ Mode key-switch
: This switch is used to designate the desired
operation mode.
Detailed descriptions of the above items are given in the following pages.
