6. Ordering Information
Information required for selecting equipment models, etc., is provided below.

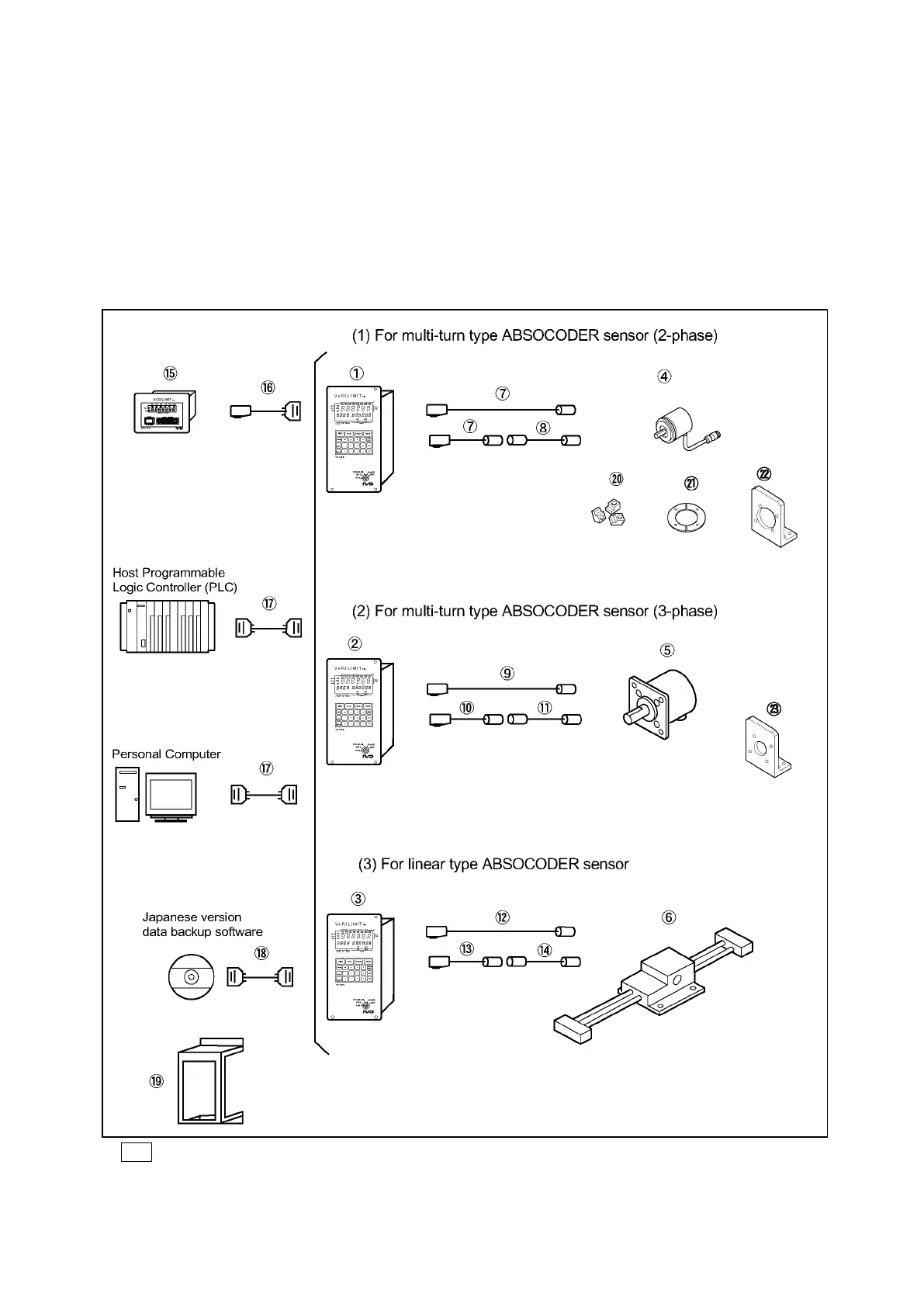

6-1. Configuration & Combinations
The basic VS-12PB configuration and combinations are shown below. Items ① to ⑲ in the figure below should
be selected from the Ordering List on the following page.
Note
The VS-12PB-□D “external BCD input/output” function cannot be used with the VS-T12 (VS-T12B) to designate
target stop positions settings. Either the “external BCD input/output” function or the VS-T12 (VS-T12B) must be
used.
