● 8-1 ●
8. Wiring
8-1. Terminal Board & Connector Connection

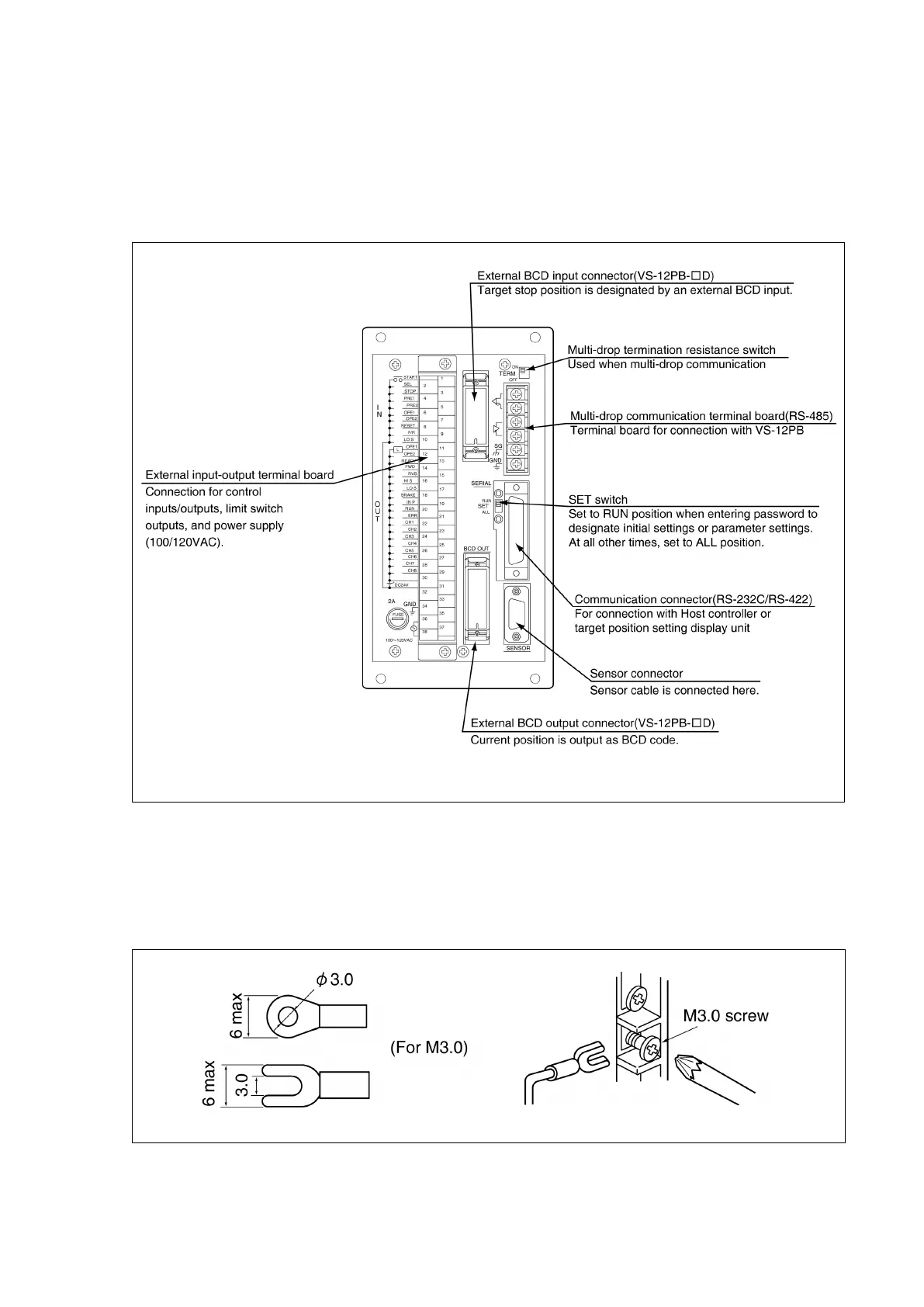

●The VS-12PB terminal and connector names (rear face)
●Crimp Type Terminal Connection
Crimp type terminals must satisfy the following requirements.
- An M3.0 screw must be used. The crimp terminal type shown below must be used.
