● 5-1 ●

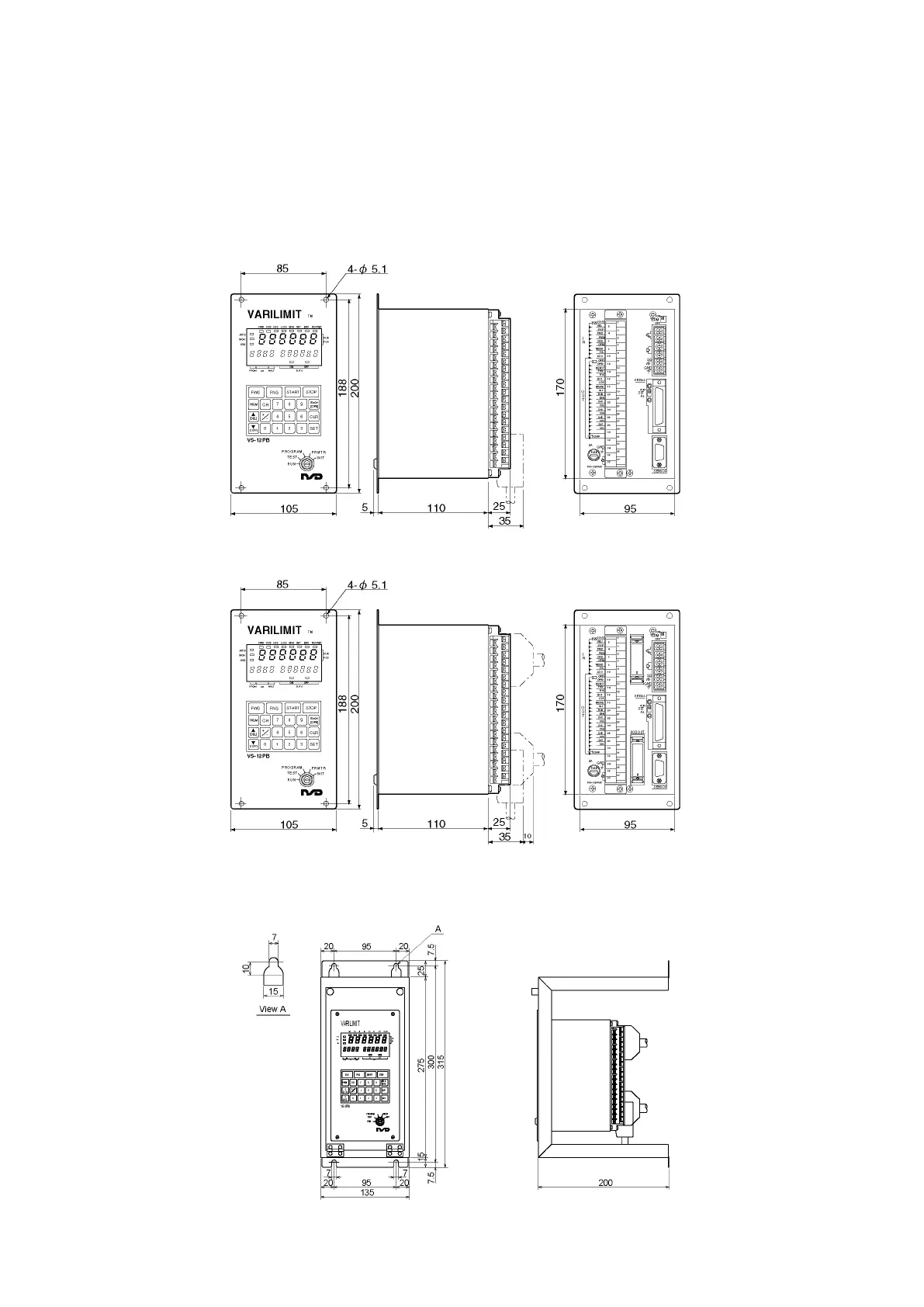

5. Outer Dimensions
5-1. VS-12PB Controller
The VS-12PB outer dimensions are as shown below.
□: Sensor code entered here.
●VS-12PB-□ Units: mm
●VS-12PB-□D (With external BCD input / output function)
○VS-K12 Option
(Mount fixture for control board)
