NSD VARILIMIT VS-12PB User Manual

● 8-3 ●
8-1-2. Control I/O Signals

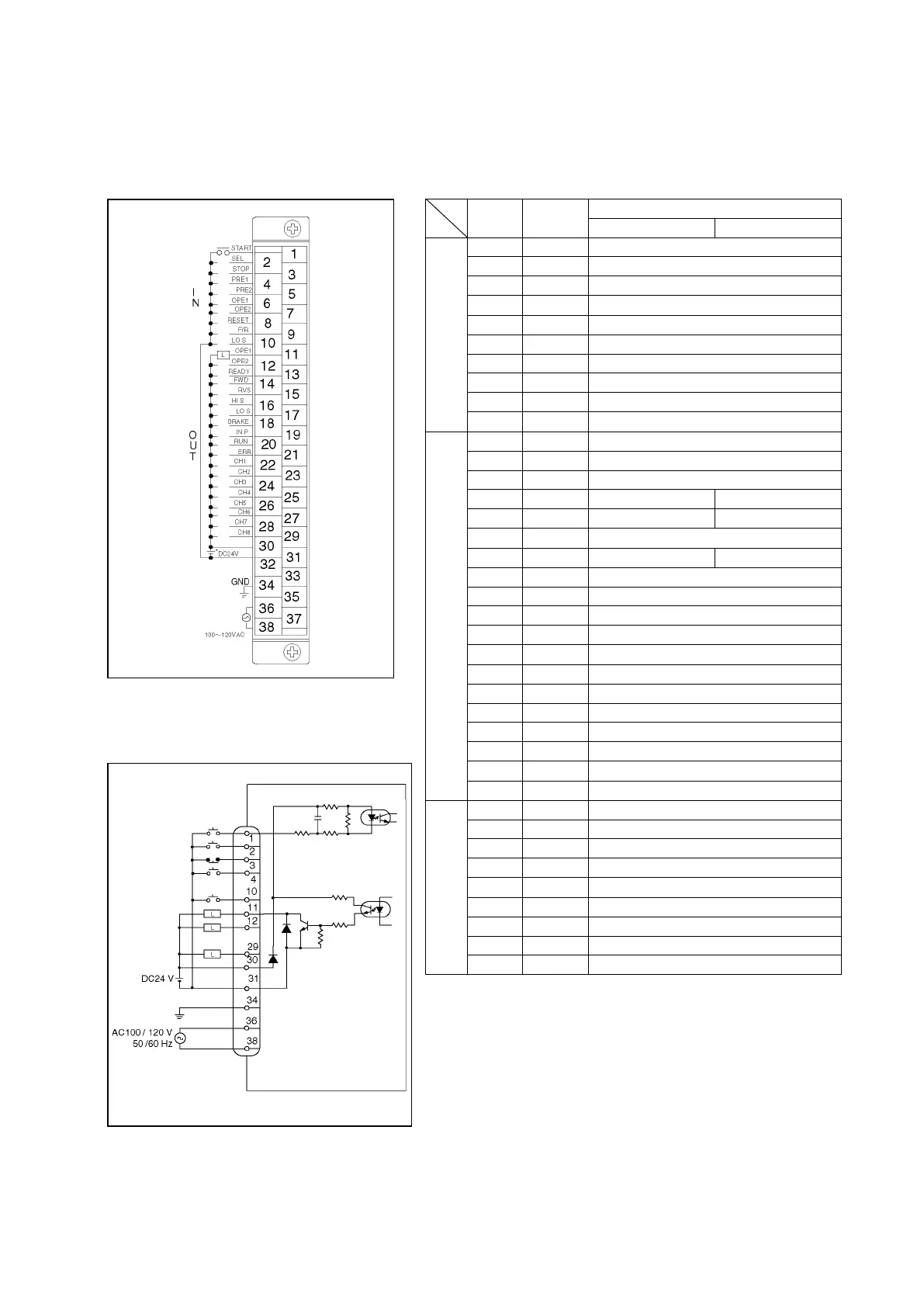

●Terminal board wiring diagram ●Terminal Names
●Circuit Diagram
Terminal
No.
Name
Signal Name
Speed-Switching Format
Speed-Stepping Format
Input
1
START
Start
2
SEL
Target stop position select
3
STOP
Stop
4
PRE1
PRE input 1
5
PRE2
PRE input 2
6
OPE1
Operation selection 1
7
OPE2
Operation selection 2
8
RESET
Error cancel
9
F/R
FWD / RVS selection
10
LOS
Low-speed
Output
11
OPE1
Operation selection answerback 1
12
OPE2
Operation selection answerback 2
13
READY
System ready
14
FWD
Forward
Forward, low-speed
15
RVS
Reverse
Reverse, low-speed
16
HIS
High-speed
17
LOS
Low-speed
Medium-speed
18
BRAKE
Brake release
19
INP
In-Position
20
RUN
Positioning in progress
21
ERR
Operation error
22
CH.1
Limit SW channel 1
23
CH.2
Limit SW channel 2
24
CH.3
Limit SW channel 3
25
CH.4
Limit SW channel 4
26
CH.5
Limit SW channel 5
27
CH.6
Limit SW channel 6
28
CH.7
Limit SW channel 7
29
CH.8
Limit SW channel 8
Power/
Ground
30
DC24V+
24 VDC(+) power supply for I/O
31
DC24V-
24 VDC(-) power supply for I/O
32
－
Vacant
33
－
Vacant
34
GND
Ground
35
－
Vacant
36
ACH
100 / 120 VAC power supply
37
－
Vacant
38
ACL
100 / 120 VAC power supply
