3-1-5. Starting Operation From Inside STOP Zone
When the STOP zone is entered, the motor control signals for the positioning operation are switched OFF, and
the brake is applied. With the VS-12PB unit, it is possible to start operation from inside the STOP zone if so
designated at parameter No.48.
The procedure for starting operation from inside the STOP zone is as shown below.

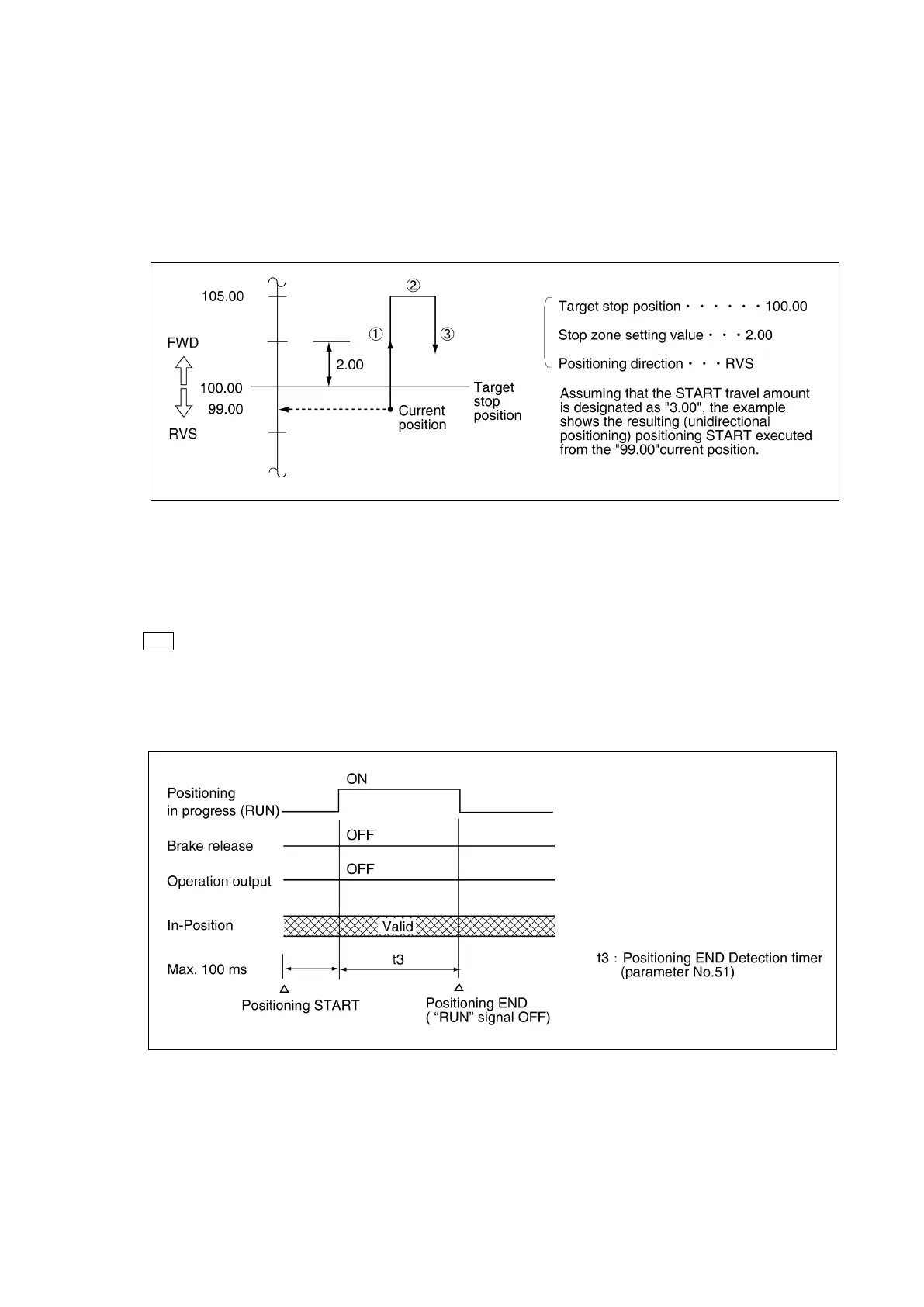

① Move the current position in the opposite direction from the parameter-designated positioning direction, by the
amount of the [ stop zone] + [START travel amount].
② Stop movement at that position.
③ Execute the positioning operation again for the target stop position in question.
Note
1. For bidirectional positioning, a directional determination (FORWARD or REVERSE) is required at step ①
above, depending on the current position when the START occurs.
2. Operation will occur as shown below if the parameter No.48 setting is designated as “0” (Start From STOP
Zone Disabled).
