3-1-3. Speed-Switching Format
With the Speed-Switching format, the speed switching signals (high-speed and low-speed) operate independently,
with the high-speed signal being ON during high-speed operation, and low-speed signal being ON during lowspeed
operation.

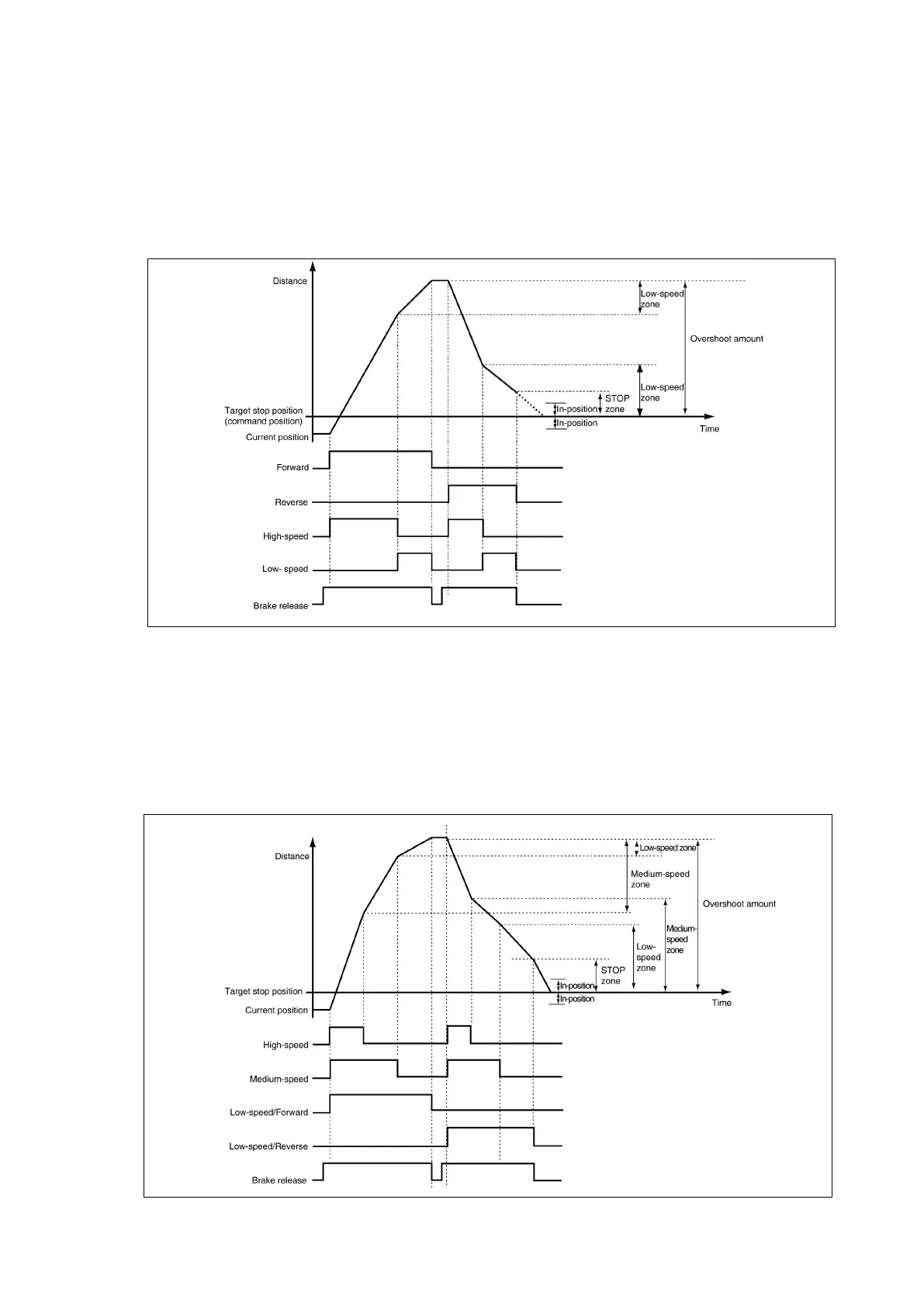

●Control Timing (For U-Turn Positioning)
3-1-4. Speed-Stepping Format
With the Speed-stepping format, the high-speed, medium-speed, and low-speed signals do not operate
independently.
Instead, they are combined to produce a stepped speed switching output.
●Control Timing (For U-Turn Positioning)
