7-2-2. ABSOCODER Sensor Installation
For the installation conditions and precautions for ABSOCODER sensor, refer to ABSOCODER
Handling Guide (NSP-99022). This manual is available upon request.
Note

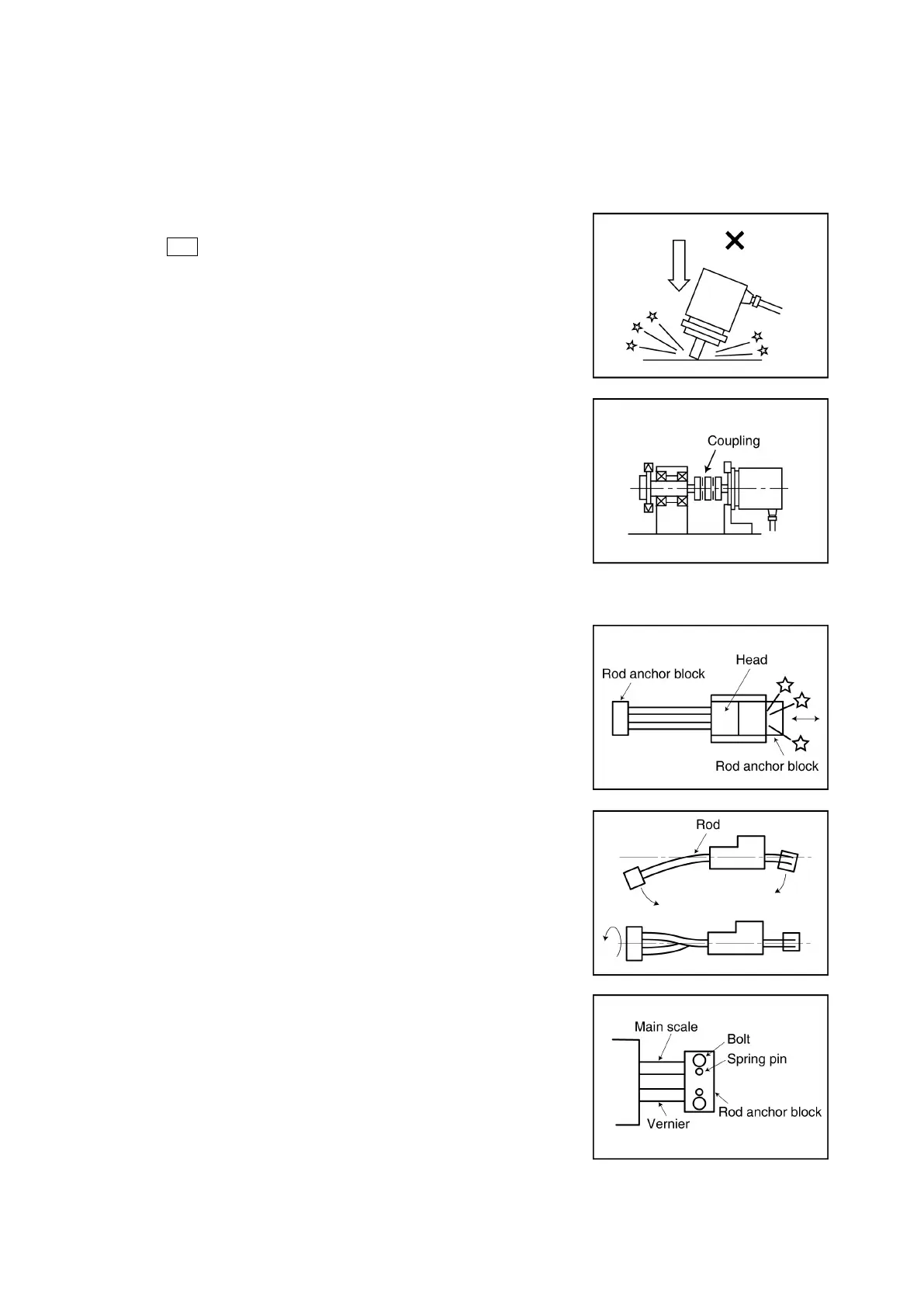

(1) Installation of rotary type (MRE) ABSOCODER sensor
Do not subject the sensor to excessive shocks and
unbalanced loads.
If connected to a shaft, a coupling format should be used.
* Contact your NSD representative for the selection of
coupling device.
(2) Installation of linear type (VLS) ABSOCODER sensor
Avoid a configuration in which an impact occurs between
the rod anchor blocks and the head.
Avoid bending or twisting the sensor rod.
Never remove or loosen the bolts and spring pins at
the rod anchor blocks.
* The main scale and vernier have been positioned relative to
the rod anchor blocks.
Therefore if the blocks are removed,normal operation will
be impossible.
