7-2
7-2. Installation Condition & Precautions
The installation conditions and precautions for each of the system components are described in this section.
7-2-1. Controller Installation
When installing the VS-12PB controller, the following conditions and precautions should be observed.
Installation Site
The following conditions should be satisfied:
Avoid sites where the unit is exposed to direct sunlight.
The ambient temperature should never exceed a 0 - 55
°C range.
The ambient humidity should never exceed a 20 - 90% RH range.
Do not install the unit in areas where condensation is likely to occur
( high humidity with extreme temperature changes).
Avoid sites where dust is excessive.
Do not install in areas with an excessive amount of salt and / or metal chips.
Do not install in areas where flammable and / or corrosive gases are present.
Avoid areas where splashing water, oil, or chemicals is likely to occur.
Avoid areas where vibration and shooks are excessive.
Installation Precautions
The unit should firmly secured by 4 bolts.
Noise prevention measures should be taken.
- Install as far as possible from high-voltage lines and power lines.
- Mount on a grounded metal plate.

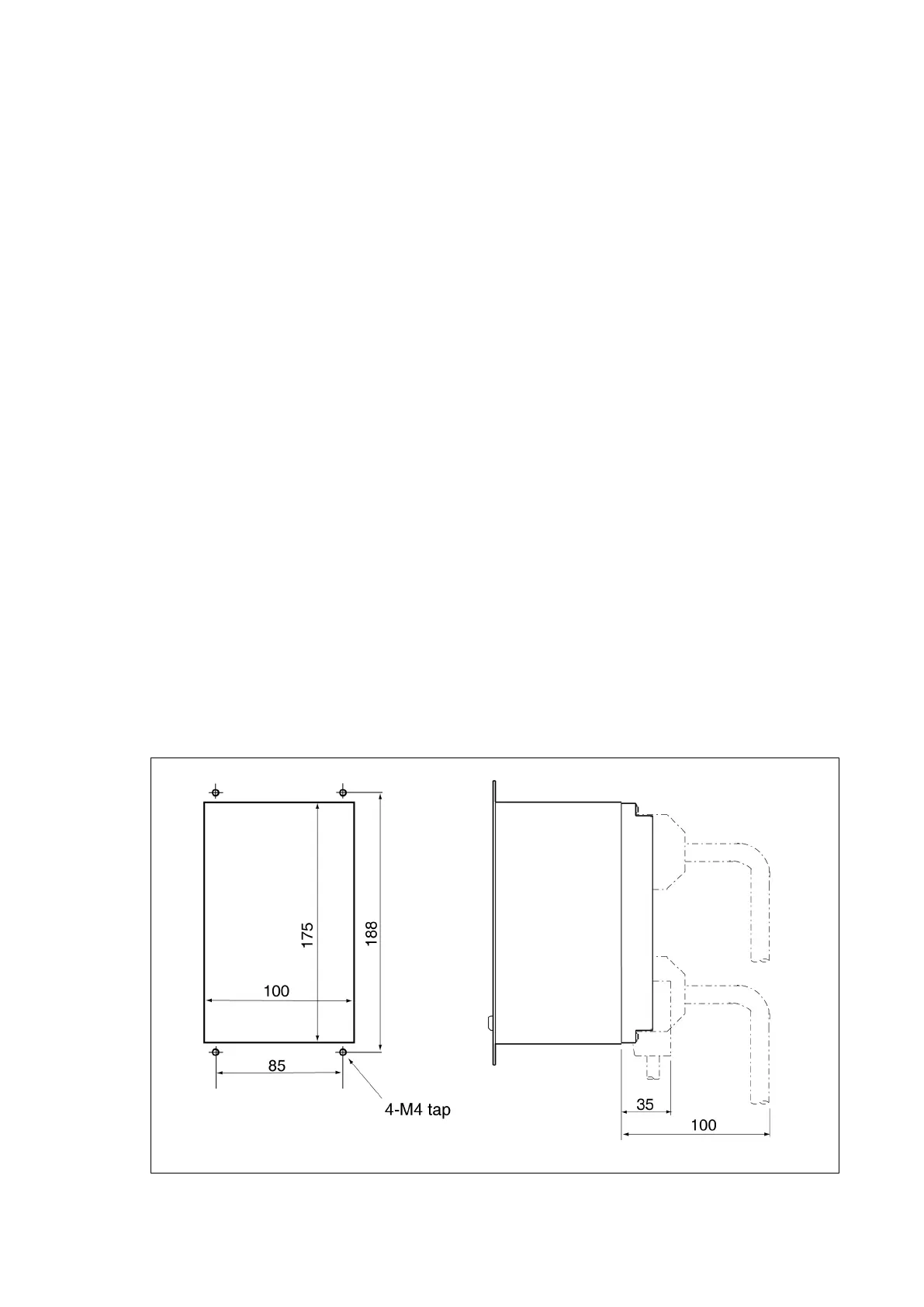

Installation Reference Diagram
