NSD VARILIMIT VS-12PB User Manual

● 9-16 ●

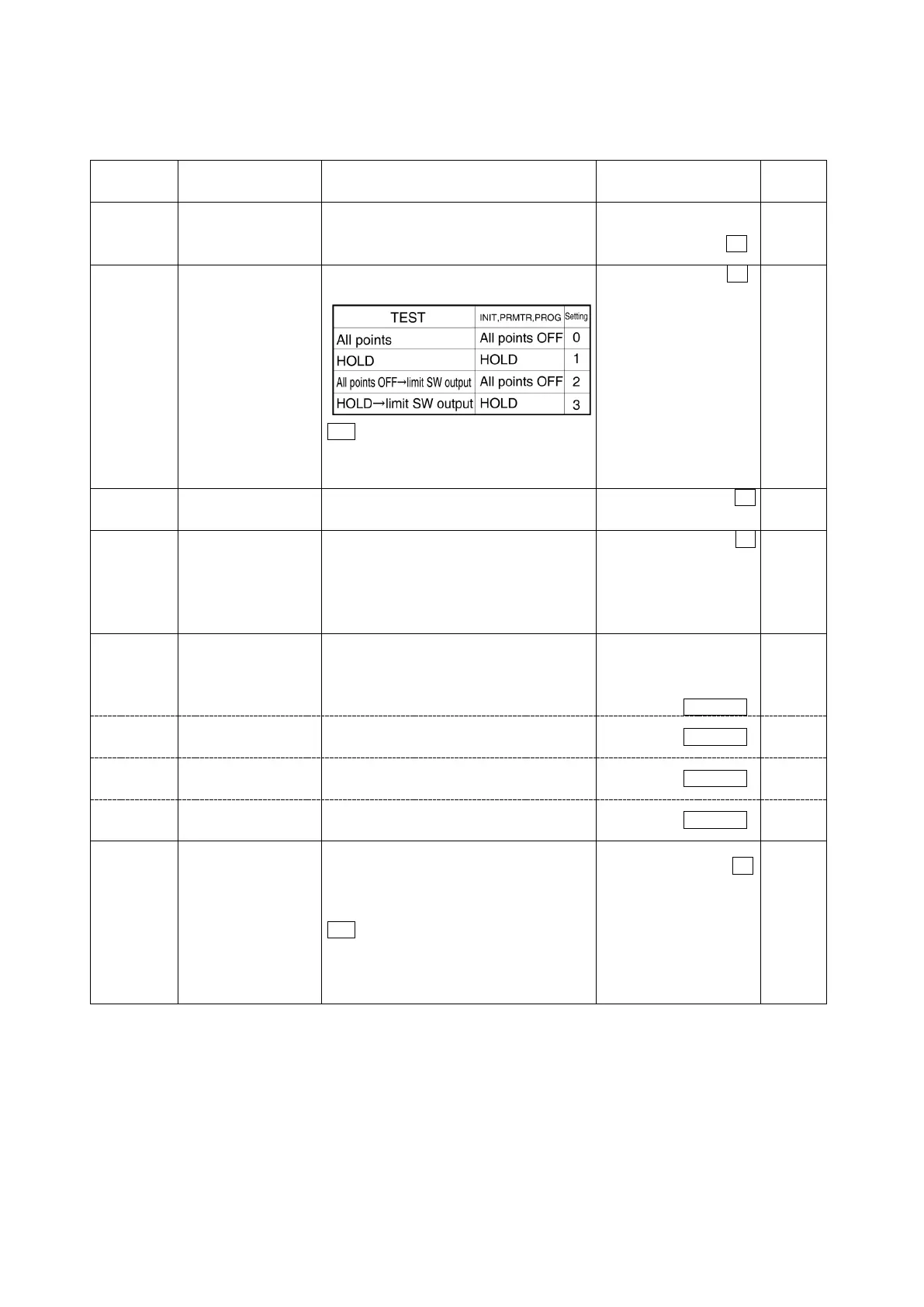

Parameter
No.
Item Description Setting Data
Setting
Value
67
Number of protected
switches
Designates the number of “protected” channels.
If no channels are to be protected, designate a
setting of “0”.
Number of channels:
0 to 8
0
68
Limit SW output status
selection
Designates the limit SW statuses for the TEST,
PROGRAM, PRMTR, and INIT modes.
Note
When a setting of “2” or “3” is designated,
limit SW outputs can be designated by pressing
the [SET] key in the TEST mode.
0
1
2
3
69
Off-line output status
selection
Designates the switch output status when the
RUN mode is off-line.
All points OFF: 0
HOLD: 1
70
Current position PRE
function selection
Determines whether or not the “current position
preset” and “machine position confirmation”
functions are to be used. The “machine position
confirmation” function uses preset input 2 as the
machine position confirmation input. Preset input
1 is used as the “current position preset” function.
None: 0
Current position PRE
function:
1
Machine position check:
2
71
CW Current pos. PRE1
Designates the preset value for input 1 during
CW travel (current position preset value).
Setting range:
[Min.current pos. value to
(Min. current pos. value +
scale length-1)]
0
72
CCW Current pos. PRE1
Designates the preset value for input 1 during
CCW travel
0
73
CW Current pos. PRE2
Designates the preset value for input 2 during
CW travel
0
74
CCW Current pos. PRE2
Designates the preset value for input 2 during
CCW travel
0
75
Current pos.output time
Designate the current pos. output and latch pulse
timing.
[time setting] n × 4 ms
n = 1 to 64
Note
Setting range:
[0 to 64] 1
A setting of “0”should be designated if the
current pos. output is to be updated by a DTC
input. Refer to section 8-1-
3 for details regarding
the DTC input.
