8.6 Sequence Program Sample

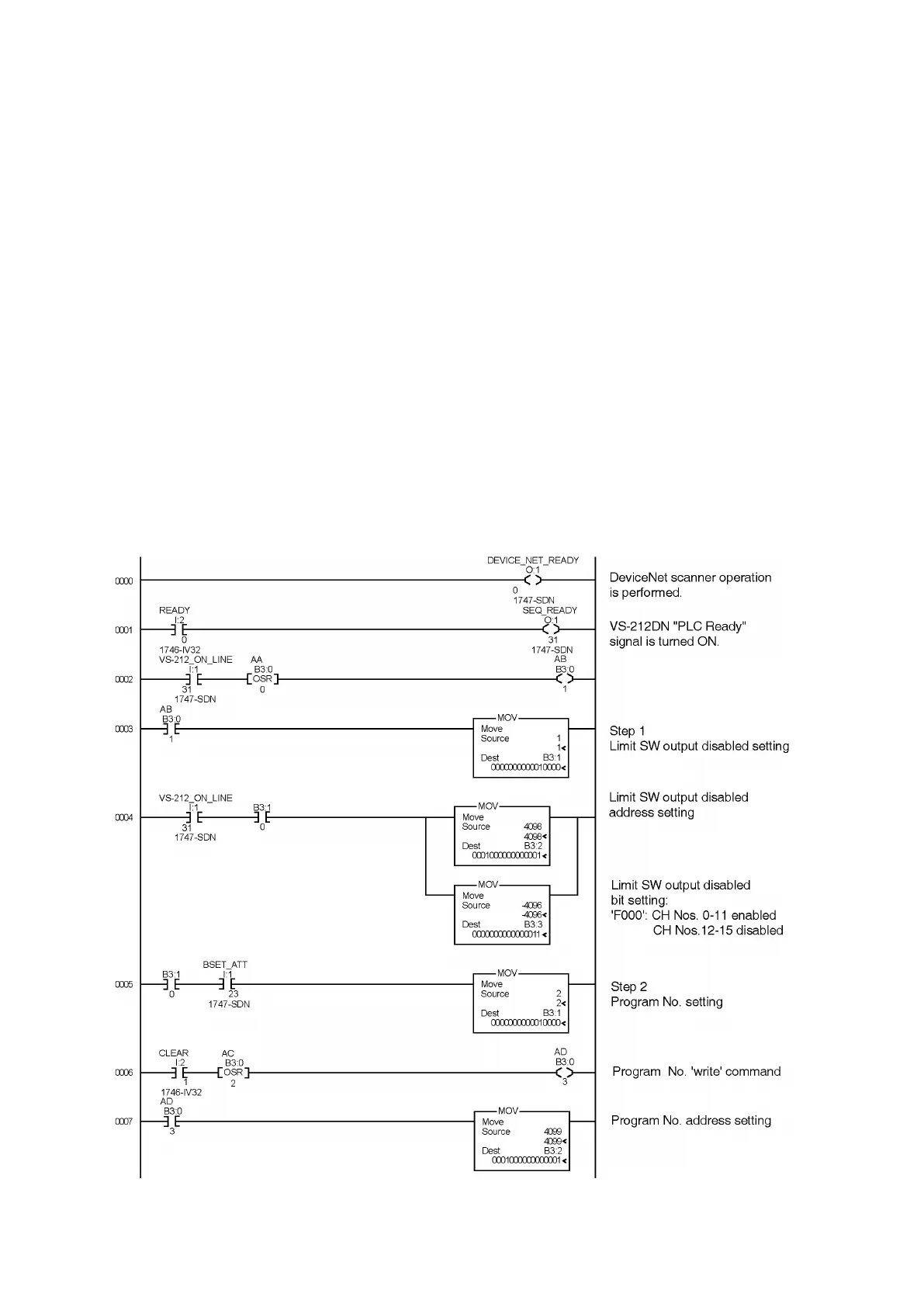

A sample sequence program is shown below.
A sequence is indicated by an "SLC500" Rockwell Automation (Allen Bradley).
8.6.1 Initial settings and parameter settings
Refer to section 6.6 for the initial settings and parameter settings.
8.6.2 Program for limit switch output function
The following example shows a program used to start the limit switch output function at one of the 3
registered programs (1-3), when the program settings have been designated in advance at the
VS-212DN.
Conditions
The following signal assignments are used to control the VS-212DN:
o VS-212DN’s PLC Ready (I: 2/0)
o Program No. ‘write’ command (I: 2/1)
o Program No. selection (I: 2/2-4)
o Limit switch output function start command (I: 2/5)
o Program No. storage register (B3:5)
o ‘Program No. answerback’ storage register (B3:6)
