6.6.3 Program for current position monitor display

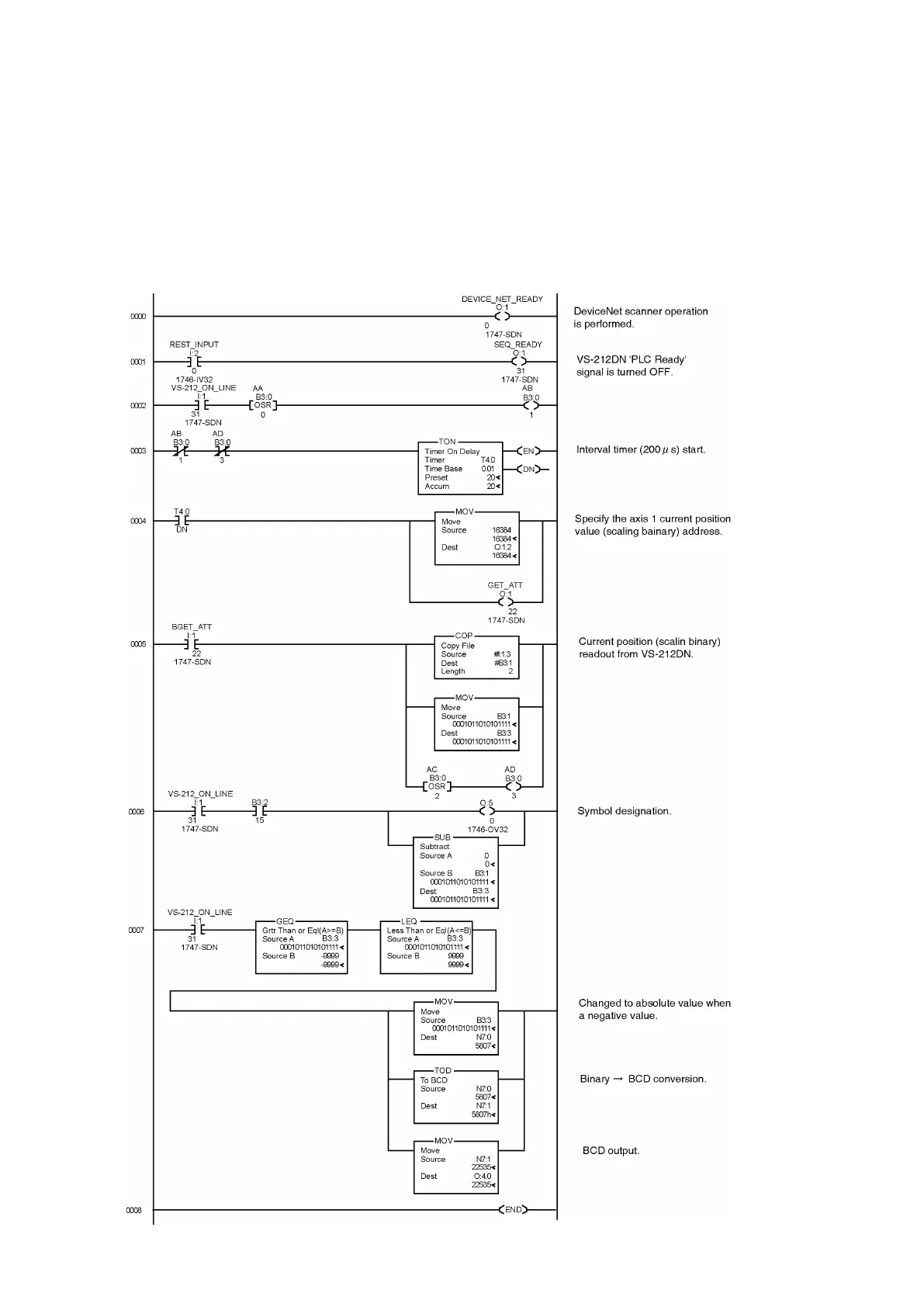

A program example for the current position monitor display is given below.
o VS-212DN PLC Ready: I:2/0
o Current position value (scaling binary) storage register: B3:1,2,3
o Current position output: O: 4/0 to 15
o Symbol output: O: 5/0
o The current position detect display is executed every 200 μms.
o VS-212DN beginning address: O:1.1, I:1.1
