NSD Varlimit VS-212DN User Manual

8-12

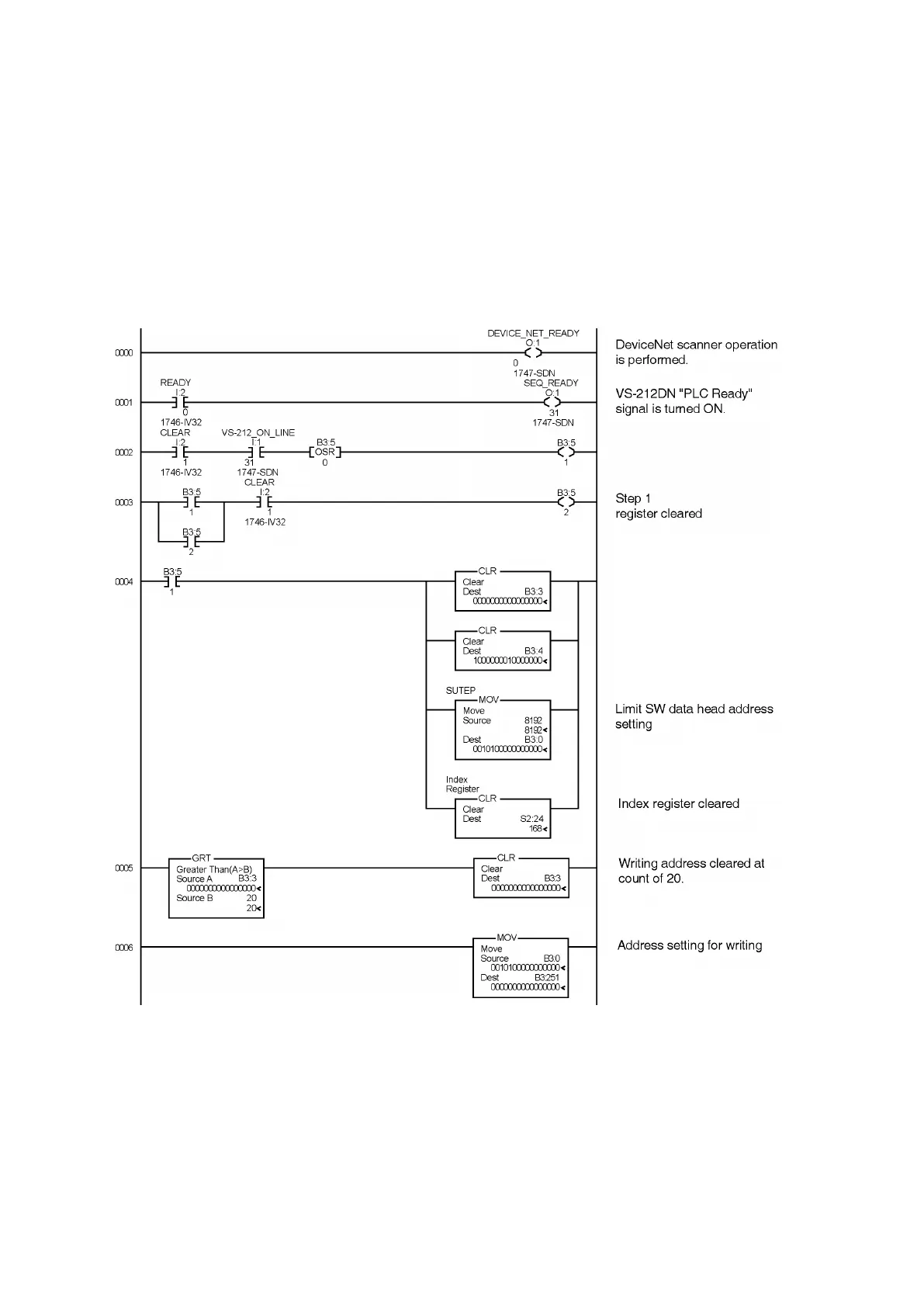

8.6.3 Program for limit switch output function (Program No. 0)
The following example shows a program used to start the limit switch output function by the desired
setting data which is stored at the PLC CPU’s file resister, and writing that data to the program No. 0
area.
Conditions
The following signal assignments are used to control the VS-212DN:
o VS-212DN’s PLC Ready (I: 2/0)
o Program No. ‘write’ command (I: 2/1)
o Limit switch output function start command (I: 2/5)
