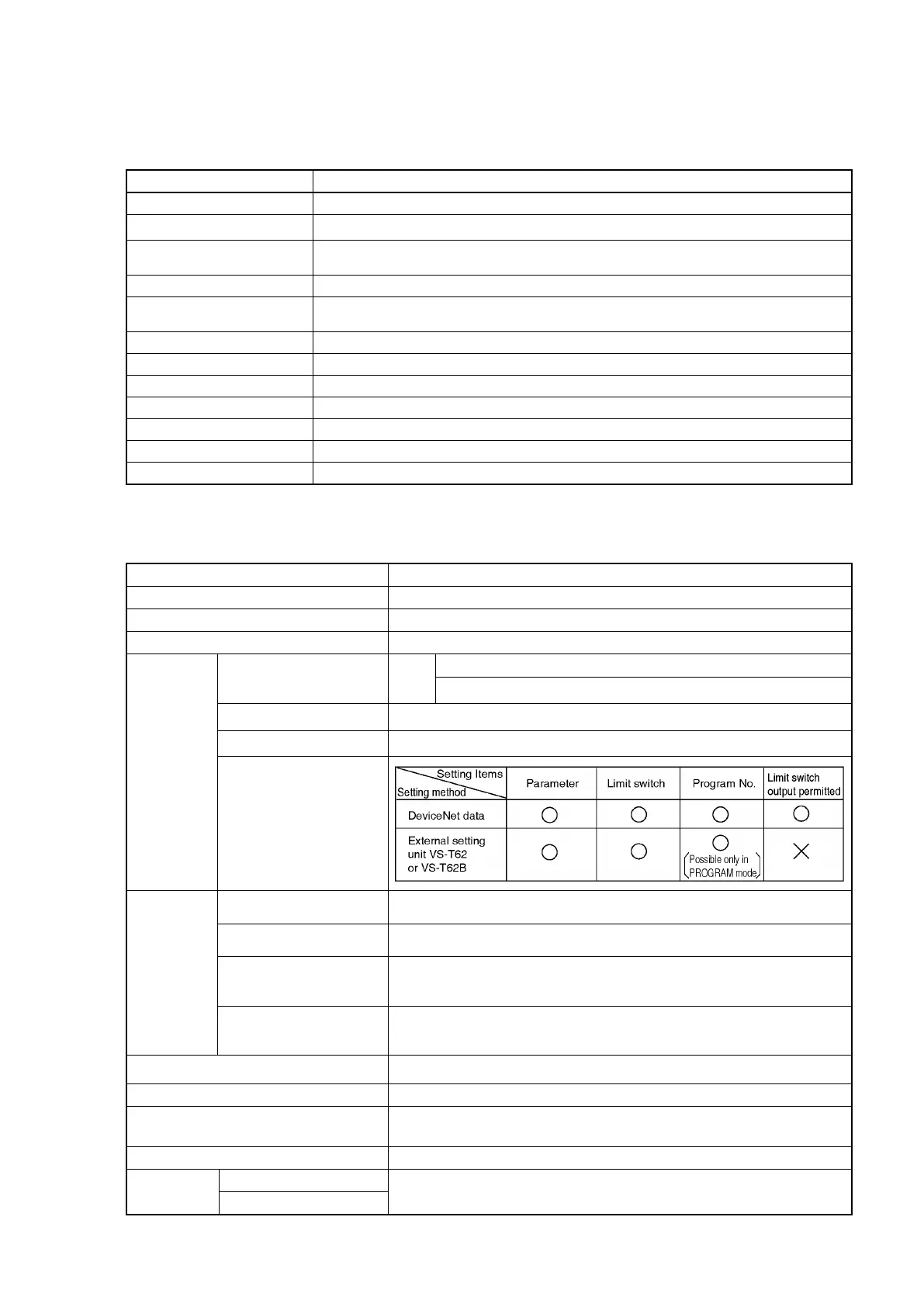

2. SPECIFICATIONS
2.1 General Specifications
±
％
Current consumption 0.5A or less
Insulation resistance
Ω
or more between the external power terminal and enclosure (tested by
500VDC meg-ohmmeter)
Withstand voltage 500 VAC 60 Hz for 1 minute between external DC terminals and enclosure
Vibration resistance
･
10 to 500 Hz, 10 cycles of 5 minutes in 3 directions.
(Conform to JIS C 0040 standard)
℃
％
（
Free of corrosive gases and excessive dust
Must be securely grounded (ground resistance of 100 ohm or less)
Book-self type within enclosure
×
×
2.2 Performance Specifications
Item Specifications
Position detection format Absolute detection
Number of position detection axes 2 axes
Number of divisions [4096 divisions×32 turns] to [409.6 divisions×320 turns]
Limit switch
output
function
Number of programs
9
Program No.0 (Data is not held when power is OFF)
Program No.1-8 (Data is held when power is OFF)
Number of multi-dogs 10 dogs/channel
Number of channels 16 channels/axis (DeviceNet I/O)
Data setting method
Positioning
function
Control format
Unidirectional positioning (Bidirectional positioning when ‘overshoot
amount’ is set to “0”.
Target position setting
method
DeviceNet I/O
channels for positioning
1 pattern/axis
Number of output
channels for positioning
signal output (CH/axis)
8 channels/axis
Minimum setting units 0.00001
Current position value setting function Current position value setting, current position preset setting
JOG operation function via DeviceNet I/O
Response
time
Limit switch output
4ms (max. response delay time due to internal processing without
including communication time)
