NSD Varlimit VS-212DN User Manual

2-2

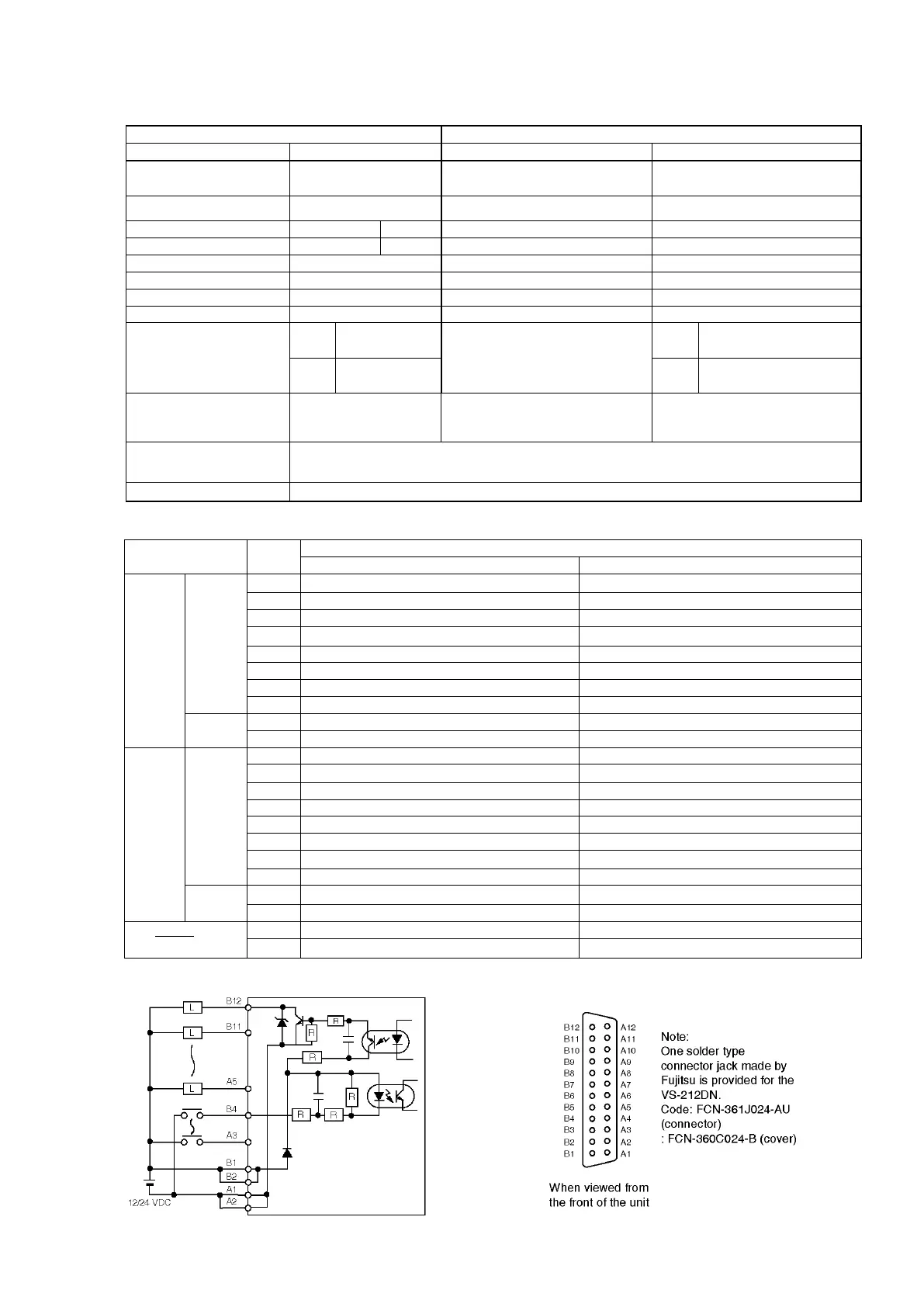

2.3 External Input / Output Specifications
Input specifications
Output specifications
Item
specifications
Item
specifications
Number of Input
Current position preset:
2 points
×
2 axes
Number of Output
Positioning output:
8 points
×
2 axes
Isolation format Photo-coupler Isolation format Photo-coupler
Rated input voltage (V)
12 VDC
24VDC
Rated input voltage (V)
12/24 VDC
Rated input current (mA)
4
10
Load voltage range used (V)
10.2 to 30 VDC
Input voltage range (V)
10.2 to 30 VDC
Max. load current (mA)
100
ON voltage (V)
10 VDC or more
Max. rush current (A)
0.4 (10 ms or less)
OFF voltage (V)
4 VDC or less
Current leakage when OFF (mA)
0.1 or less
Max. voltage drop when ON(V)
0.5 (at 100 mA)
Response time (ms)
OFF
→
ON
0.04 (with input
voltage of 24V)
Response time (ms)
OFF
→
ON
0.04 (when load current
is 100 mA)
ON
→
OFF
0.2 (with input
voltage of 24V)
ON
→
OFF
0.2 (when load current is
100 mA)
Common connection
1 common for 4 points
(Common terminal:
B1,B2)
Common connection
1 common for 16 points
(Common terminal: A1,A2)
External cable
connection format
Connector connection (24 pins connector:FCN-361J024-AU/FCN-360C024-B:Fujitsu)
Compatible wire size
0.3 mm
２
I/O
Pin
No.
Signal Name
Using ‘speed switching’ format
Using ‘speed stepping’ format
Axis 1
Output
B12
Forward
Forward/low-speed
B11
Reverse
Reverse/low-speed
B10
High-speed
High-speed
B9
Low-speed
Medium-speed
B8
Brake release
Brake release
B7
In-position
In-position
B6
Positioning in progress
Positioning in progress
B5
Operation error
Operation error
Input
B4
Current position preset input 1
Current position preset input 1
B3
Current position preset input 2
Current position preset input 2
Axis 2 Output
A12
Forward
Forward/low-speed
A11
Reverse
Reverse/low-speed
A10
High-speed
High-speed
A9
Low-speed
Medium-speed
A8
Brake release
Brake release
A7
In-position
In-position
A6
Positioning in progress
Positioning in progress
A5
Operation error
Operation error
Input
A4
Current position preset input 1
Current position preset input 1
A3
Current position preset input 2
Current position preset input 2
B1,B2
12/24DVC
12/24 DVC
A1,A2
0V
0V
o I/O circuit o Pin arrangement
