3.5.17 Low-Speed Zone Writing
This setting specifies the low-speed zone for positioning operations. Although this setting can be
written by the sequence program at any time, it is enabled only when the positioning pattern data buffer
memory selection's (I/O address 12292 [12356]) 1-bit is set to "1".
This setting value changes to the parameter value at power ON, and when parameter settings are made.
(1) Setting data is written in a scaling binary format.
(2) The permissible setting range is as follows:
[Min. current position value] to [Min. current position value + scale length - 1].
3.5.18 FWD/RVS Stop Zone Writing
This setting specifies the stop zone for positioning operations. Although this setting can be written by
the sequence program at any time, it is enabled only when the positioning pattern data buffer memory
selection's (I/O address 12292 [12356]) 2-bit and 3-bit are set to "1".
This setting value changes to the parameter value at power ON, and when parameter settings are made.
(1) Setting data is written in a scaling binary format.
(2) The permissible setting range is as follows:
[Min. current position value] to [Min. current position value + scale length - 1].
(3) There are two data items; one for Forward rotation, and one for Reverse rotation.
3.5.19 In-Position Zone Writing
This setting specifies the In-position zone for positioning operations. Although this setting can be
written by the sequence program at any time, it is enabled only when the positioning pattern data buffer
memory selection's (I/O address 12292 [12356]) 4-bit is set to "1".
This setting value changes to the parameter value at power ON, and when parameter settings are made.
(1) Setting data is written in a scaling binary format.
(2) The permissible setting range is as follows:
[Min. current position value] to [Min. current position value + scale length - 1].
3.5.20 Limit Switch Output Status Reading

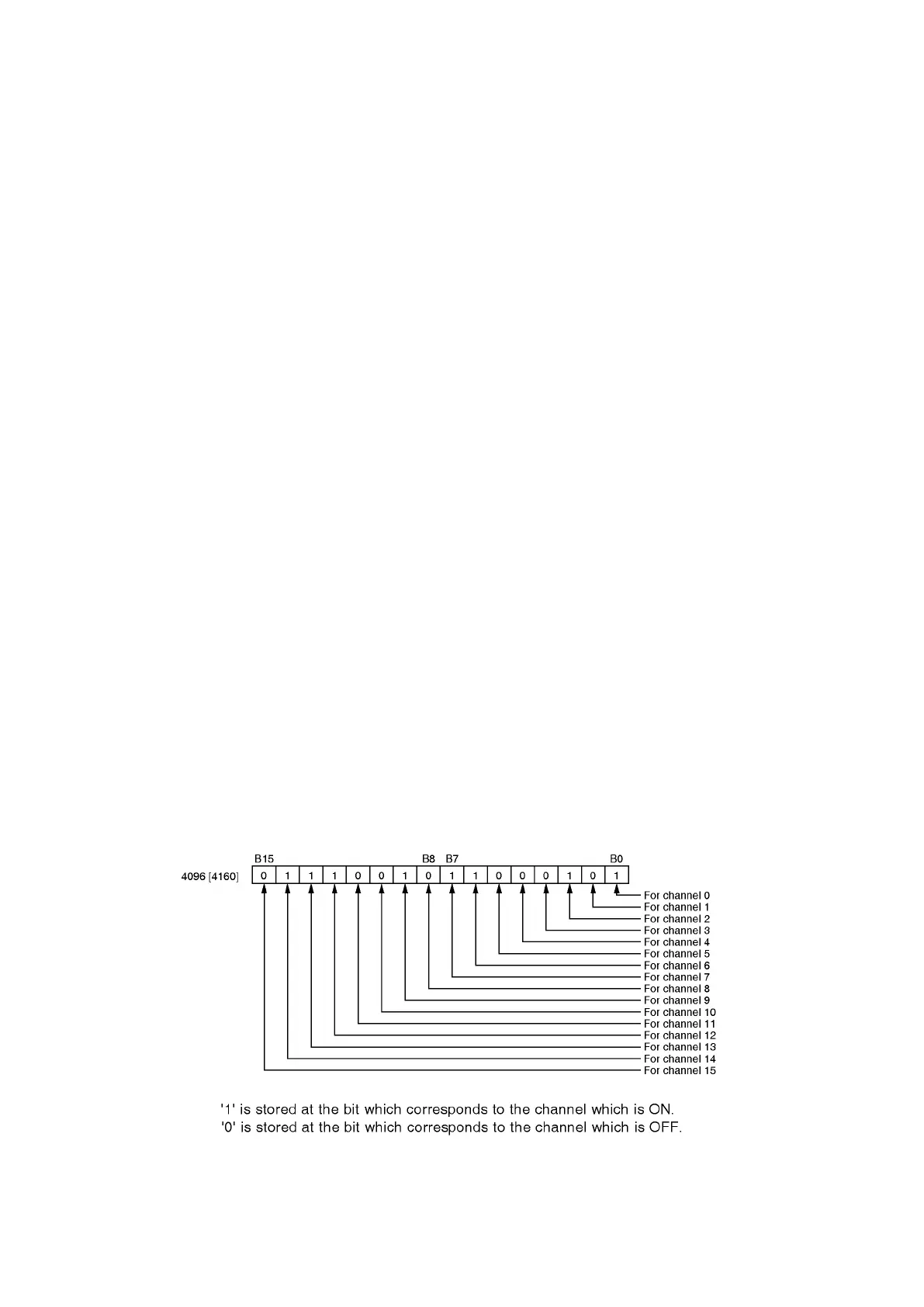

The limit switch output statuses are read as follows:
