7.1.2 Positioning speed switching format

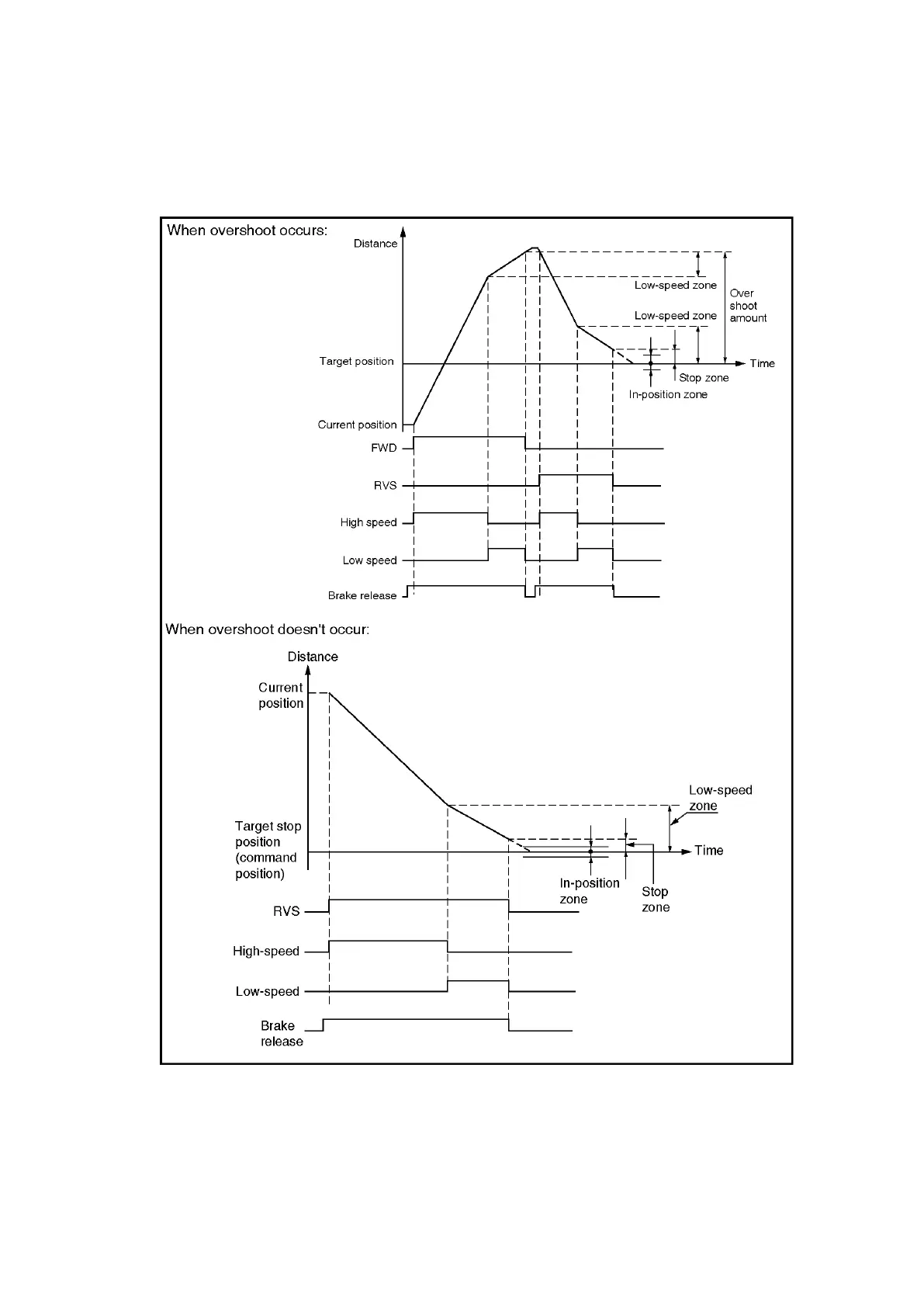

In the ‘speed switching’ format, the ‘high-speed’ and ‘low-speed’ speed switching signals operate
independently, with the high-speed signal being ON during high-speed operation, and the low-speed
signal being ON during low-speed operation.
The parameter settings which designate the low-speed zone, stop zone, and In-position zone are
made in advance at the VS-212DN.
Positioning begins when the sequence program writes the target stop position to the buffer memory
and then executes the START input.
