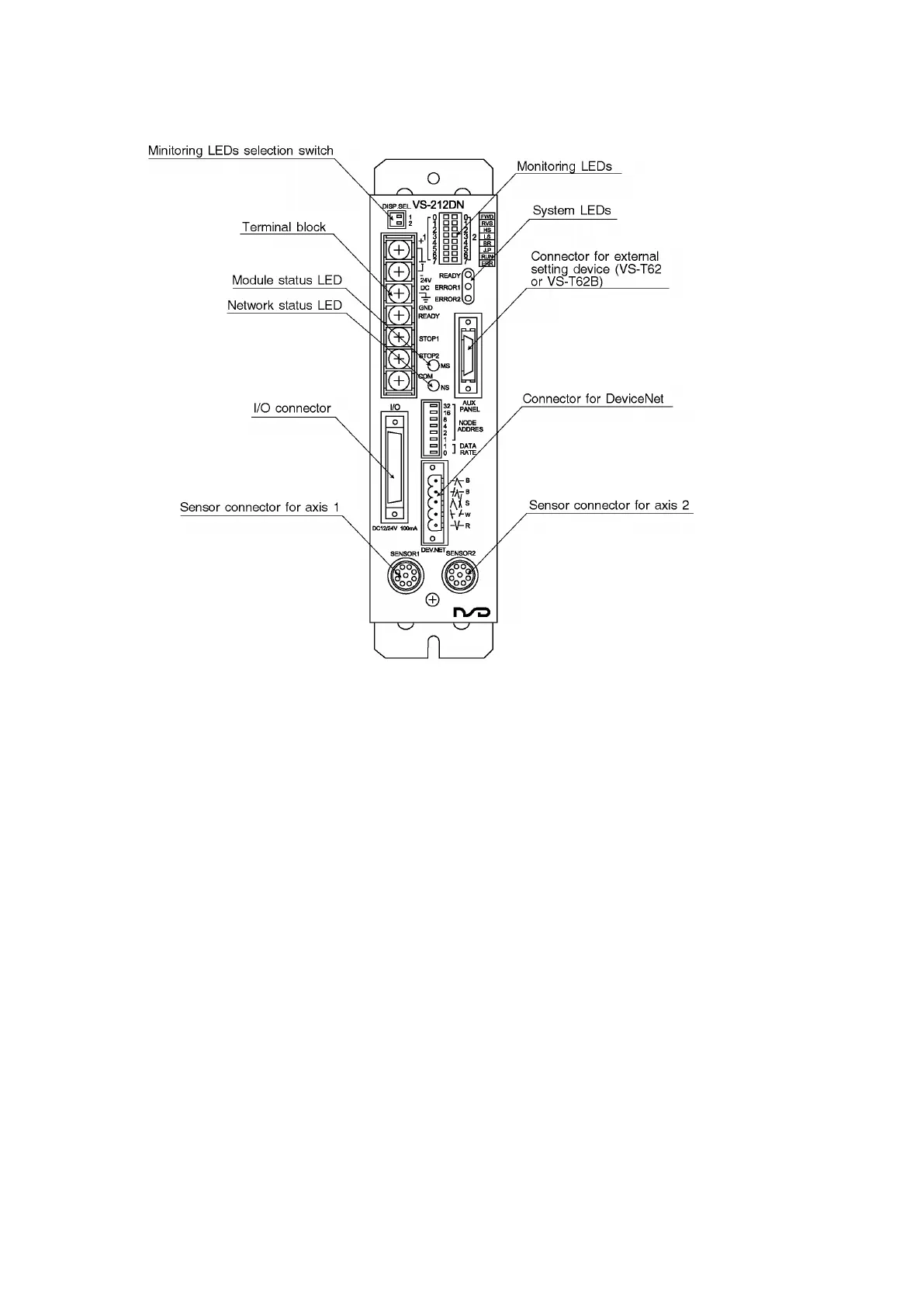

4-4. Nomenclature

4-5. Explanation of Displays

4-5-1. System LEDs

(1) READY LED

This LED is lit when the following conditions are satisfied:

o RUM mode

o There is no error

(2) ERROR 1

This LED is lit when an error occurs in the axis 1.

(3) ERROR 2

This LED is lit when an error occurs in the axis 2.

4-5-2. DeviceNet monitor LEDs (MS, NS)

These LEDs indicate DeviceNet status. MS (Module status), NS (Network status)

Refer to item 3-2 “Panel Display” for display’s description”.
