Solver NEXT SPM. Instruction Manual
86

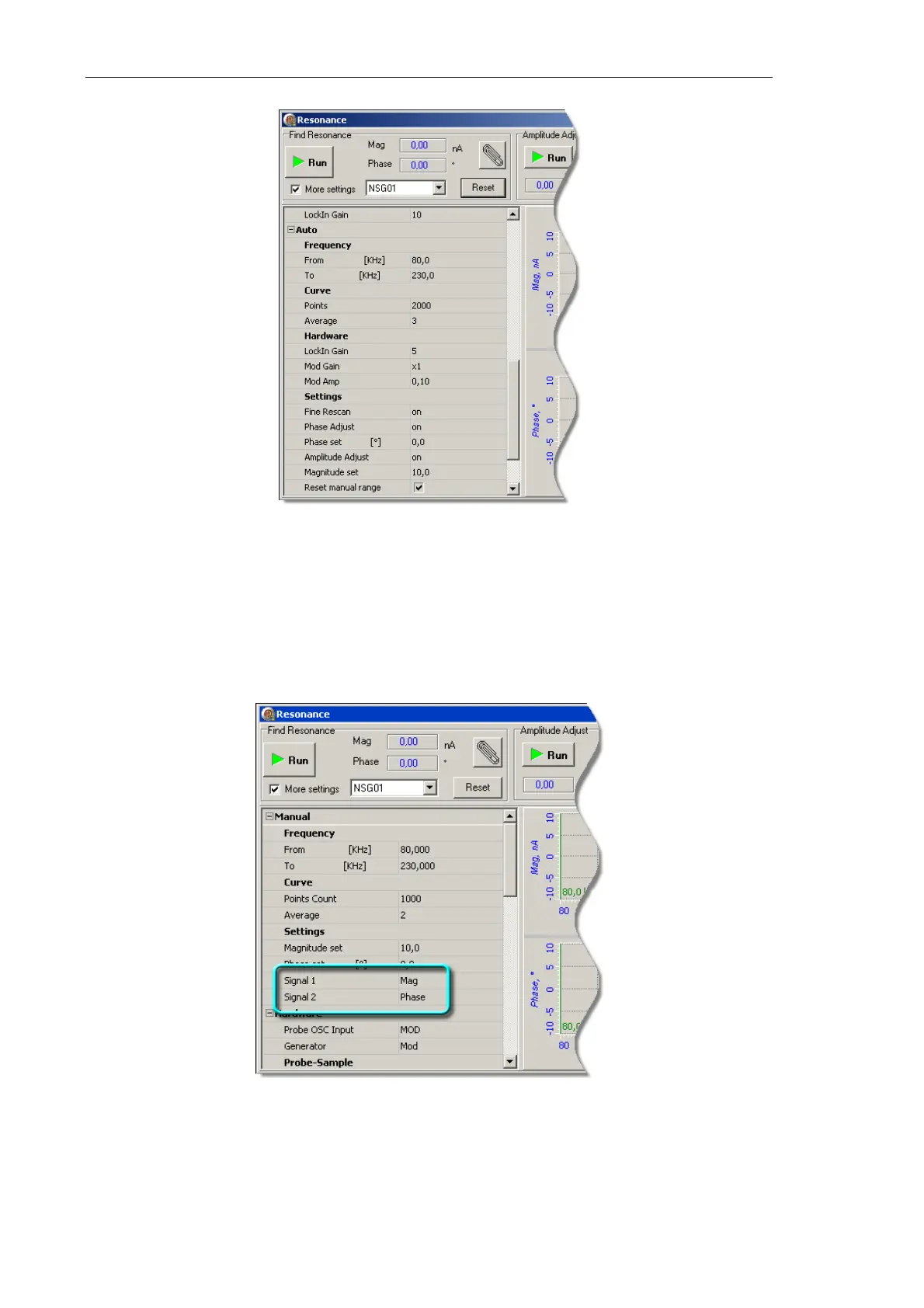

Fig. 7-44. Piezodrive adjustable parameters panel
NOTE. To display frequency responses of the signals Mag and Phase , select the
corresponding options in the Settings subgroup of the Manual parameters group:
Signal 1 Mag
Signal 2 Phase.
3. Before automatic search for the resonance frequency, deselect the More settings option
in the
Find Resonance panel (see Fig. 7-45).
