Perform a media registration for standard-size media - Adjust the
X-position of side 1
Procedure
1.
Take the first test sheet.
2.
Put the ruler along the line 'D-F' of the test sheet.
3.
Align the start of the ruler with the left edge of the test sheet.
Test bitmap: REGISTRATION
Size: 210 x 297 mm
2006-10-09 / 14:08:36
Page 1
1
Primary image
A C
G
I
05-
0
0
5+
3 wekstee
h
S-
B
H
D F
1000 1050 1100 1150 1200 1250 1300 1350 1400 1450 1500 1550 1600 1650 1700 1750 1800 1850 1900 1950 2000 2050 2100 2150 2200 2250 2300 2350 2400 2450 2500 2550 2600 2650 2700 2750 2800
-50
0
+50
Pri mar y X image position
Pri mar y Z image position
Pri mar y diamond shape
X length
L
1
D
-50
0
+50

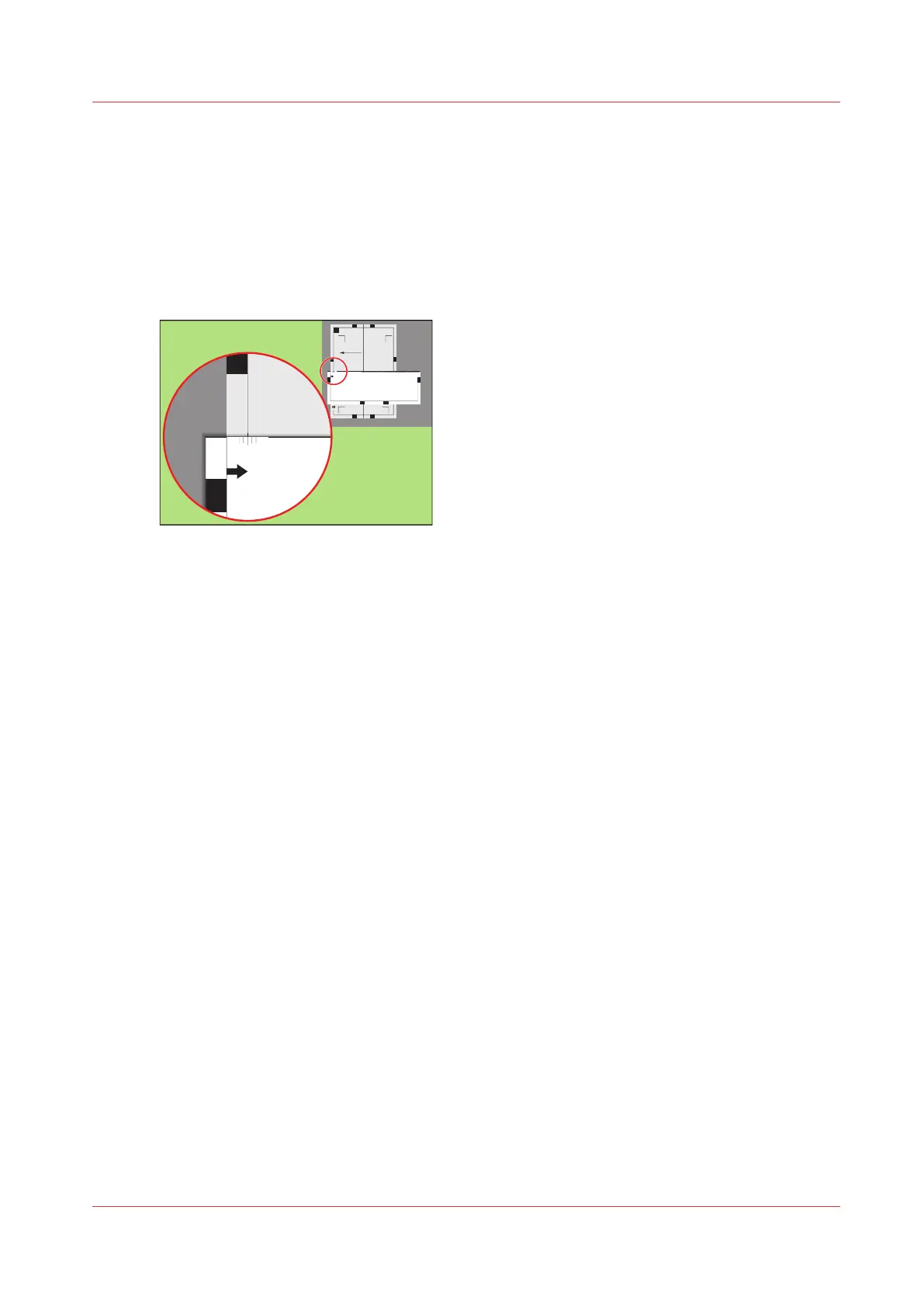

[56] Align the ruler with the edge of the sheet
4.
Read the value at point 'D'.
5.
Enter the value.
6.
Take the second test sheet.
7.
Repeat the steps 2 - 5.
8.
Take the third test sheet.
9.
Repeat the steps 2 - 5.
