Oce VarioPrint 6180 - Perform a Media Registration for Large Media - Adjust the X-Length of Side 1

Perform a media registration for large media - Adjust the X-length
of side 1
Procedure
1.
Take the first test sheet.
2.

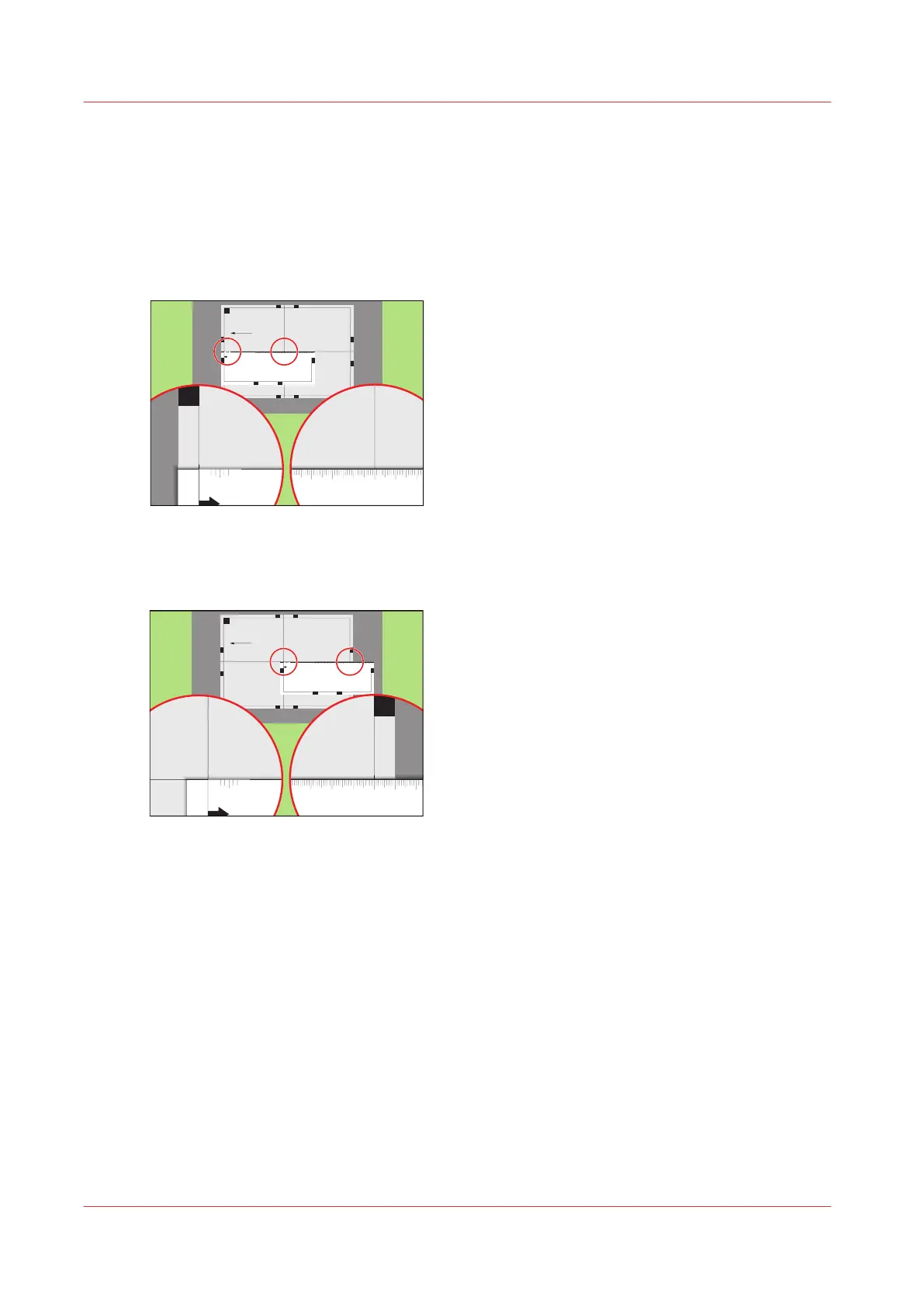

Align the start of the ruler with point 'D' and read the value at point 'E'.
Test bitmap: REGISTRATION
Size: 420 x 297 mm
2006-10-09 / 14:08:22
Page 1
1
Primary image
-50
0
+50
3 - Sheet skew
B
H
ED F
1000 1050 1100 1150 1200 1250 1300 1350 1400 1450 1500 1550 1600 1650 1700 1750 1800 1850 1900 1950 2000 2050 2100 2150 2200 2250 2300 2350 2400 2450 2500 2550 2600 2650 2700 2750 2800
-50
0
+50
Pri mar y X image position
Pri mar y Z image position
Pri mar y diamond shape
X length
L
1
D
-50
0
+50
E
15 00 15 50 16 00 16 50 170 0 175 0 18 00 18 50 19 00 19 50 2000 2050 2100
[61] Align the ruler with 'D' and read the value at 'E'
3.
Open the [Calculator assistant], enter the 'DE' value and press [OK].
4.
Align the start of the ruler with point 'E' and read the value at point 'F'.
Test bitmap: REGISTRATION
Size: 420 x 297 mm
2006-10-09 / 14:08:22
Page 1
1
Primary image
-50
0
+50
3 - Sheet skew
B
H
ED F
1000 1050 1100 1150 1200 1250 1300 1350 1400 1450 1500 1550 1600 1650 1700 1750 1800 1850 1900 1950 2000 2050 2100 2150 2200 2250 2300 2350 2400 2450 2500 2550 2600 2650 2700 2750 2800
-50
0
+50
Pri mar y X image position
Pri mar y Z image position
Pri mar y diamond shape
X length
L
E
-50
0
+50
F
170 0 175 0 18 00 18 50 19 00 19 50 2000 2050 2100 2150 2200 2250 2300
[62] Align the ruler with 'E' and read the value at 'F'
5.
Open the [Calculator assistant], enter the 'EF' value and press [OK].
6.
Take the second test sheet.
7.
Repeat the steps 2 - 5.
8.
Take the third test sheet.
9.
Repeat the steps 2 - 5.
Perform a media registration for large media - Adjust the X-length of side 1
232
Chapter 11 - Media handling
Océ VarioPrint 6000 line
