CHAPTER 27
| 222
FREQUENTLY ASKED QUESTIONS
For example, the Main FM Out 1 might be set to “FM Pre-emph L/R” in order to output pre-emphasized audio for the main
FM channel which will be de-emphasized later in the chain. Main FM Out 2 might be set to “HD-1” to route audio destined for
the HD-1 path. Aux Out may be set to “HD-2” for audio being sent to the HD-2 path. Or Aux Out could be set to feed an AM
transmitter.
If Omnia.9 is located at the transmitter, one of the two rear panel composite outputs can be used to feed the main FM audio
directly to the exciter. This is also true if Omnia.9 is located at the studio feeding a composite STL. In these cases, adjustments
to the output are made in the System > I/O Options > FM Options menu.
How do I set input levels?
Input levels are set in the System > I/O Options > Source Adjustment menu. There are separate adjustment options for Analog,
Main Digital, AES Reference, Aux Digital (Silent), and eight Livewire inputs. The AES Reference (Silent) should contain AES
clock information only, with no audio.

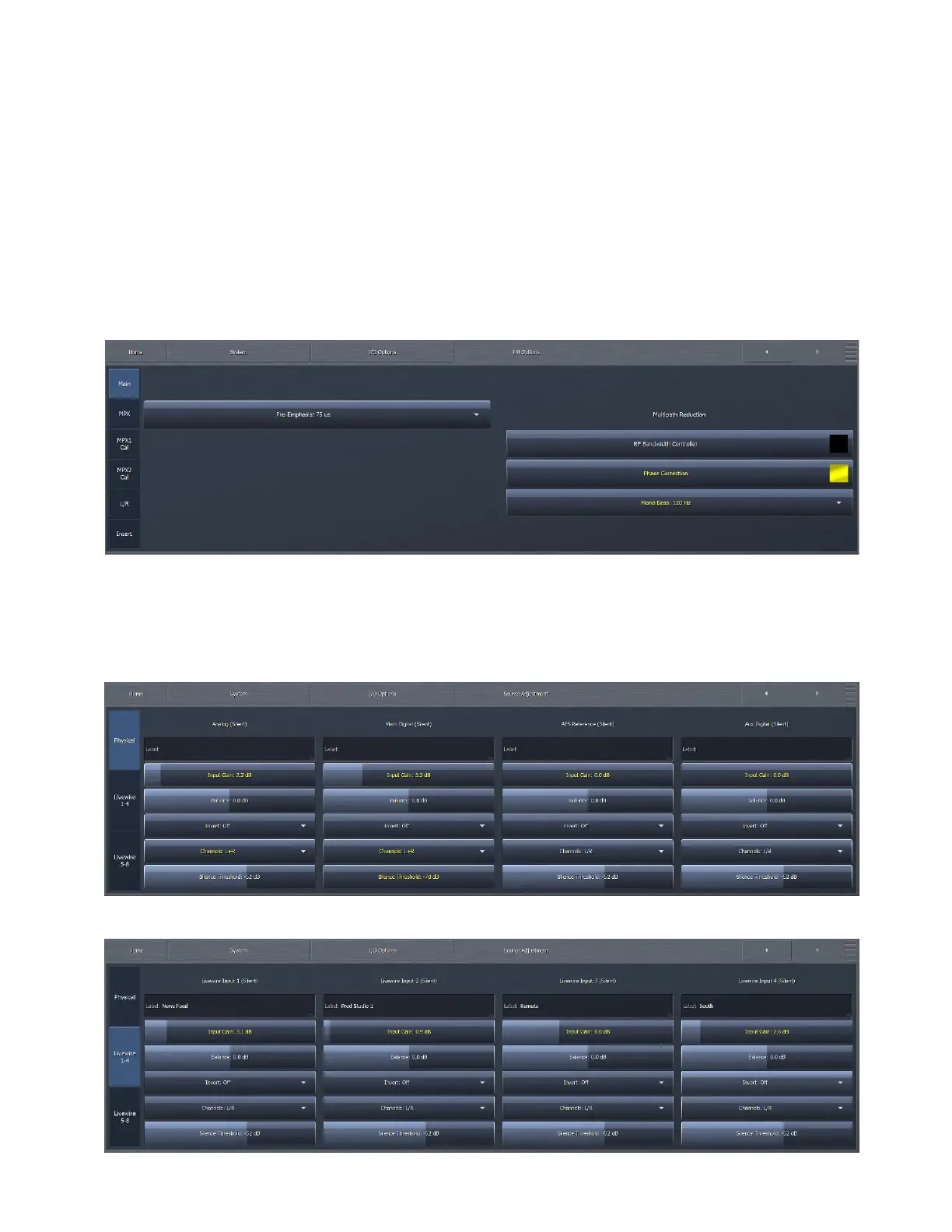

Here is the Livewire Source Adjustment input menu.
