Omron CJ2 User Manual

3-9
3 Nomenclature and Functions
CJ2 CPU Unit Hardware User’s Manual
3-1 CPU Units
3
3-1-2 Built-in EtherNet/IP Section

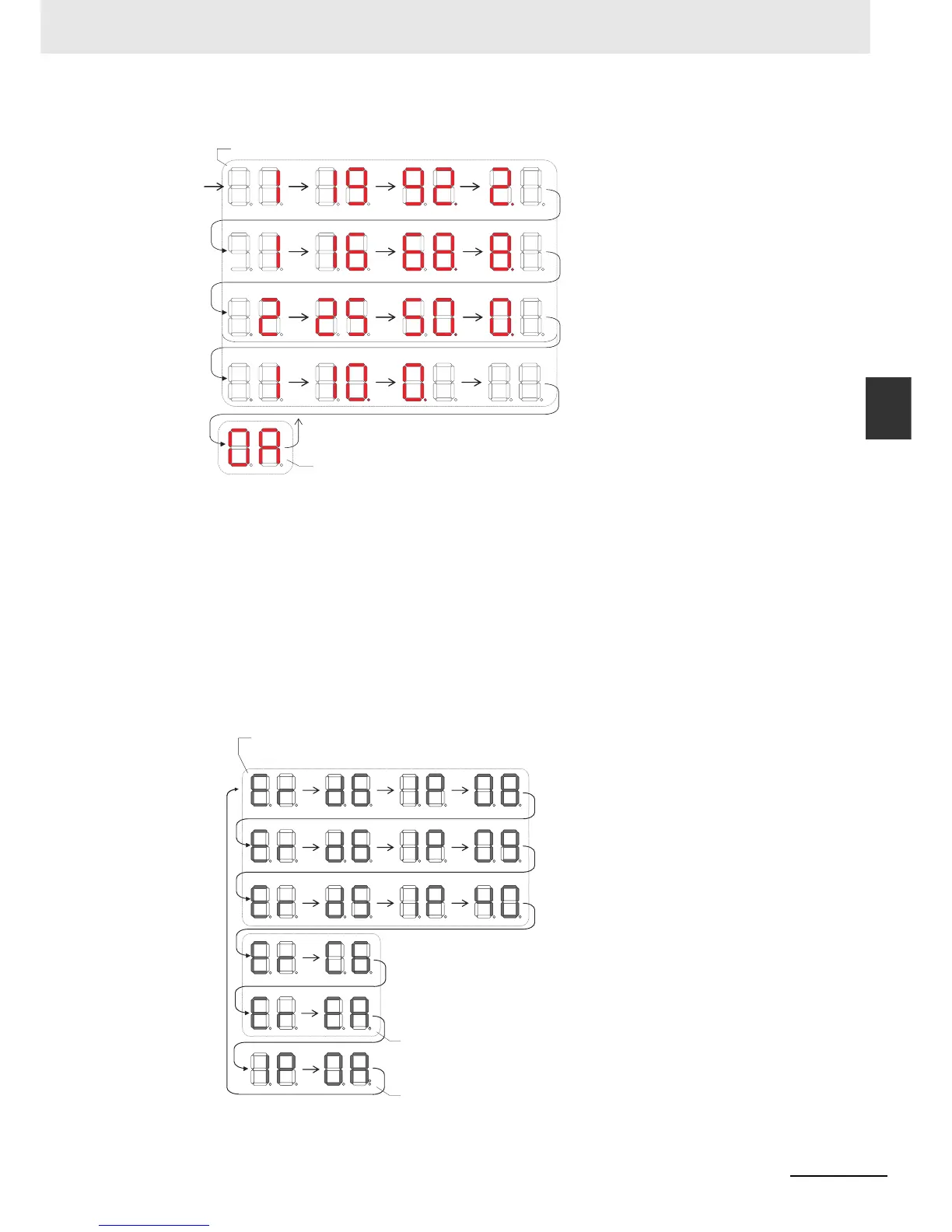

For example, the display will change as follows if the IP address is 192.168.250.10:
If an error occurs, the error code will be displayed alternately with the rightmost byte of the affected
device’s IP address. For details on error codes, refer to 6-2-2 Checking Error Status at the Ether-
Net/IP Port Seven-segment Display.
The following examples show the displays for errors.
• A d6 error (failure to connect) has occurred in communications with IP address 192.168.250.8.
• A d6 error (failure to connect) has occurred in communications with IP address 192.168.250.9.
• A d5 error (verification error; target missing) has occurred in communications with IP address
192.168.250.40.
• A C6 error (multiple switches ON) and an EA error (EtherNet/IP expansion setting error) have
occurred at the built-in EtherNet/IP port.
: 0A
The IP address is displayed in decimal, flowing from right to left.
If the Unit is operating normally, the rightmost digits
of the Unit's IP address is displayed in hexadecimal.
Flashing: The tag data links are stopped.
Lit: The tag data links are operating.
( “0A” is the hexadecimal display
for the final row, 10, in the IP
address of the local Unit.)
: 10
: 250.
: 168.
: 192.
Example:
Example:
: Er d6 IP 08
: IP d6 IP 09
: Er d5 IP 40
: Er c6
: Er EA
: IP 0A
Information on errors that occur in
communications with the target node,
along with the last digits of the Unit’ s IP
address, are displayed in hexadecimal.
Displays errors that occurred
within the Unit.
The last digits of the
Unit’ s IP address is
displayed in hexadecimal.

Omron CJ2 Specifications

General

Model	CJ2
Manufacturer	Omron
Type	Programmable Logic Controller (PLC)
CPU Units	Multiple models available (e.g., CJ2M, CJ2H)
Number of I/O Points	Up to 2, 560 points
Communication Ports	Ethernet/IP, EtherCAT, USB, Serial
Expansion	Yes, via I/O Units and Special I/O Units
I/O Control Method	Cyclic Scan, Interrupt
Programming Language	Ladder diagram, structured text, function block diagram, sequential function chart, instruction list
Built-in I/O	Available on some models (e.g., CJ2M)
Ethernet Port	Yes, 1 port (depending on CPU Unit)
Serial Ports	RS-232C, RS-422/485 (configurable)
USB Port	Yes (for programming and monitoring)
Operating Temperature	0°C to 55°C
Storage Temperature	-25 to 70°C
Humidity	10 to 95% RH (non-condensing)
Vibration Resistance	10 to 57 Hz, Amplitude: 0.075 mm, 57 to 150 Hz, Acceleration: 1 G, X, Y, and Z directions, 80 min each
Power Supply Voltage	24 VDC or 100 to 240 VAC (depending on CPU Unit)
