Wiring and Connections Section 3-4

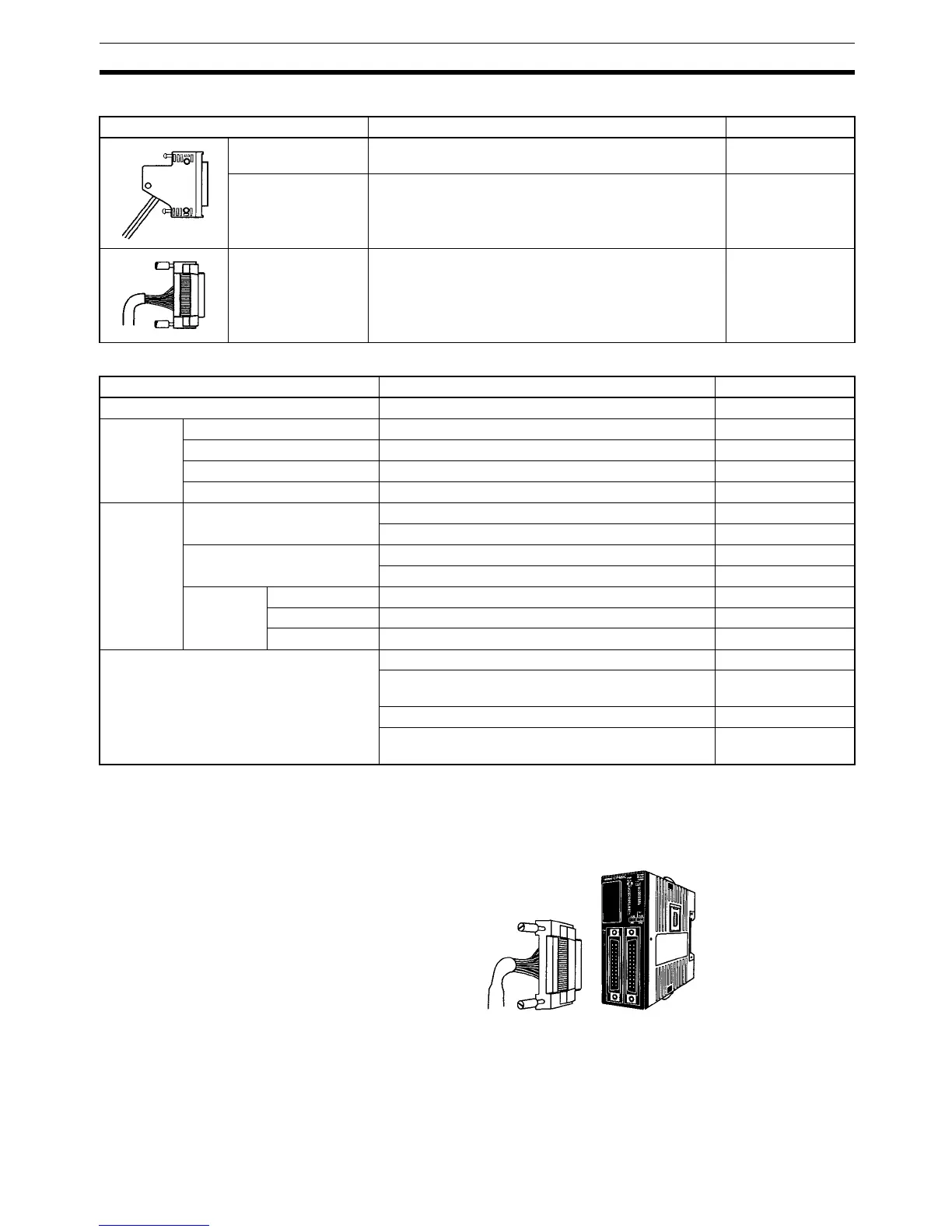

Compatible Connector Specifications (OMRON)
Connector Specifications (Fujitsu)
Connecting I/O
Connectors
(Pressure Connectors)
Use the following procedure when connecting a pressure connector.
1,2,3... 1. Align the connector and insert it into the Unit.
Connector Specifications Model number
24-pin soldered con-
nector and cover
Connector: Fujitsu FCN-361J024-AU equivalent
Cover: Fujitsu FCN-360C024-J2 equivalent
C500-CE241
24-pin crimp connec-
tor and cover
Housing: Fujitsu FCN-363J024 equivalent
Contacts: Fujitsu FCN-363J-AU equivalent
Cover: Fujitsu FCN-360C024-J2 equivalent
C500-CE242
24-pin pressure con-
nector
Connector: Fujitsu FCN-367J024-AU/F equivalent C500-CE243
Item Specifications Model number
Soldered jack 24-pin gold-plated terminals FCN-361J024-AU
Crimp con-
nector
Crimp jack housing 24-pin FCN-363J024
Crimp contacts For wire gauges 24 AWG to 28 AWG FCN-363J-AU
Hand crimp tool --- FCN-363T-T005/H
Contact removal tool --- FCN-360T-T001/H
Pressure
connector
Pressure jack with closed end
cover
24-pin gold-plated terminals FCN-367J024-AU/F
24-pin silver-plated terminals FCN-367J024-AG/F
Pressure jack with open end
cover
24-pin gold-plated terminals FCN-367J024-AU/H
24-pin silver-plated terminals FCN-367J024-AG/H
Pressing
tools
Hand press General purpose FCN-707T-T101/H
Cable cutter General purpose FCN-707T-T001/H
Locator plate For the 360-series connectors FCN-367T-T012/H
Connector cover
(Not compatible with the closed-end cover
pressure jack.)
Thin slanted cover for 24-pin connector FCN-360C024-J2
With slotted screws for 24-pin connector
(Can be turned by hand.)
FCN-360C024E
With Phillips-head screws for 24-pin connector FCN-360C024B
With intermediate Phillips-head screws for 24-pin
connector
FCN-360C024C
