118

Wiring and Connections Section 3-4

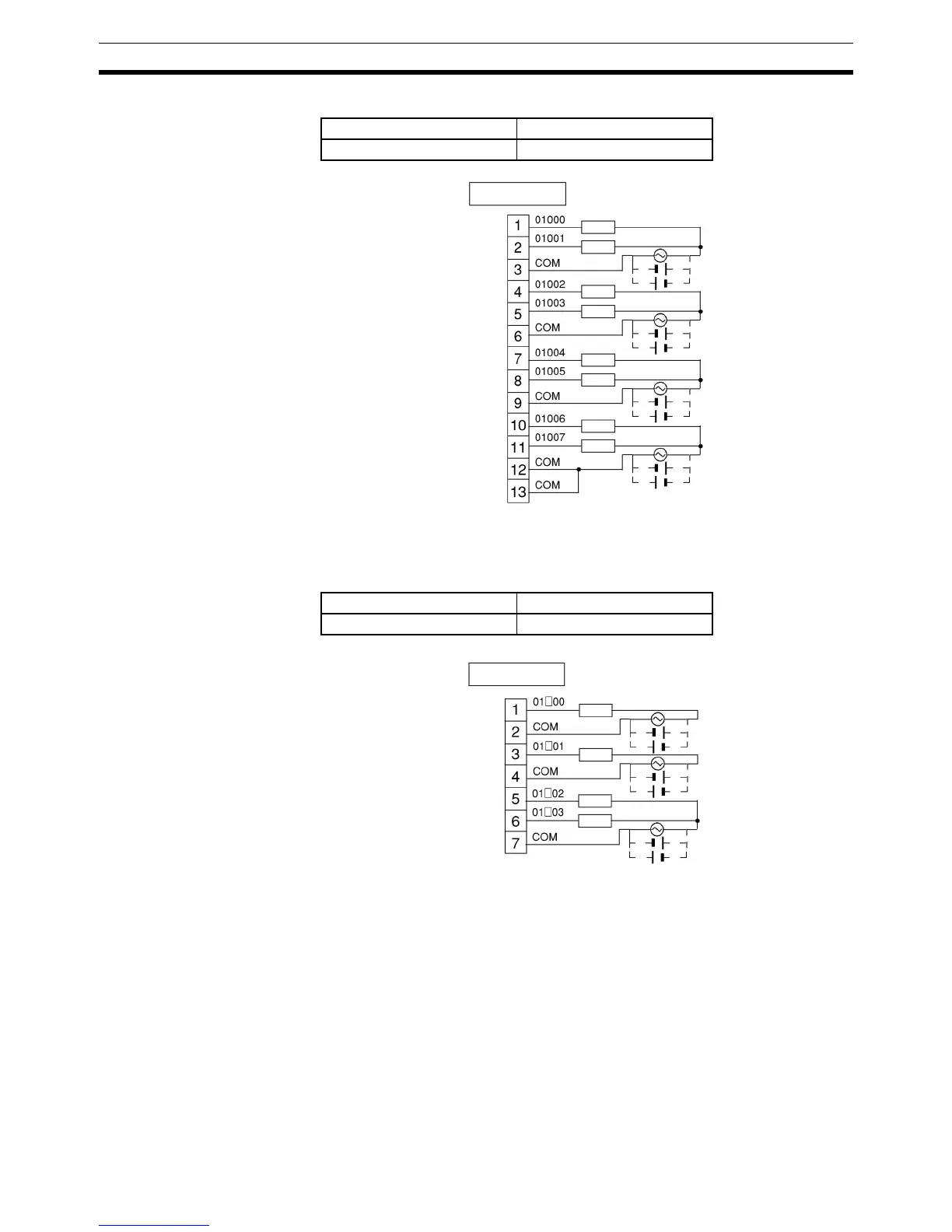

CPU Units with 20 I/O Points: CPM2C-20C@DR-D

Note Terminals 12 and 13 are internally connected. The maximum common capac-

ity is the same as for other common circuits.

Expansion I/O Unit with 10 I/O Points: CPM2C-10EDR

Output capacity Max. common capacity

2 A (250 VAC or 24 VDC) 4 A/common

Outputs: IR 010

Load

Output capacity Max. common capacity

2 A (250 VAC or 24 VDC) 4 A/common

Outputs: IR word n

Load
