Wiring and Connections Section 3-4

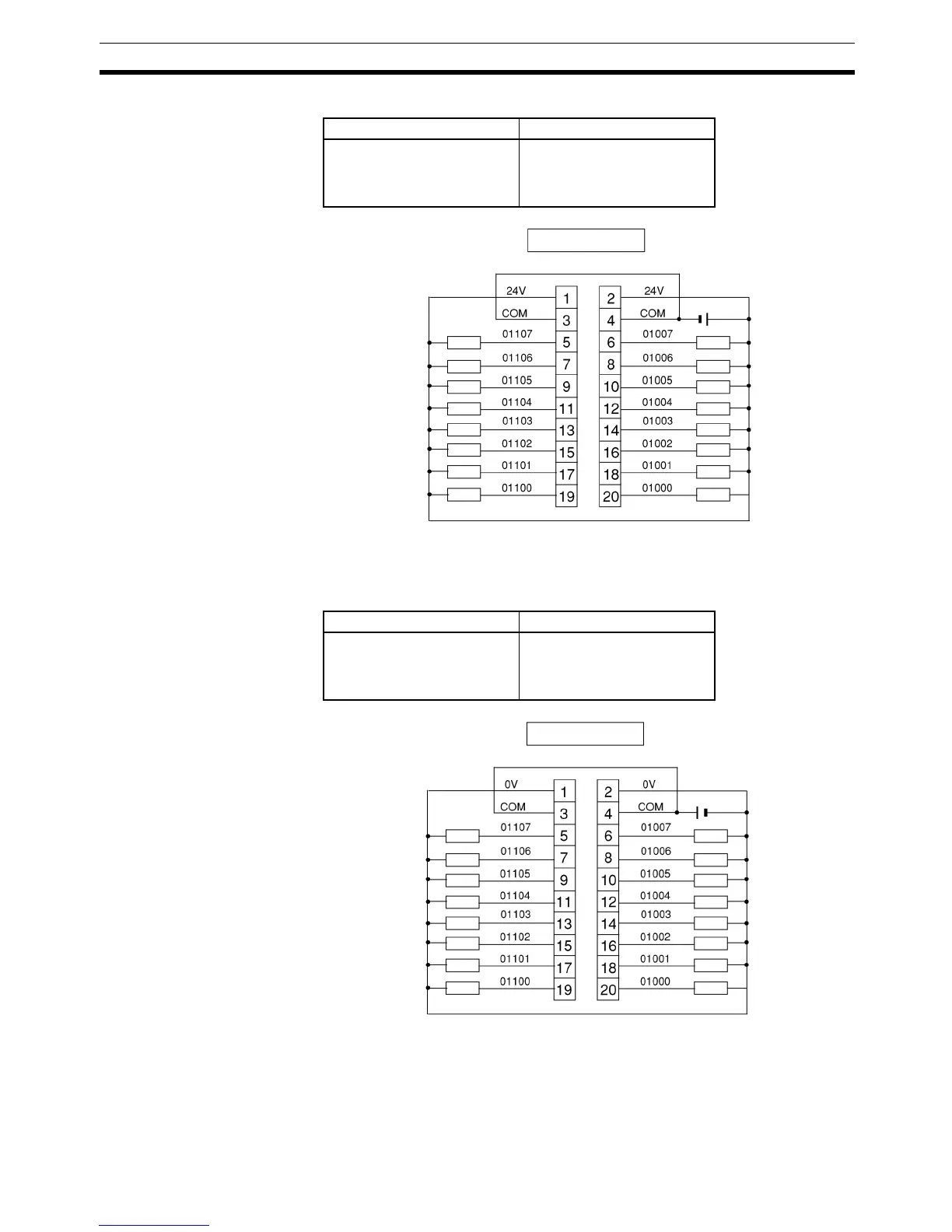

CPU Units with 32 I/O Points, Sinking Outputs: CPM2C-32CDTM-D
Note Wire COM terminals (3 and 4) and 24-V terminals (1 and 2) even though they
are connected internally.
CPU Units with 32 I/O Points, Sourcing Outputs: CPM2C-32CDT1M-D
Note Wire COM terminals (3 and 4) and 0-V terminals (1 and 2) even though they
are connected internally.
Output capacity Max. common capacity
OUT01000 to OUT01007:
300 mA (24 VDC)
OUT01100 to OUT01107:
100 mA (24 VDC)
3.2 A/common
24 VDC
Outputs: IR 010/IR 011
Load
Load
Load
Load
Load
Load
Load
Load
Load
Load
Load
Load
Load
Load
Load
Load
Output capacity Max. common capacity
OUT01000 to OUT01007:
300 mA (24 VDC)
OUT01100 to OUT01107:
100 mA (24 VDC)
3.2 A/common
24 VDC
Outputs: IR 010/IR 011
Load
Load
Load
Load
Load
Load
Load
Load
Load
Load
Load
Load
Load
Load
Load
Load
