Omron CPM2C User Manual

137
Wiring and Connections Section 3-4

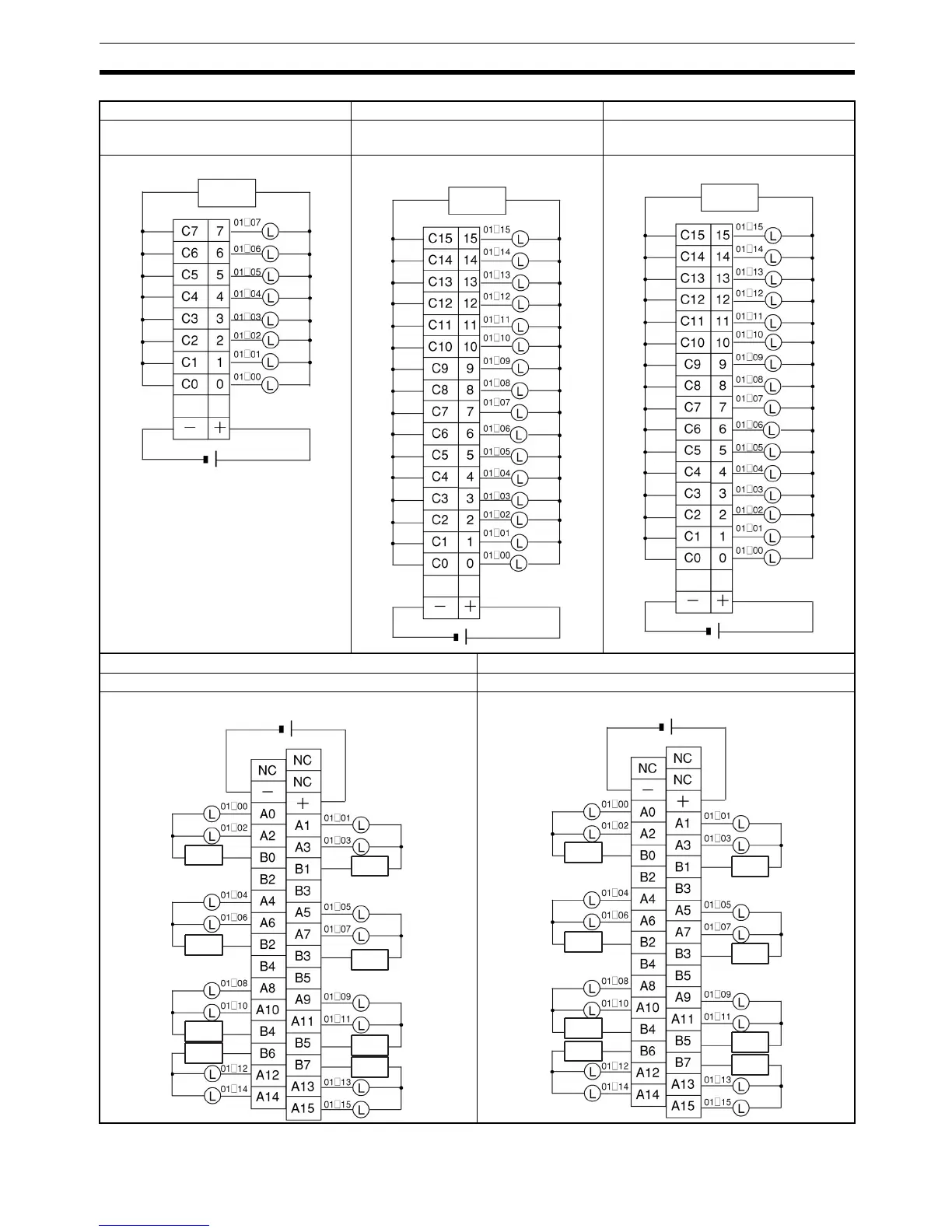

Relay Terminal: G7TC-OC08 Relay Terminal: G7TC-OC16 Relay Terminal: G7TC-OC16-1
Cable: G79-@C (Fujitsu),
G79-O@@C (MIL) (See note.)
Cable: G79-@C (Fujitsu), G79-O@@C
(MIL) (See note.)
Cable: G79-@C (Fujitsu), G79-O@@C
(MIL) (See note.)
Relay Terminals: G70D-SOC16, G70D-FOM16 Relay Terminal: G70D-SOC16-1, G70D-FOM16-1
Cable: G79-@C (Fujitsu), G79-O@@C (MIL) (See note.) Cable: G79-I@@C (MIL) (See note.)
Sinking outputs only
Power
supply
Sinking outputs only
Power
supply
Sourcing outputs only
Power
supply
Sinking outputs only
Power
supply
Power
supply
Power
supply
Power
supply
Power
supply
Power
supply
Power
supply
Power
supply
Sourcing outputs only
Power
supply
Power
supply
Power
supply
Power
supply
Power
supply
Power
supply
Power
supply
Power
supply
