Omron CPM2C User Manual

138
Wiring and Connections Section 3-4
Note Fujitsu = Fujitsu-compatible connector, MIL = MIL connector
Note 1. Fujitsu = Fujitsu-compatible connector, MIL = MIL connector
2. The polarity of G70A-ZOC16-3 (NPN with + common) and G70A-ZOC16-
4 (PNP with
− common) are reversed. Use a G79-I@@C Cable for the
G70A-ZOC16-4. (Only a MIL connector can be used.)
3. The IR area addresses that can be used vary with the Unit used, as shown
in the following table.
Note For CPU Units with 32 I/O points, 00@08 to 00@15 in the diagram correspond
to IR 00100 to IR 00107 and 01@08 to 01@15 in the diagram correspond to
IR 01100 to IR 01107.

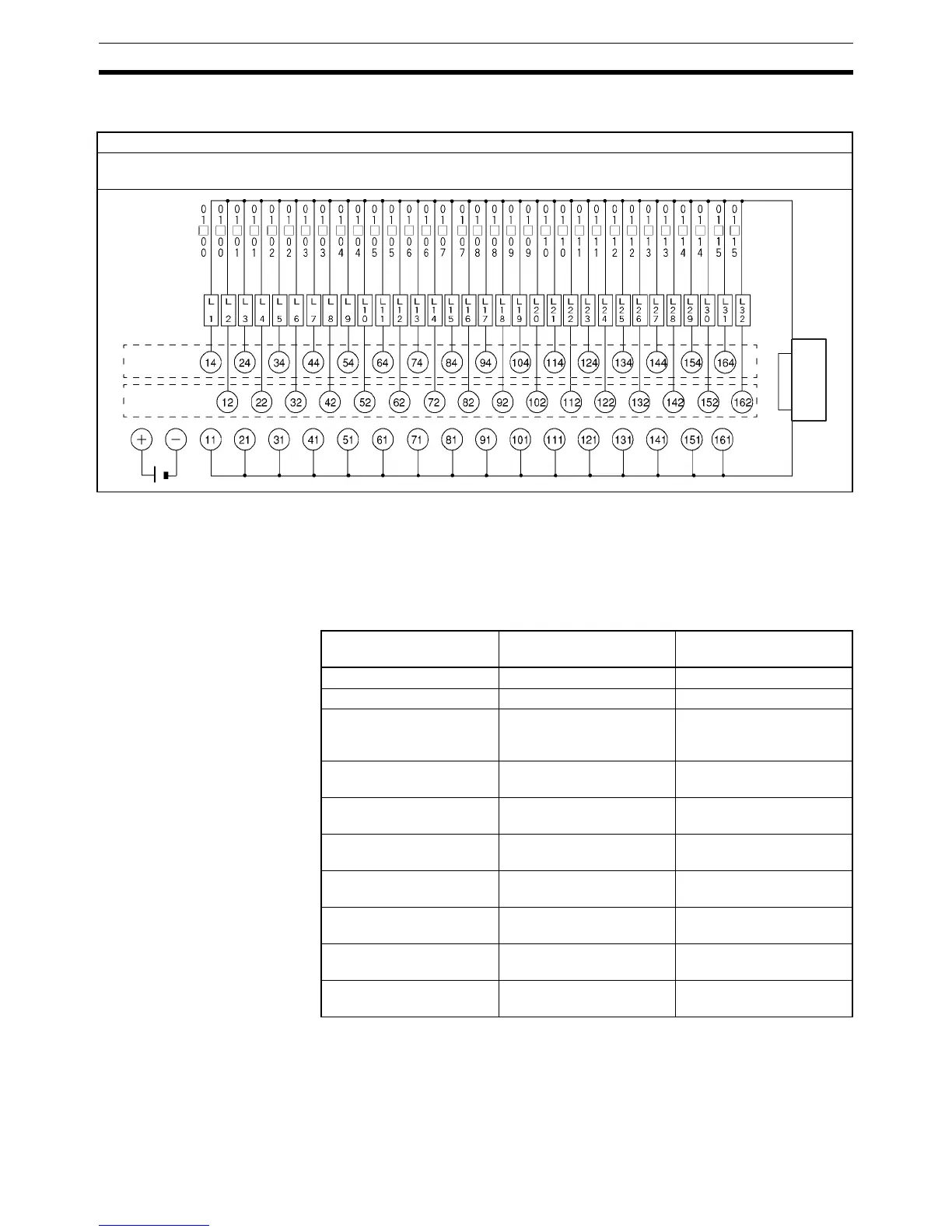

Relay Terminals: G70A-ZOC16-3 (sinking outputs, Fujitsu), G70A-ZOC16-4 (sourcing outputs, MIL) (See note 1.)
Cables: G79-@C (sinking outputs, Fujitsu), G79-O@@C (sourcing outputs, MIL), G79-I@@C (sourcing outputs, MIL), and
G2R-1-S(N) (See note 1.)
N. O. contacts
N. C. contacts
Power supply
N.O.
N.C.
N.O.
N.C
.
N.O
.
N.C.
N.O
.
N.C.
N.O.
N.C.
N.O.
N.C.
N.O.
N.C.
N.O.
N.C.
N.O. N.C. N.O. N.O. N.C. N.O.
N.C.
N.C.
N.C.
N.O.
N.C.
N.C. N.O.
N.C.
N.O.
N.O.
Unit Input IR area addresses Output IR area
addresses
CPU Unit with 10 I/O points IR 00000 to IR 00005 IR 01000 to IR 01003
CPU Unit with 20 I/O points IR 00000 to IR 00011 IR 01000 to IR 01007
CPU Unit with 32 I/O points IR 00000 to IR 00007
IR 00100 to IR 00107
(See note.)
IR 01000 to IR 01007
IR 01100 to IR 01107
(See note.)
Expansion I/O Unit with
10 I/O points
IR 00@00 to IR 00@05 IR 01@00 to IR 01@03
Expansion I/O Unit with
24 I/O points
IR 00@00 to IR 00@15 IR 01@00 to IR 01@07
Expansion I/O Unit with
32 I/O points
IR 00@00 to IR 00@15 IR 01@00 to IR 01@15
Expansion I/O Unit with
8 input points
IR 00@00 to IR 00@07 ---
Expansion I/O Unit with
16 input points
IR 00@00 to IR 00@15 ---
Expansion I/O Unit with
8 output points
--- IR 01@00 to IR 01@07
Expansion I/O Unit with
16 output points
--- IR 01@00 to IR 01@15
