144
Wiring and Connections Section 3-4

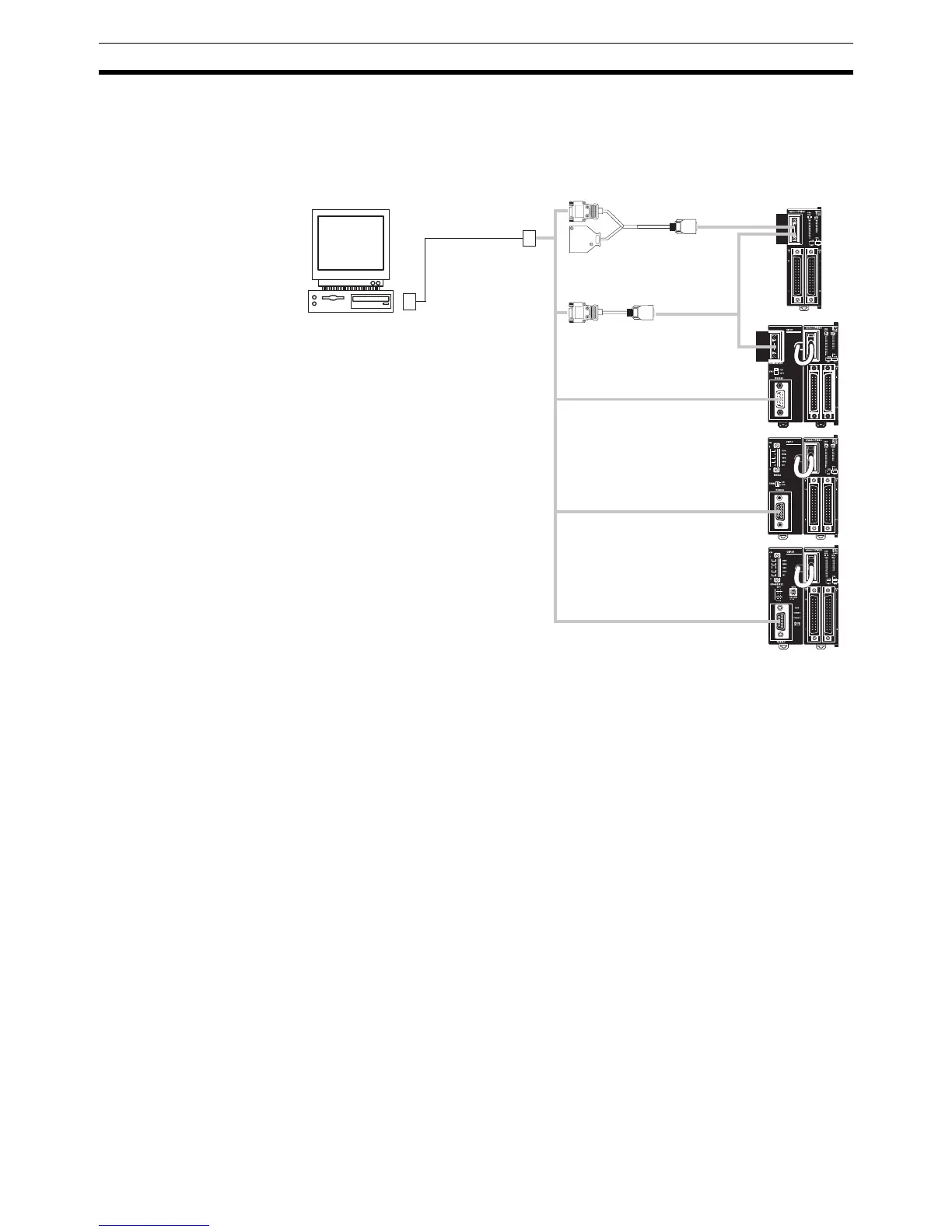

Connecting to the RS-232C Port
With an RS-232C port connection, communications are possible by using
SYSMAC WAY as the CX-Programmer's network type (i.e., serial communica-
tions mode). Tool bus communications are not possible.
IBM PC/AT
or
compatible
computer
Connecting Cable
XW2Z-200S-V (2 m)
XW2Z-500S-V (5 m)
RS-232C port (D-sub 9-pin)
Connecting Cable
CPM2C-CN111 (0.15 m)
Connecting Cable
CS1W-CN118 (0.1 m)
CPM2C CPU Unit
CPM2C-CIF01-V1
CPM2C-CIF11
CPM2C-CIF21
To Next Page
