Using a Programming Console Section 4-1
Press and hold the Shift Key to input a letter shown in the upper-left corner of
the key or the upper function of a key that has two functions. For example, the
CQM1-PRO01-E’s AR/HR Key can specify either the AR or HR Area; press
and release the Shift Key and then press the AR/HR Key to specify the AR
Area.
LCD display
Mode switch
Operation keys
Attached Connecting
Cable (2 m)

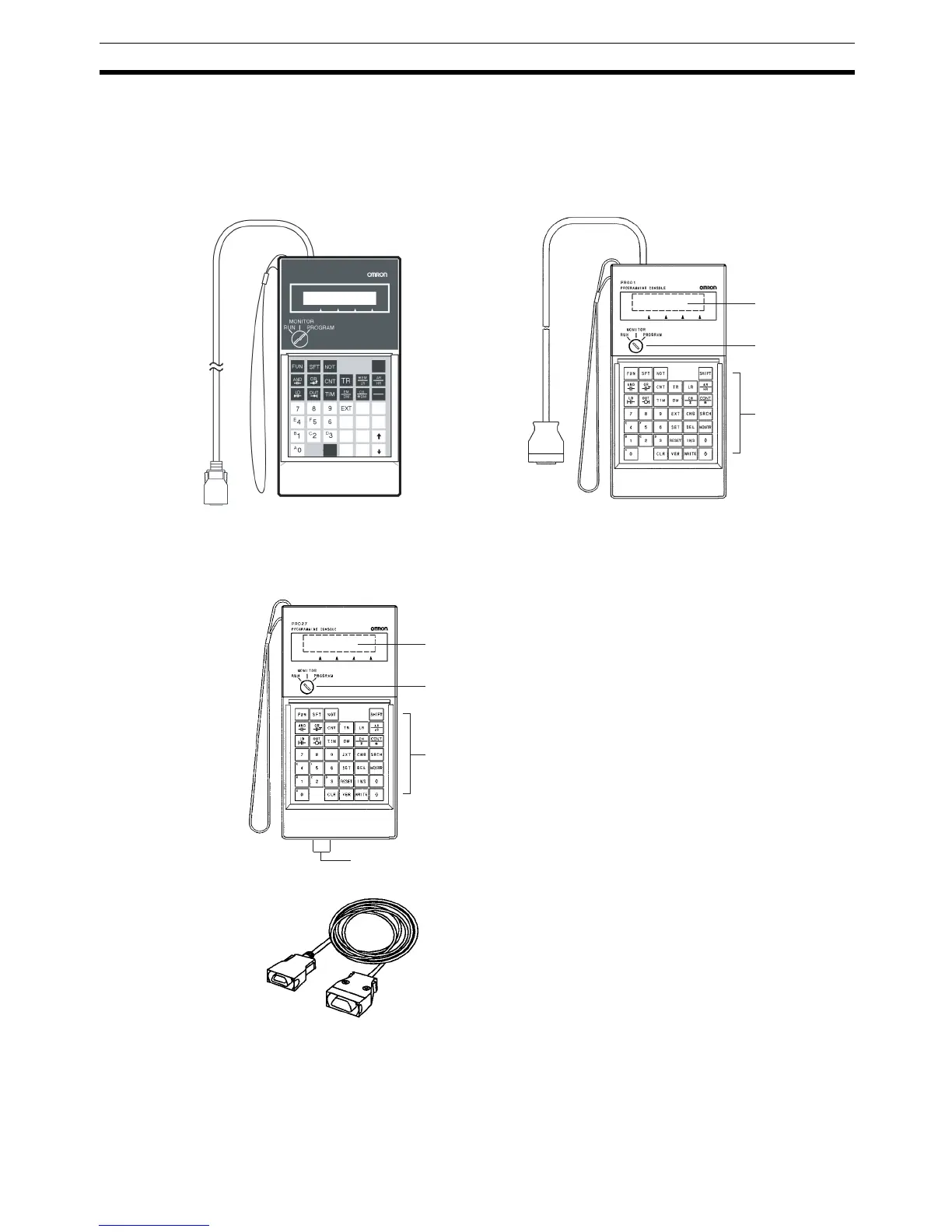

The CQM1H-PRO01-E can be
connected directly to the CPM2C.
CQM1-PRO01-E
CQM1H-PRO01-E
Attached Connecting
Cable (2 m)
SHIFT
CHG SRCH
MONTR
DEL
SET
RESET INS
WRITEVERCLR
CONT
#
Cassette recorded jack
(Cannot be used with the CPM2C).
Connecting Cables
C200H-CN222 (2 m)
C200H-CN422 (4 m)
CS1W-CN224 (2 m)
CS1W-CN624 (6 m)
LCD display
Mode switch
Operation keys
C200H-PRO27-E
