Using a Programming Console Section 4-1

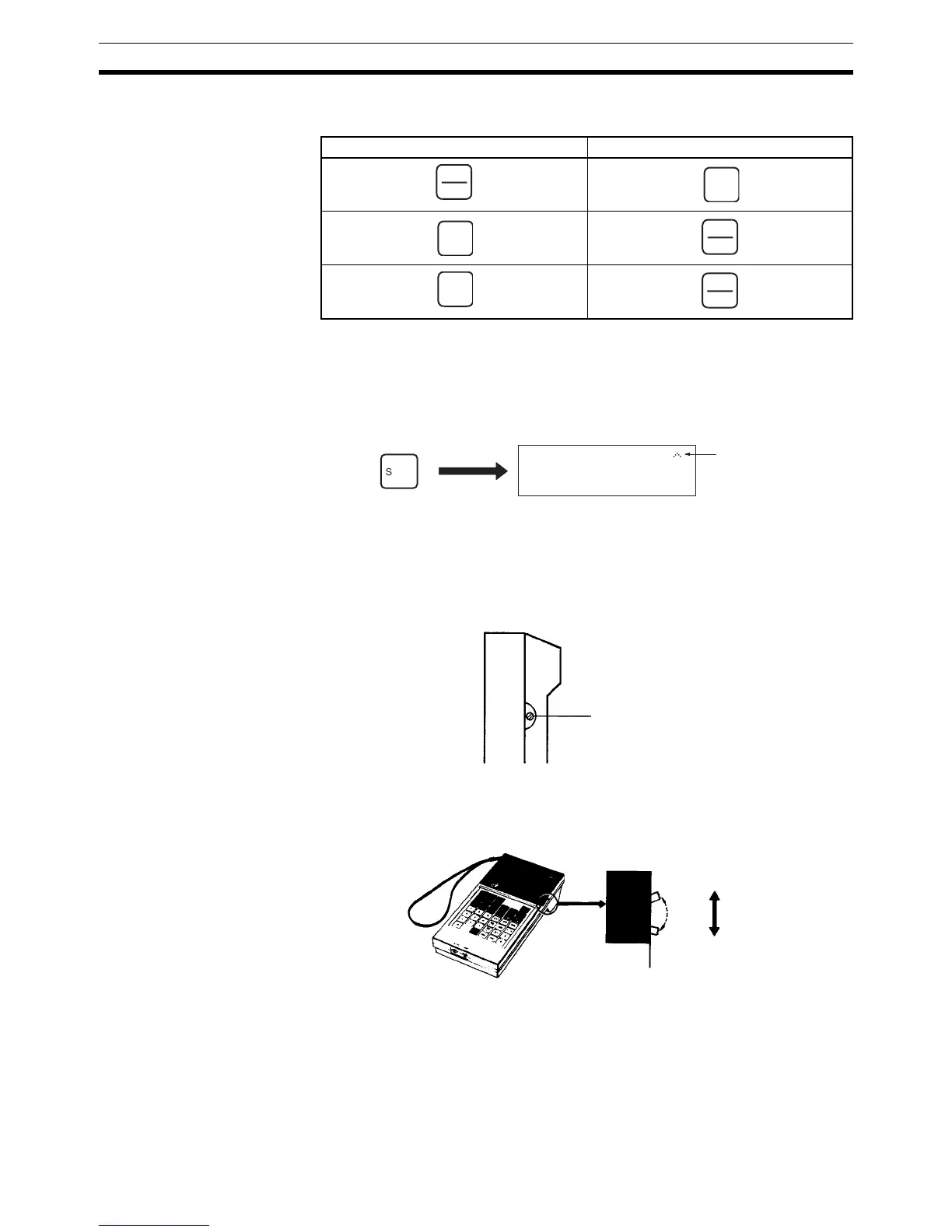

Different Keys The following keys are labeled differently on the CQM1-PRO01-E and the

C200H-PRO27-E, but the operation of the keys in each pair is identical.

Note To specify the AR area, use SHIFT and HR Keys for the C200H-PRO27-E and

use SHIFT and AR/HR Keys for the CQM1-PRO01-E.

A shift symbol will be displayed in the upper-right corner of the screen when

the Shift Key is pressed. The shift input can be cleared by pressing the Shift

Key again.

Mode Switch The mode switch controls the CPM2C’s operating mode. The key can be

removed when the switch is set to RUN or MONITOR but it cannot be

removed when the switch is set to PROGRAM.

Contrast Control The display contrast can be adjusted with the control on the right side of the

Programming Console.

Buzzer Volume The C200H-PRO27-E’s buzzer volume can be adjusted with the lever on the

right side of the Programming Console. The CQM1-PRO01-E’s buzzer vol-

ume cannot be adjusted.

Note The buzzer volume can be turned on and off with a key operation. See

4-2-6

Buzzer Operation

for details.

CQM1-PRO01-E Keys C200H-PRO27-E Keys

SET

PLAY

SET

RESET

REC

RESET

Shift input

symbol

SHIFT

Contrast control

Low volume

High volume

C200H-PRO27-E

Omron CPM2C User Manual
