Standard Models Appendix A

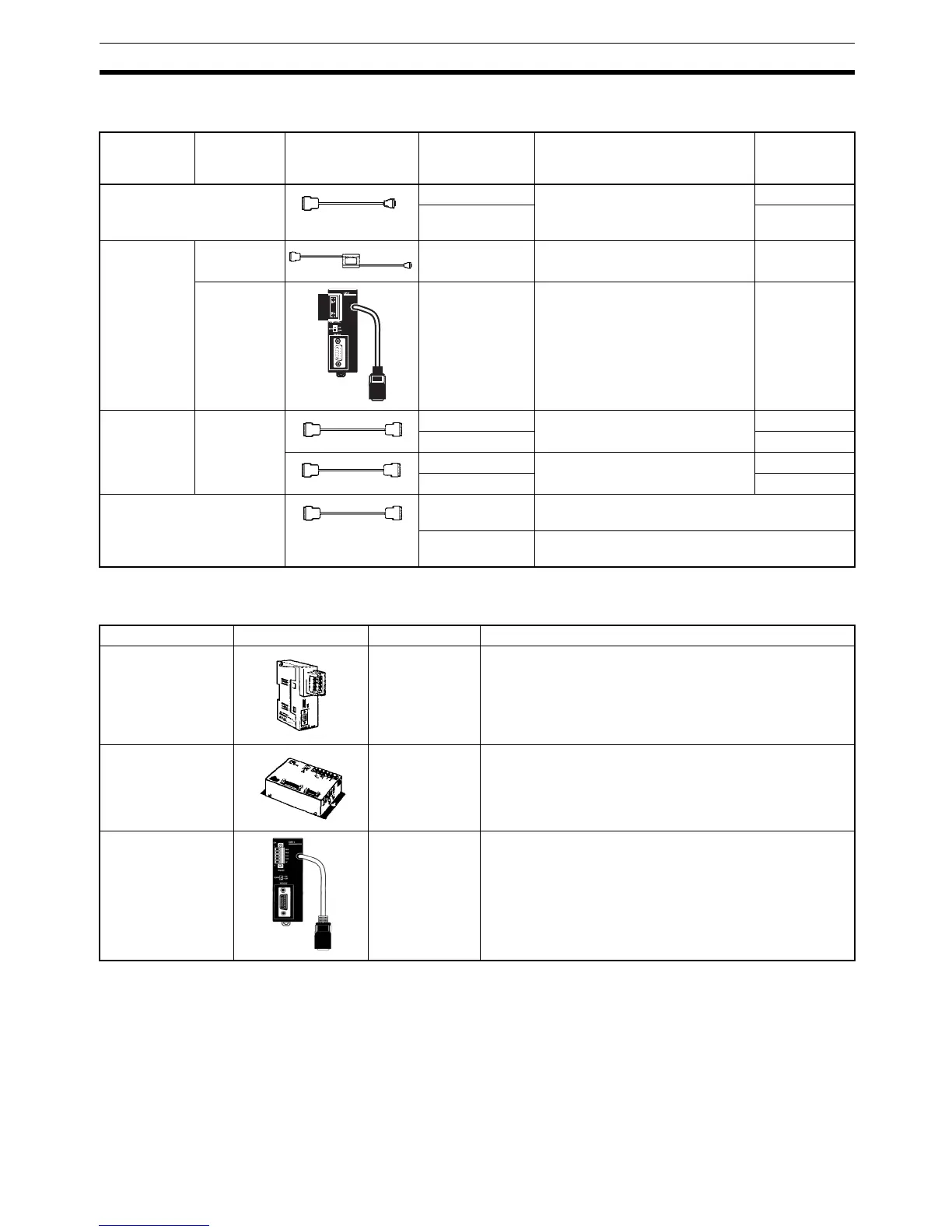

Adapters and Connecting Cables
Adapters (1:N Connections)
CPM2C com-
munications
port usage
Name Appearance Model number Comments Cable length
Personal Computer Con-
necting Cable
CS1W-CN226 Use to connect a personal com-
puter to the peripheral port.
D-sub, 9-pin
2 m
CS1W-CN626 6 m
Peripheral RS-232C
Adapter
CQM1-CIF02 For a 9-pin computer serial port 3.3 m
Peripheral/
RS-232C
Adapter Unit
CPM2C-CIF01-
V1
Use for peripheral port to RS-
232C conversion.
---
RS-232C RS-232C
Cable
XW2Z-200S For a 25-pin computer serial port 2 m
XW2Z-500S 5 m
XW2Z-200S-V For a 9-pin computer serial port 2 m
XW2Z-500S-V 5 m
RS-232C Cables
(For use with the NT-
AL001.)
XW2Z-070T-1 Use for CPM2C RS-232C port to NT-AL001 con-
nection. (70-cm cable)
XW2Z-070T-1 Use for CPM2C RS-232C port to NT-AL001 con-
nection. (2-m cable)
Name Appearance Model number Specifications
RS-422 Adapter NT-AL001 Use for CPM2C RS-232C port to RS-422A conversion.
Requires a 5-VDC, 150 mA power supply which is supplied
through the CPM2C connection.
(Can also be connected to a personal computer, but this
connection requires an external 5-VDC power supply.)
Link Adapter B500-AL004 Use for personal computer RS-232C port to RS-422A con-
version.
(Can also be connected to a CPM2C.)
RS-422/RS-232C
Adapter Unit
CPM2C-CIF11 Use for CPM2C peripheral port to RS-422 conversion.
