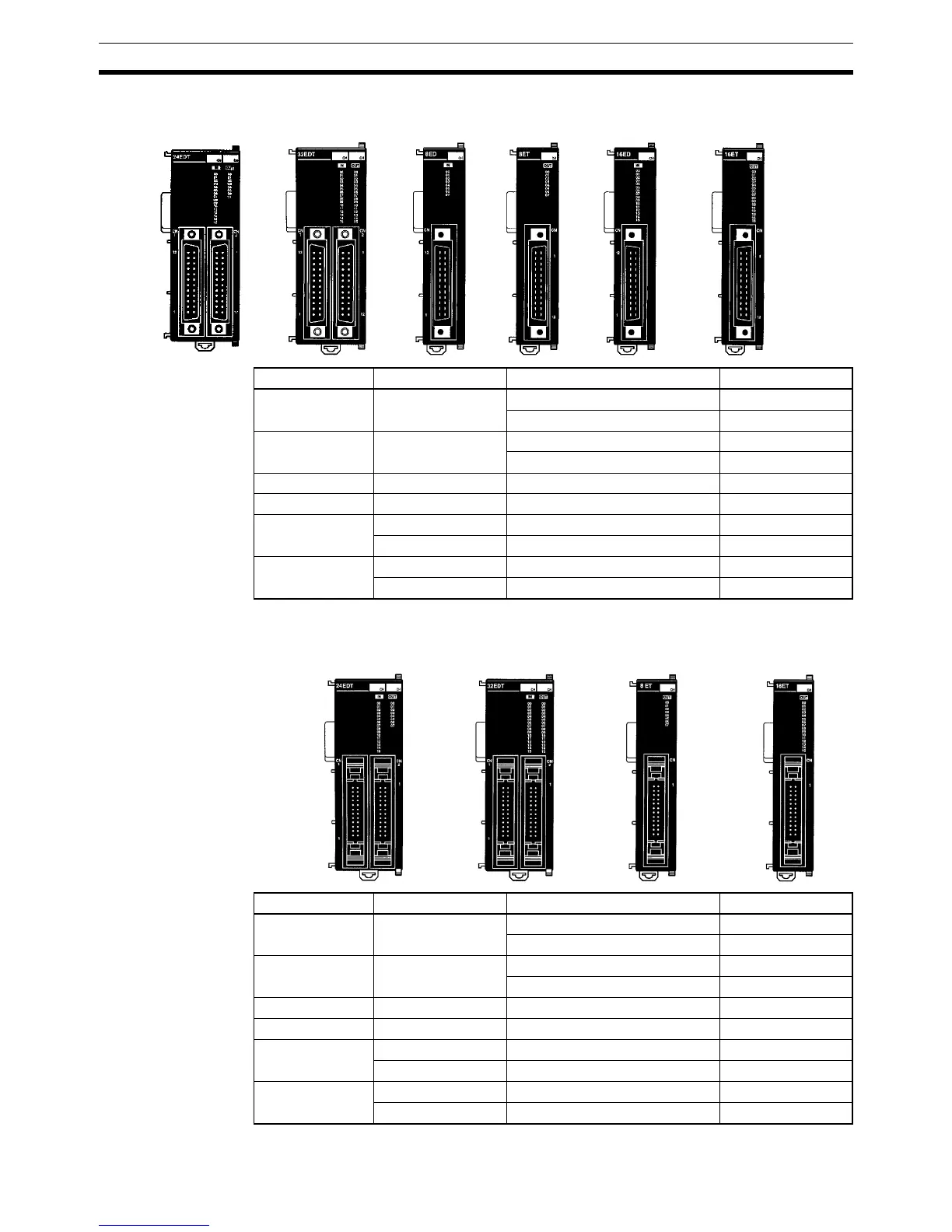

System Configurations Section 1-2
Units with Transistor Outputs via Fujitsu-compatible Connector
Units with Transistor Outputs via MIL Connector
Unit I/O Inputs Outputs Model
24 I/O points 16 inputs (24 VDC) 8 transistor outputs (sinking) CPM2C-24EDTC
8 transistor outputs (sourcing) CPM2C-24EDT1C
32 I/O points 16 inputs (24 VDC) 16 transistor outputs (sinking) CPM2C-32EDTC
16 transistor outputs (sourcing) CPM2C-32EDT1C
8 input points 8 inputs (24 VDC) --- CPM2C-8EDC
16 input points 16 inputs (24 VDC) --- CPM2C-16EDC
8 output points --- 8 transistor outputs (sinking) CPM2C-8ETC
--- 8 transistor outputs (sourcing) CPM2C-8ET1C
16 output points --- 16 transistor outputs (sinking) CPM2C-16ETC
--- 16 transistor outputs (sourcing) CPM2C-16ET1C
8 Output Points 16 Input Points 16 Output Points8 Input Points32 I/O Points24 I/O Points
16 Input or
16 Output Points
8 Input or
8 Output Points32 I/O Points24 I/O Points
Unit I/O Inputs Outputs Model
24 I/O points 16 inputs (24 VDC) 8 transistor outputs (sinking) CPM2C-24EDTM
8 transistor outputs (sourcing) CPM2C-24EDT1M
32 I/O points 16 inputs (24 VDC) 16 transistor outputs (sinking) CPM2C-32EDTM
16 transistor outputs (sourcing) CPM2C-32EDT1M
8 input points 8 inputs (24 VDC) --- CPM2C-8EDM
16 input points 16 inputs (24 VDC) --- CPM2C-16EDM
8 output points --- 8 transistor outputs (sinking) CPM2C-8ETM
--- 8 transistor outputs (sourcing) CPM2C-8ET1M
16 output points --- 16 transistor outputs (sinking) CPM2C-16ETM
--- 16 transistor outputs (sourcing) CPM2C-16ET1M
