Omron CPM2C

13

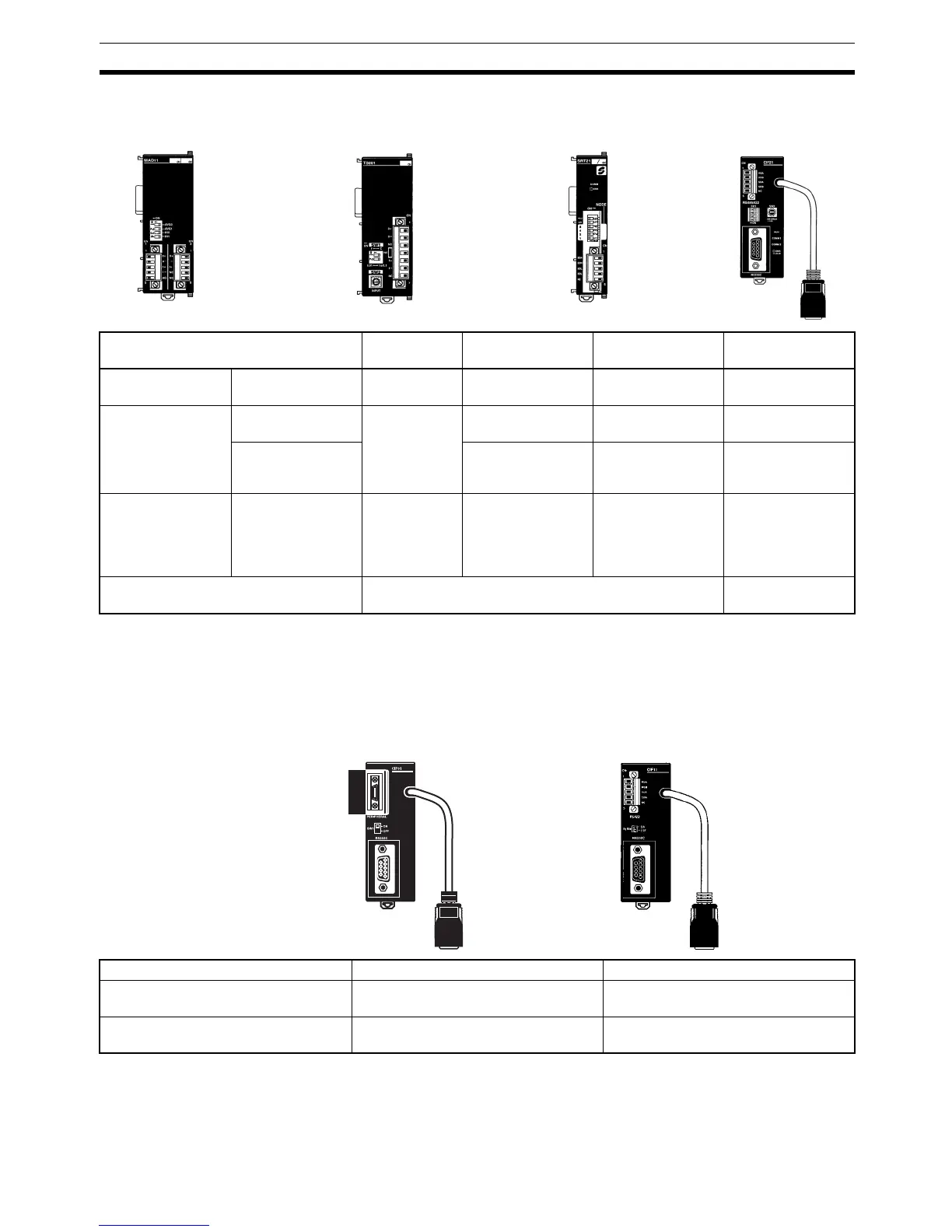

System Configurations Section 1-2
Expansion Units
Note 1. Do not use the CPM2C-CIF21 Simple Communications Unit with an Units
other than CPM2C Units.
2. The CPM2C-CIF21 Simple Communications Unit is due for release in De-
cember 2000.
Adapter Units
Note 1. The CPM2C-CIF01-V1 cannot be used with any PC model other than the
CPM2C. A CPM2C-CIF11 or another CPM2C-CIF01-V1 cannot be con-
nected onto a CPM2C-CIF01-V1.
Unit Max. number
of Units
Inputs Outputs Model
Analog I/O Unit 2 analog inputs
1 analog output
4 2 points, 2 words
allocated
1 point, 1 word allo-
cated
CPM2C-MAD11
Temperature Sen-
sor Unit
2 thermocouple
inputs
4 2 points, 2 words
allocated
--- CPM2C-TS001
2 platinum resis-
tance thermometer
inputs
2 points, 2 words
allocated
--- CPM2C-TS101
CompoBus/S I/O
Link Unit
8 input points and 8
output points for
the built-in outputs
and inputs of the
Master Unit
5 8 points, 1 word
allocated
(Inputs from the
Master)
8 points, 1 word
allocated
(Outputs to the
Master)
CPM2C-SRT21
Simple Communications Unit
(See notes 1 and 2.)
--- CPM2C-CIF21
CPM2C-MAD11
Analog I/O Unit
CPM2C-TS001
Temperature Sensor Unit
CPM2C-SRT21
CompoBus/S I/O Link Unit
CPM2C-CIF21
Simple Communications Unit
Peripheral/RS-232C Adapter Unit RS-422/232C Adapter Uni
t
Unit Conversion Model
Peripheral/RS-232C Adapter Unit CPU Unit’s communications port →
Peripheral port + RS-232C port
CPM2C-CIF01-V1
RS-422/RS-232C Adapter Unit CPU Unit’s communications port →
RS422 port + RS-232C port
CPM2C-CIF11
