Omron EJ1 User Manual

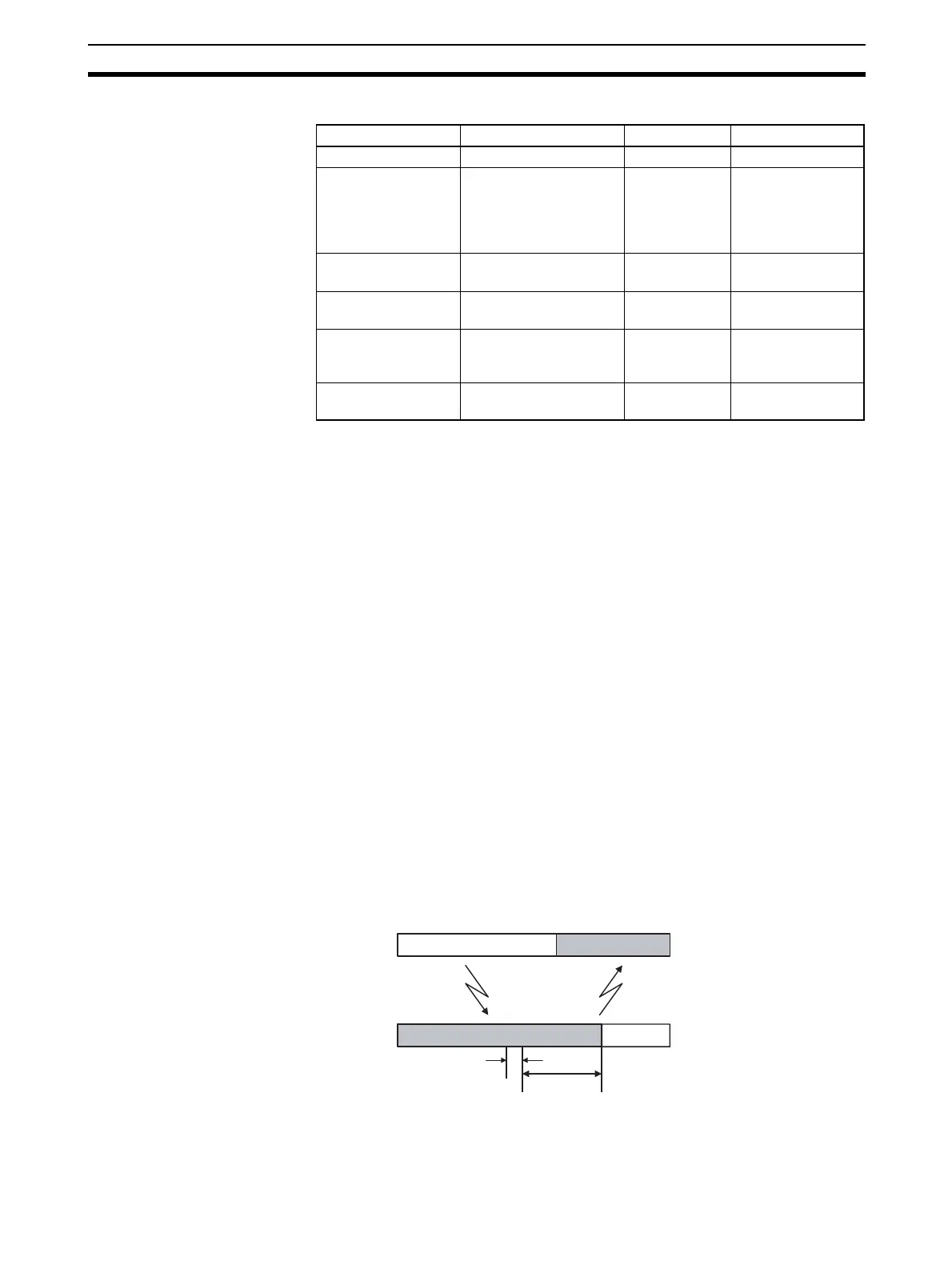

143
Communications Settings
Section 6-1
• EDU (Port B)
6-1-2 Unit Number Setting
The unit number is set first.
The setting is made on SW1 and SW2 on the front of the EJ1.
For information on the setting method, refer to 1-1-4 Using Setting Switches.
6-1-3 Other Communications Settings
The communications baud rate, communications data length, communica-
tions stop bits, communications parity, and send data wait time are set using
communications.
Use communications with the default communications settings to change any
of these settings.
Refer to 6-4-2 Write to Variable Area for information on how to change set-
tings.
When the above settings are changed, the changes will not be enabled until
the EJ1 is reset or the power is cycled.
6-1-4 Send Data Wait Time
The send data wait time setting is used to adjust the time the host computer
takes to switch from sending to receiving.
Specifically, the send data wait time for the EJ1 is the time from after a
response has been created after data has been received until the EJ1
switches to sending.
The setting of the Send Wait Time parameter can be shortened to reduce the
communications time at the host device as long as there are no problems.
Parameter name Setting range Default Setting method
Unit number 00 to 63 01 SW1/SW2
Port B communica-
tions baud rate
3: 9.6
4:19.2
5: 38.4
6: 57.6
7: 115.2 (kbps)
3: 9.6 (kbps) Communications
Port B communica-
tions data length
0: 7
1: 8 (bit)
0: 7 (bit) Communications
Port B communica-
tions stop bits
0: 1
1: 2 (bit)
1: 2 (bit) Communications
Port B communica-
tions parity
0: None
1: Even
2: Odd (bit)
1: Even (bit) Communications
Port B send data
wait time
0 to 99 (ms) 5 (ms) Communications
Host device Send status
Send
Send
Receive
Receive
Send status
Receive status
Receive status
Response created
Send data wait time
EJ1
