Controlling G3ZA Controllers Connected to Output Devices Section 3-4
3-4 Controlling G3ZA Controllers Connected to Output
Devices
3-4-1 Application

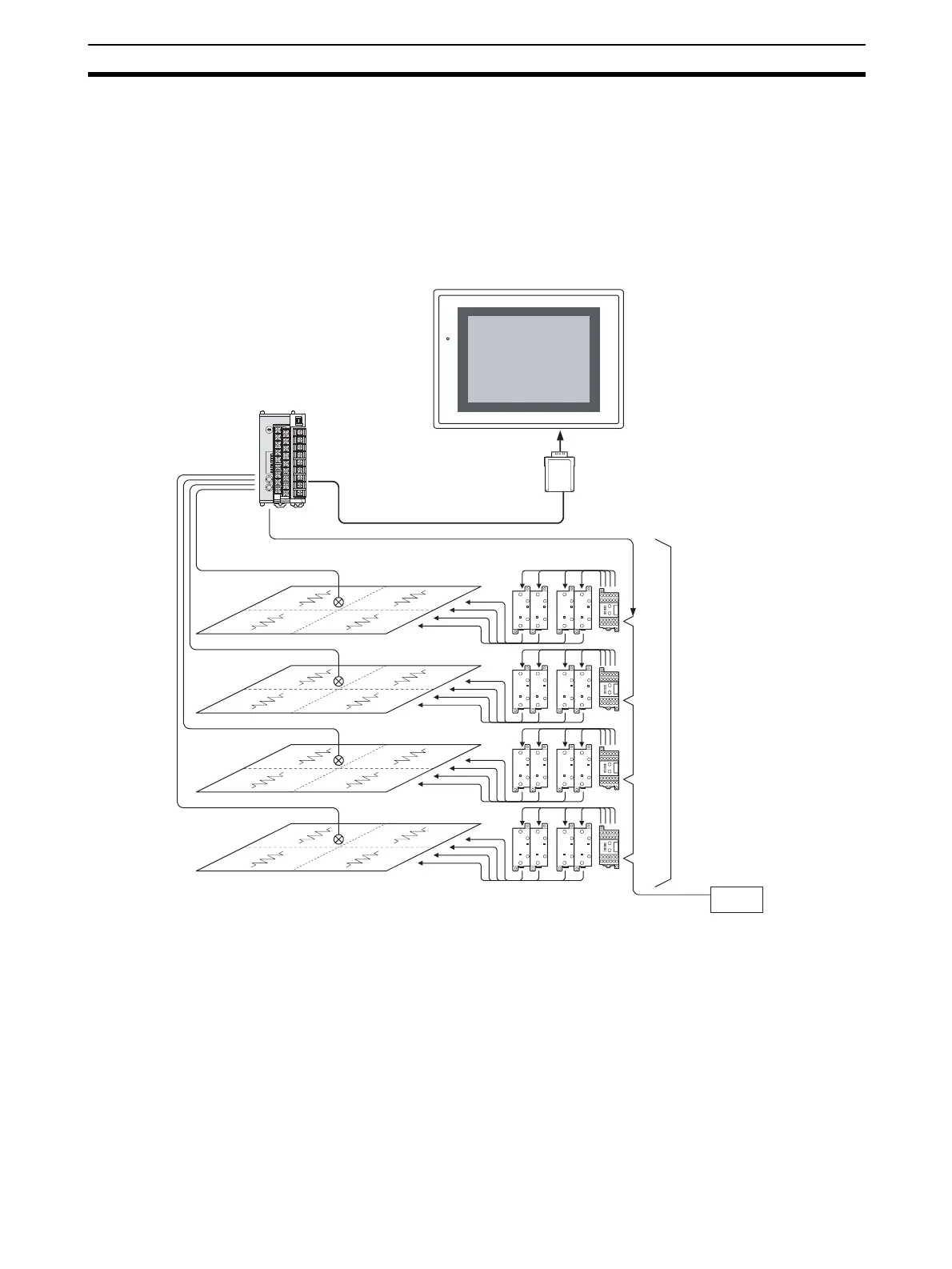

In this example configuration, G3ZA Multi-channel Power Controllers are used
to control the temperature in a 4-zone heater plate with a single control loop
by applying a fixed coefficient (slope) to the results of the EJ1's PID calcula-
tions.
• Up to eight G3ZA Controllers can be connected to the EJ1@-TC4 using
the special communications ports. It is not necessary to create a program
for communications between the EJ1 and G3ZA.
• Also, the G3ZA's internal parameters can be set to split a single EJ1
channel's control output into 4 branches (with the G3ZA-4H@03-FLK) or 8
branches (with the G3ZA-8A@03-FLK).
• A slope (coefficient) and offset value can be set for each branch output.
Terminating
resistance
CJ1W-CIF11
RS-422A Converter
NS5
Programmable Terminal
RUN
EJ1 channel 1 Temperature Sensor
Up to 8 Units
G3PA
Power Solid-
state Relays
G3ZA
Multi-channel
Power Controllers
MV 11
MV 12
MV 13
MV 14
MV 21
MV 22
MV 23
MV 24
MV 31
MV 32
MV 33
MV 34
Heater plate
Heater plate
Heater plate
Heater plate
RS-485
EJ1
TC4 + EDU
EJ1 channel 2 Temperature Sensor
EJ1 channel 3 Temperature Sensor
EJ1 channel 4 Temperature Sensor
MV 41
MV 42
MV 43
MV 44
CN1
EJ1C-CBLA050 Cable
