Minimum Configuration for Control Section 3-1
3-1 Minimum Configuration for Control
3-1-1 Application

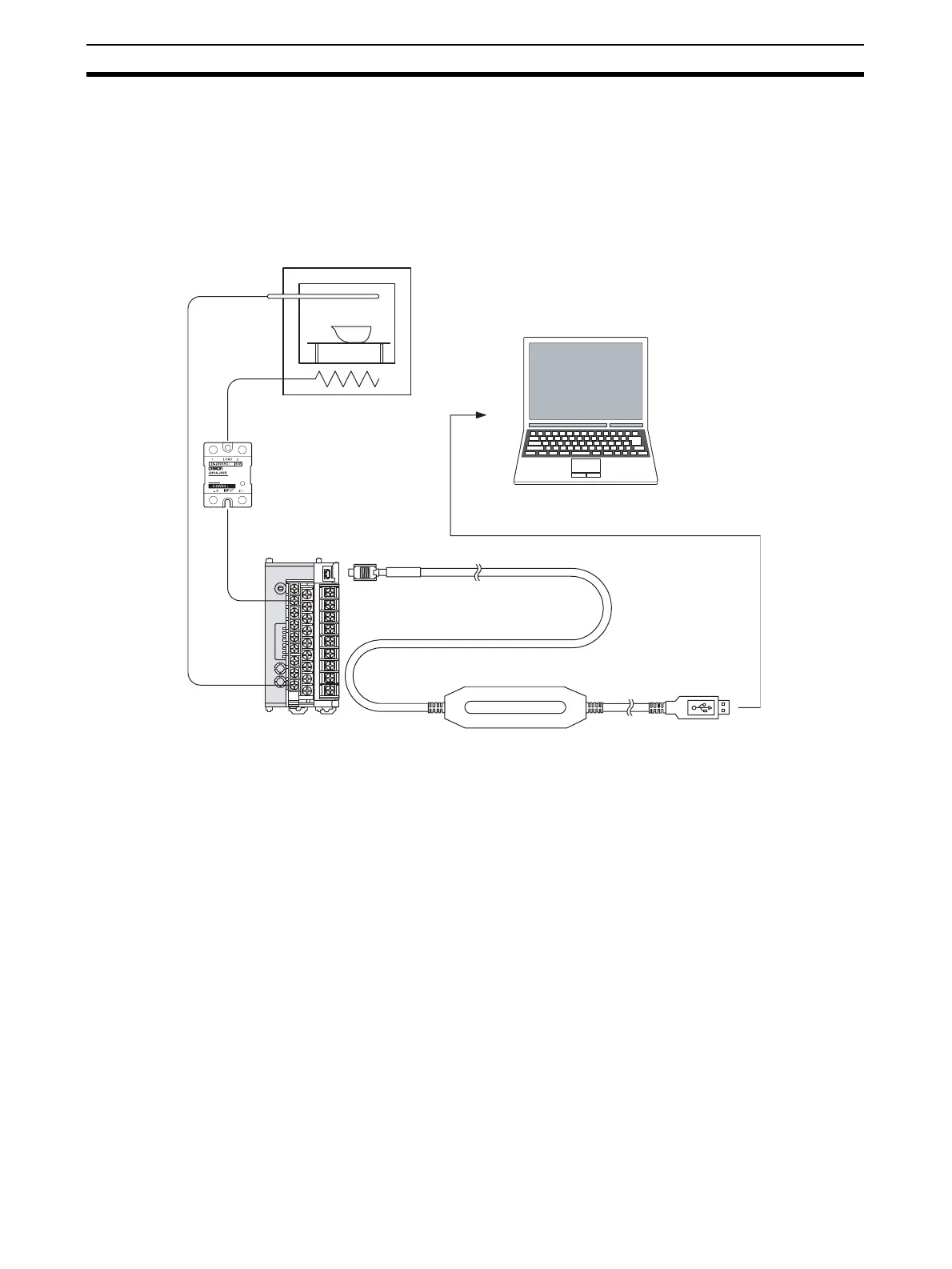

This section shows an example configuration for a small electric oven and
explains how to set up and control the system using the EST2-2C-MV3 CX-
Thermo Support Software.
• The EST2-2C-MV3 CX-Thermo Support Software can be used to set EJ1
parameters from the personal computer.
EJ1
TC2 EDU
G3NA
Solid State Relay
E58-CIFQ1
Temperature
Sensor
Heater
Small electric oven
Computer
Port A connector
