59
Setting Output Specifications Section 4-2
• When using both this function and autotuning, always set this function
before performing autotuning. If this function is set after autotuning, control
performance may deteriorate.
• When using this function, set the following parameters to their default set-
tings: Output Scaling Upper Limit 1 to 4, Output Scaling Lower Limit 1 to 4,
and Decimal Point C1 to C4. If these parameters are not set to their
defaults, the Output ON Scheduling function will not operate properly.
• This function will also be applied to manual outputs, outputs during errors,
and outputs while stopped, so these outputs may be lower than their set val-
ues.
• When using the Output ON Scheduling function, all of the Unit's outputs will
operate with the OUT1 control period.

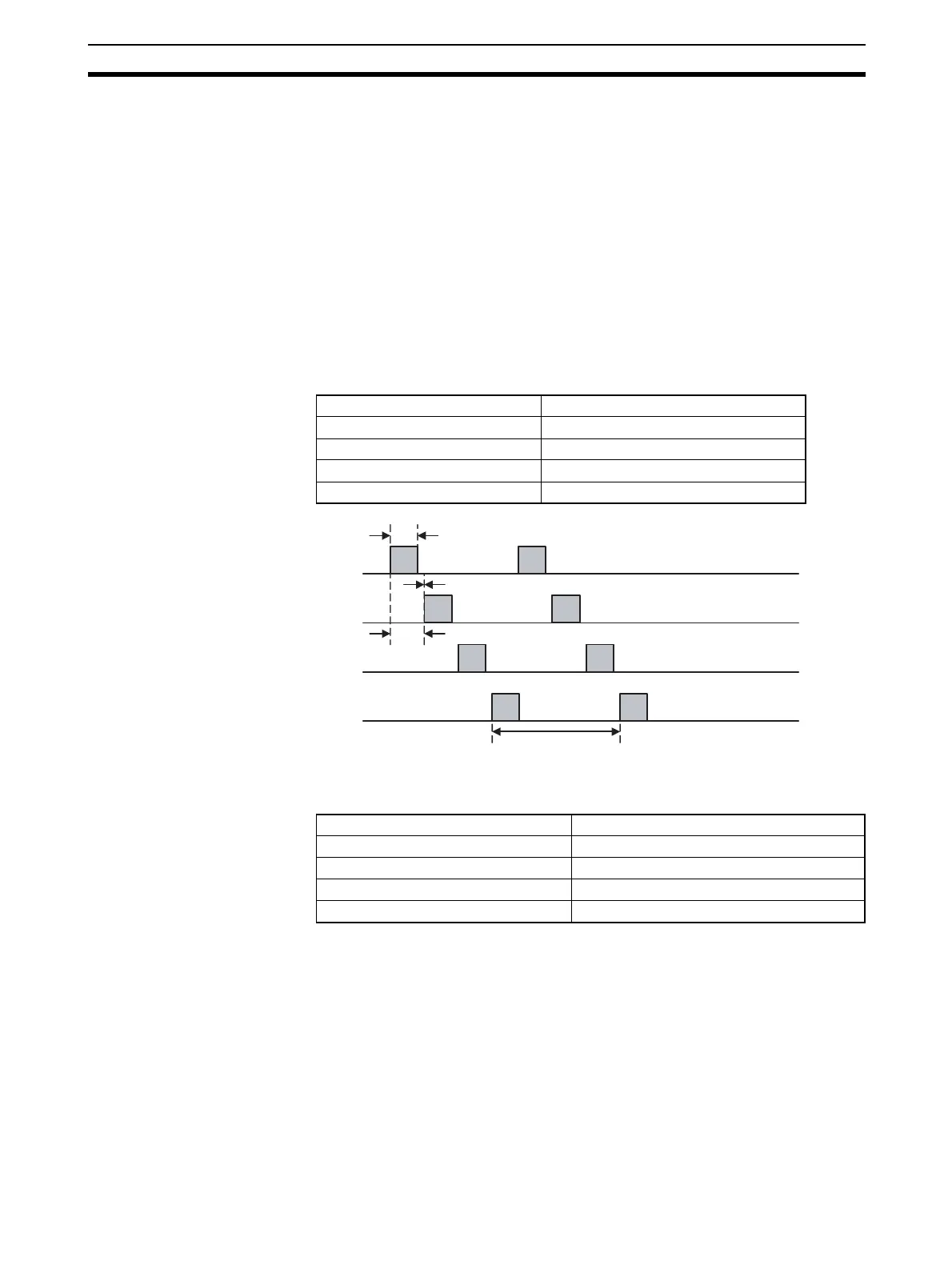

Example 1 Delay between Outputs = 0 ms
Example 2 Delay between Outputs = 1 s
Unit TC4
Control period 10 s
Output ON Scheduling Method 1/4 (Limit to 25% of the maximum MV.)
Delay between Outputs 0 ms
MV for all channels 20%
Unit TC4
Control period 10 s
Output ON Scheduling Method 1/4 (Limit to 25% of the maximum MV.)
Delay between Outputs 1,000 ms = 1 s
MV for all channels 20%
OUT1
2 s=10 s × 20%
Delay between Outputs: 0 ms
2.5 s=10 s × 25%
Control period: 10 s
OUT2
OUT3
OUT4
To Next Page
