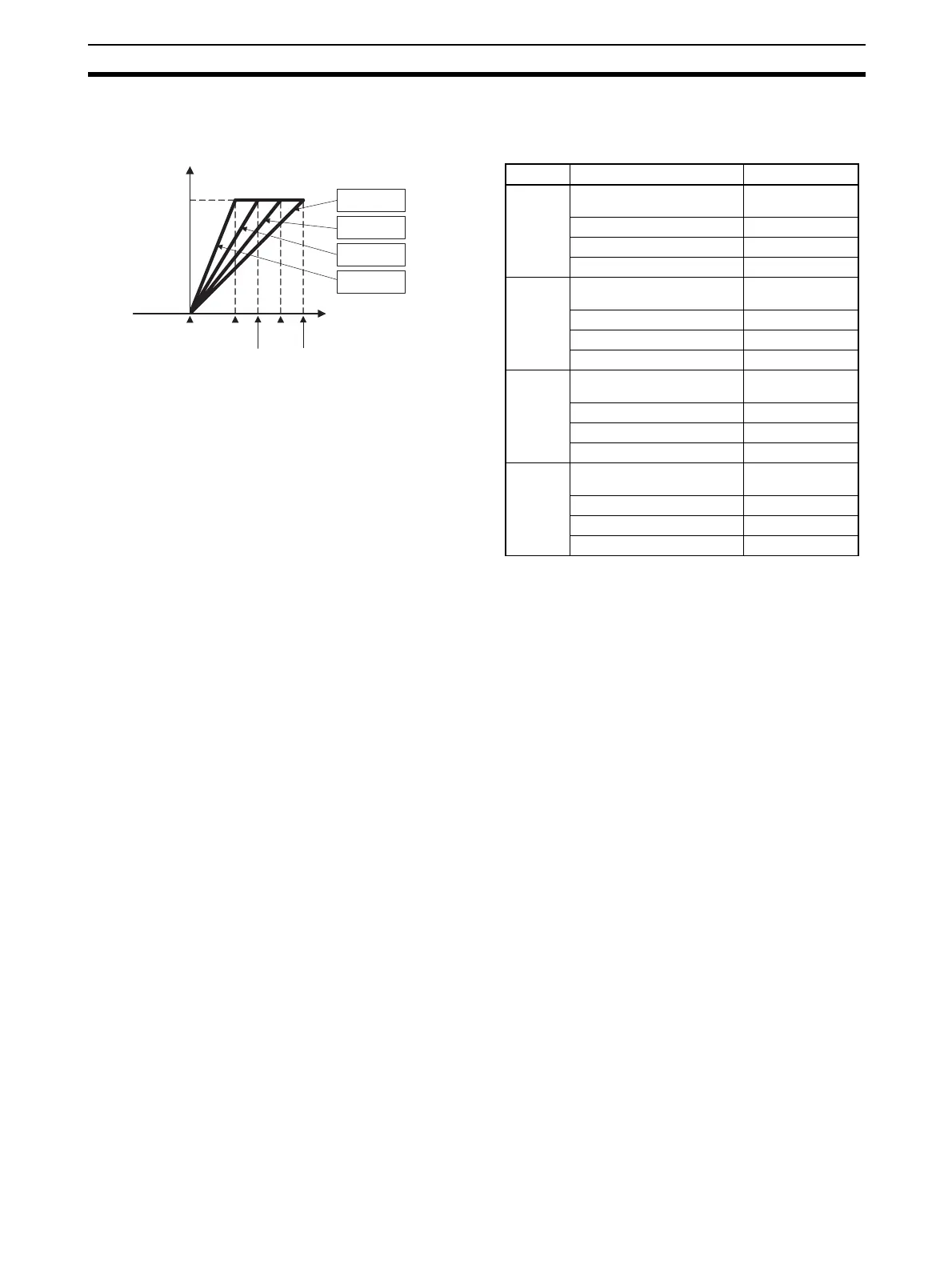

Setting Output Specifications Section 4-2
Example: Making All TC4 Outputs into CH1 Control Output (Heating) with Dif-
ferent Slopes
0.0%
100.0%
100.0% Output 1
80.0%
Actual output
Set value of control
output assignment
40.0%
60.0%
Output 2
Output 3
Output 4
Output Parameter name Set value
Output 1 Control output 1 assignment CH1 Control out-
put (heating)
Output Scaling Upper Limit 1 100
Output Scaling Lower Limit 1 0
Decimal Point C1 0
Output 2 Control output 2 assignment CH1 Control out-
put (heating)
Output Scaling Upper Limit 2 80
Output Scaling Lower Limit 2 0
Decimal Point C2 0
Output 3 Control output 3 assignment CH1 Control out-
put (heating)
Output Scaling Upper Limit 3 60
Output Scaling Lower Limit 3 0
Decimal Point C3 0
Output 4 Control output 4 assignment CH1 Control out-
put (heating)
Output Scaling Upper Limit 4 40
Output Scaling Lower Limit 4 0
Decimal Point C4 0
