Omron F3SJ Series User Manual

121
F3SJ-A
User’s Manual
Chapter4 Series Connection
Wiring/Installation
E

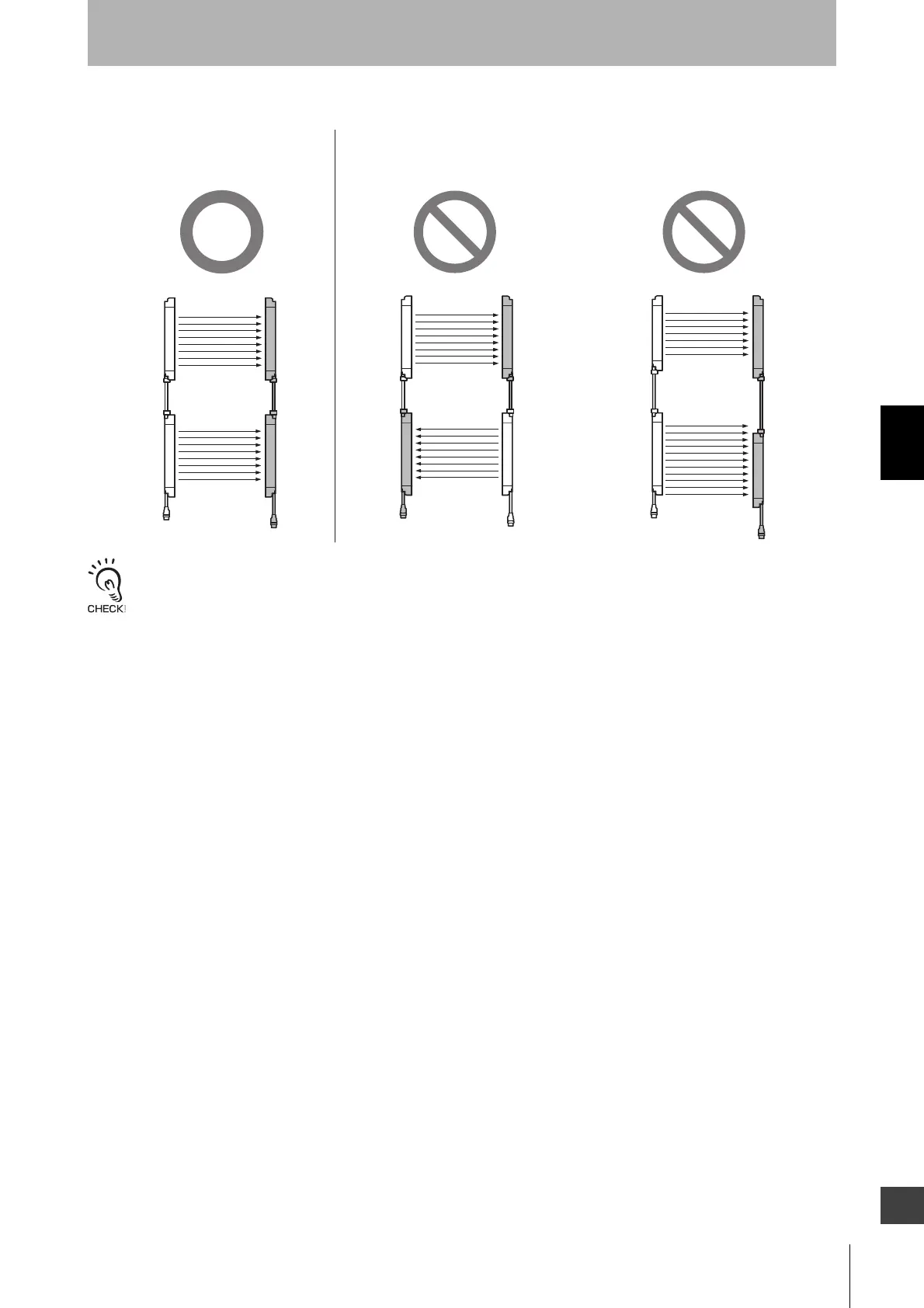

Connect an emitter to another emitter, and a receiver to another receiver, as shown below.
If caps and series connection cables are not connected properly, the F3SJ enters lockout (when power is turned ON).
Secondary
sensor 1
(Emitter)
Secondary
sensor 1
(Receiver)
Primary
sensor
(Emitter)
Primary
sensor
(Receiver)
Secondary
sensor 1
(Emitter )
Secondary
sensor 1
(Receiver)
Primary
sensor
(Receiver)
Primary
sensor
(Emitter)
Primary
sensor 1
(Emitter)
Secondary
sensor 1
(Receiver)
Secondary
sensor
(Emitter)
Primary
sensor
(Receiver)
Do not series-connect an emitter and receiver.
They will enter lockout state.
Do not face different models of emitters and
receivers toward each other. They will enter
lockout state or will be unable to detect objects.

Omron F3SJ Series Specifications

General

Type	Safety Light Curtain
Safety Category	Category 4
Protection Rating	IP67
SIL	SIL3
Operating Temperature	-10°C to +55°C
Detection Method	Infrared
Resolution	14 mm
IP Rating	IP67
Certification	CE
Power Supply Voltage	24 VDC ±10%
