43
F3SJ-A
User’s Manual
Chapter2 Muting System
System Configuration and Functions
E

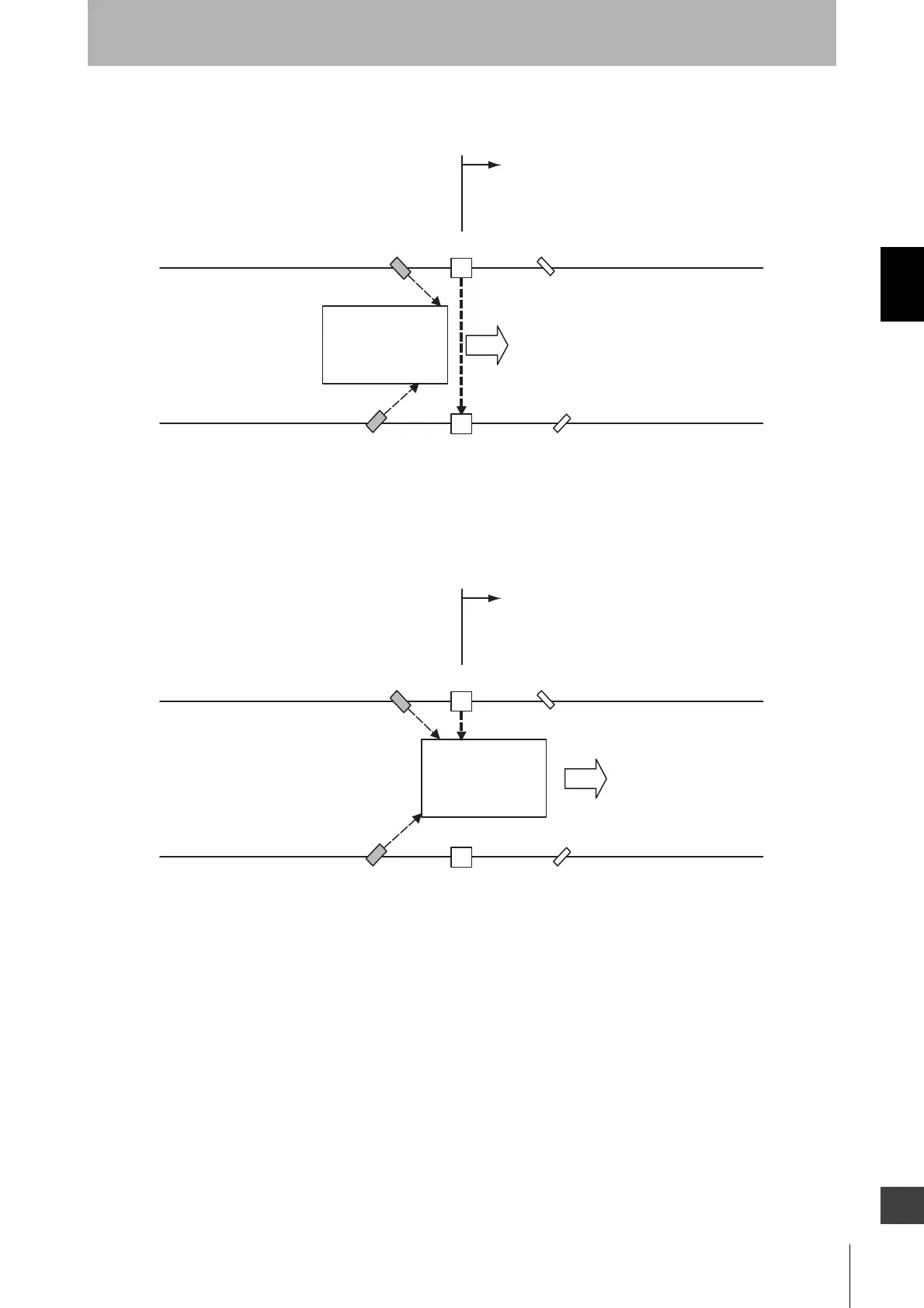

2. The muting sensor outputs are turned ON (muting inputs are LOW) and the safety function of the F3SJ
is disabled.
When muting sensors A1 and B1 are turned ON in this order, the muting function is enabled. In this
state, the safety function of the F3SJ is disabled.
3. The muting sensor outputs are turned ON (muting inputs are LOW) and the safety function of the F3SJ
is disabled.
The F3SJ is blocked but the safety function is disabled by the muting function, and safety outputs 1
and 2 are turned ON.
F3SJ
F3SJ
B1
A1
Workpiece
Hazardous zone
Reflector
Reflector
F3SJ
F3SJ
B1
A1
Workpiece
Reflector
Reflector
Hazardous zone

Omron F3SJ Series Specifications

General

Type	Safety Light Curtain
Safety Category	Category 4
Protection Rating	IP67
SIL	SIL3
Operating Temperature	-10°C to +55°C
Detection Method	Infrared
Resolution	14 mm
IP Rating	IP67
Certification	CE
Power Supply Voltage	24 VDC ±10%
