F3SJ-A
User’s Manual
Chapter3 Setting Adjusted to Application
What can be done by the setting tool
E

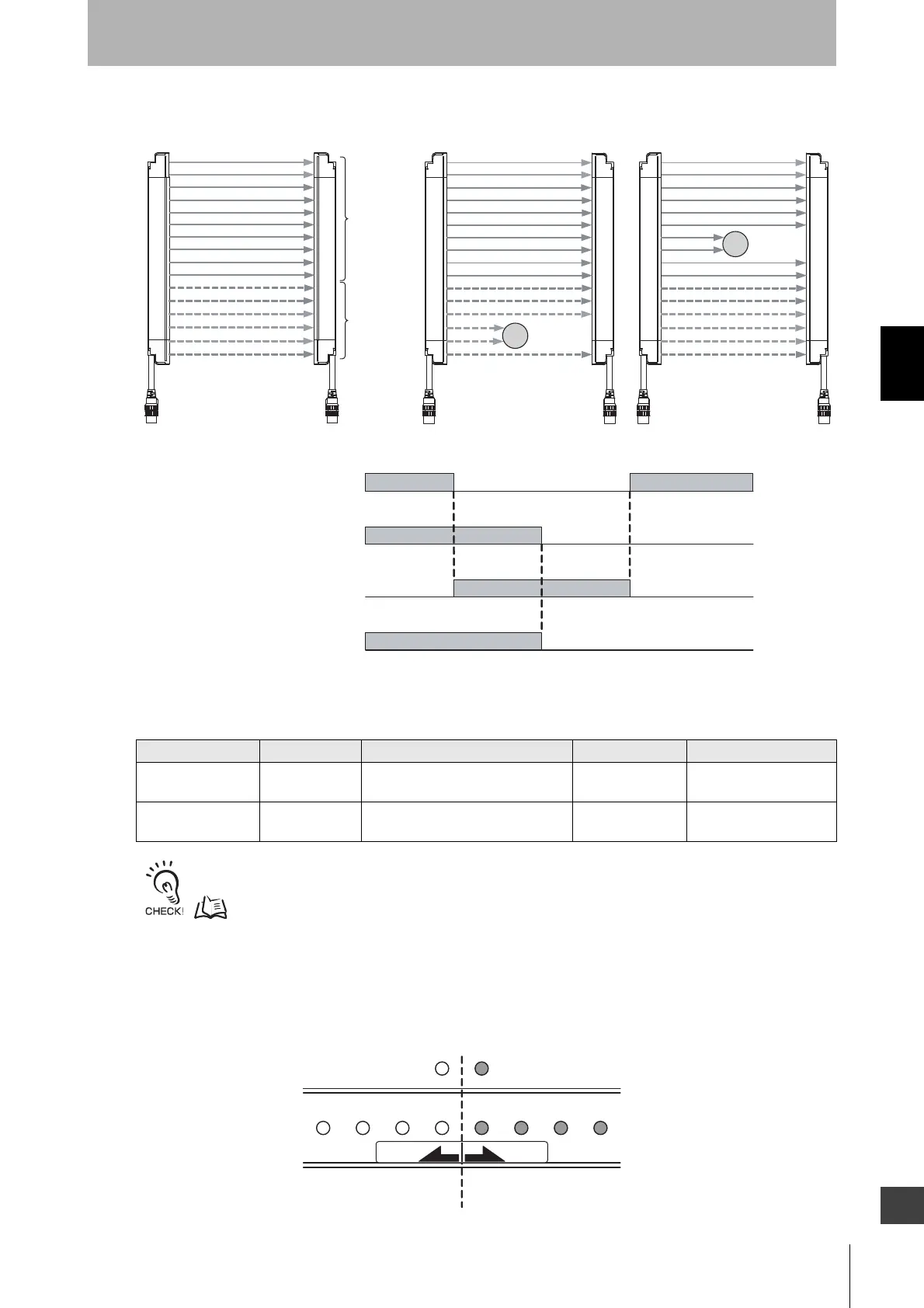

Setting Example: Configuring a warning zone information for auxiliary output 1
Reverse Output: None
 Setting Change
Configure for each CH in case of a series connection.
- If you need output of warning zone’s incidence/interruption status, set output mode of auxiliary output or external
indicator output to warning zone information.
- Auxiliary Output (Non-Safety Output) p.94
- External Indicator Output (Non-Safety Output) p.98
- A warning zone cannot overlap with muting, fixed blanking, nor floating blanking zones.
 Warning Zone Label
When a warning zone is configured, you must attach labels that indicate a border between normal
detection zone and warning zone.
Function Initial Setting Available Setup Item Setting Console PC Tool for F3SJ
Warning Zone
Function
Disable Disabled/Enabled from upper/
Enabled from lower

Warning Zone
Setting
0 0 to Number of Beams

Warning Zone
Detection Zone
Figure 6
Figure 7
Figure 8
Safety output ON
Warning zone output OFF
Safety output ON
Warning zone output ON
Safety output OFF
Warning zone output OFF
F3SJ Unblocked/Blocked
(Warning zone only)
F3SJ Unblocked/Blocked
(Other than warning zone)
Unblocked
Blocked
Auxiliary output 1
(warning zone)
ON
OFF
Unblocked
Blocked
Safety output
ON
OFF
Warning ZoneDetection Zone
Normal beam Warning beam
DETECTI ON
ZONE
WARNI NG
ZONE
