2-3-7 Wiring for Digital Operator
In addition to the standard Digital Operator, this inverter can be operated via the optional Digital Opera-
tor (Model: 3G3AX-OP01).
To use the 3G3AX-OP01, you need the optional Digital Operator Cable. Model: 3G3AX-CAJOP300-EE
(3 m). Exceeding 3 m may result in malfunction.
Multi-function Compact Inverter
(Model: 3G3MX2-EV2)
2-3-8 Compliance with EU Directives and UKCA
This section provides conditions that must be met for compliance with EU Directives and European
standards.
Take measures to meet the conditions shown here for the entire system as well as peripheral equip-
ment. For the system that incorporates this inverter, perform the final compliance verification separately
on the whole system.
OMRON declares that 3G3MX2 Series type EV2 Inverter conform with the
requirements of the following EU Directive
EMC Directive 2014/30/EU
Machinery Directive 2006/42/EC
OMRON declares that 3G3MX2 Series type EV2 Inverter conform with the
requirements of the following UK legislation
(2016 No.1091) Electromagnetic Compatibility Regulations
(2008 No.1597) Supply of Machinery (Safety) Regulations
UKCA Declaration of Conformity
2
2-3 Wiring

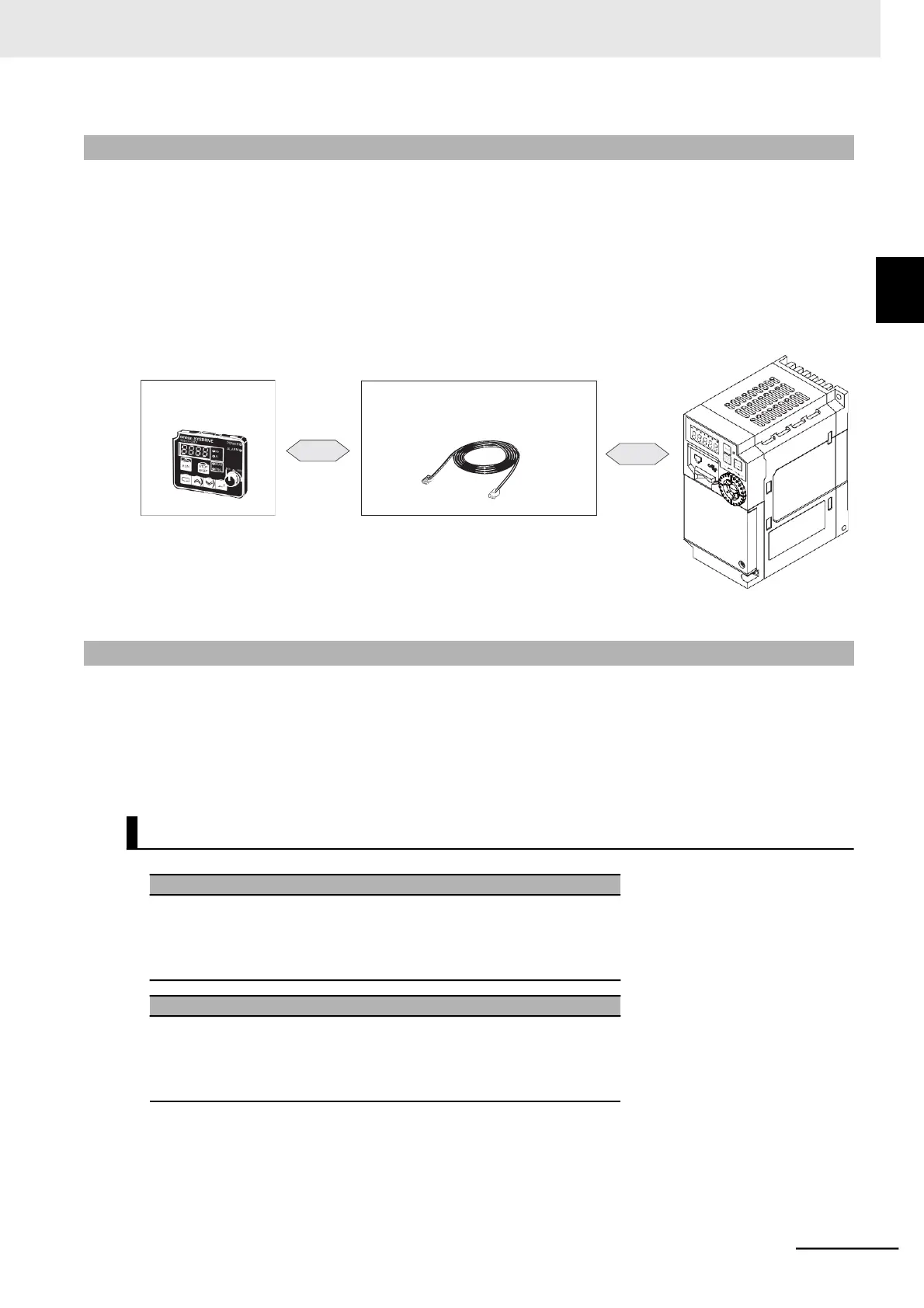

2-3-7 Wiring for Digital Operator
Digital Operator
(Model: 3G3AX-OP01)
Digital Operator Cable
Model: 3G3AX-CAJOP300-EE (3 m)
Directives and Legislation
EU Declaration of Conformity
